Siemens 6ES7134-6FF00-0AA1

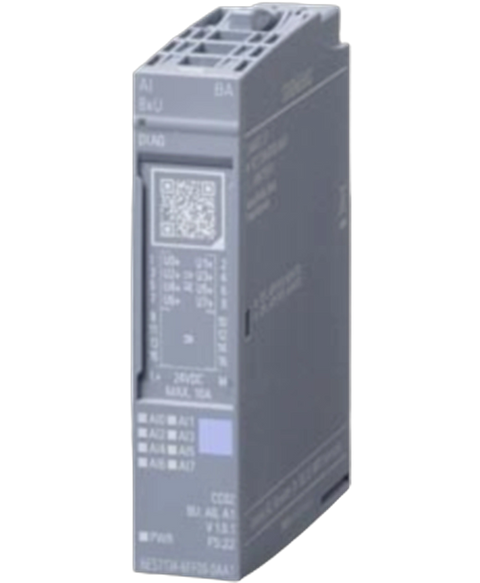

Siemens 6ES7134-6FF00-0AA1 analog input module, 8-channel, ET200SP.
This Siemens 6ES7134-6FF00-0AA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805676417.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$467.17
(inc. GST)
In Stock
| Product type designation | AI 8xU BA |
| HW functional status | FS23 or higher |
| Firmware version | V2.0.0 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC02 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Measuring range scalable | No |
| STEP 7 TIA Portal configurable/integrated from version | TIA Portal V21 |
| STEP 7 configurable/integrated from version | V5.7 SP3 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.45 |
| Oversampling | No |
| MSI | No |
| Reparameterization possible in RUN | No |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 25 mA; rated voltage, all channels active, no load |
| Current consumption, max. | 25 mA; worst case voltage, all channels active, max. load, no derating |
| Power loss, typ. | 0.7 W; rated voltage, 50 % active channels, 50 % of range |
| Address space per module, max. | 16 byte |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | type B |
| 1-wire connection | BU type A0, A1 |
| 2-wire connection | BU type A0, A1 |
| Number of analog inputs | 8; Single-ended |
| For voltage measurement | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| Cycle time (all channels), min. | 1 ms; per channel |
| 0 to +10 V | Yes; 15 bit |
| — Input resistance (0 to 10 V) | 100 kΩ |
| -10 V to +10 V | Yes; 16 bit incl. sign |
| — Input resistance (-10 V to +10 V) | 100 kΩ |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Integration time, parameterizable | Yes |
| Interference voltage suppression for interference frequency f1 in Hz | 16.67 / 50 / 60 / 4 800 (16.67 / 50 / 60) |
| Conversion time (per channel) | 180 / 60 / 50 / 0.625 (67.5 / 22.5 / 18.75) ms |
| Number of smoothing levels | 4 |
| parameterizable | Yes |
| Step: None | Yes |
| Step: low | Yes; 4x smoothing |
| Step: Medium | Yes; 8x smoothing |
| Step: High | Yes; 16x smoothing |
| for voltage measurement | Yes |
| for current measurement as 4-wire transducer | No |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| Voltage, relative to input range, (+/-) | 0.5 %0.3 % |
| Series mode interference (peak value of interference < rated value of input range), min. | 70 dB; With conversion time 67.5 / 22.5 / 18.75 ms: 40 dB |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Limit value alarm | No |
| Monitoring the supply voltage | Yes |
| Wire-break | No |
| Short-circuit | No |
| Group error | Yes |
| Overflow/underflow | Yes; Module-wise |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 9.32 kg |
| — global warming potential, (during production) [CO2 eq] | 4.97 kg |
| — global warming potential, (during operation) [CO2 eq] | 4.79 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.449 kg |
| signed firmware update | Yes; firmware V2.0.0 or higher |
| safely removing data | Yes; firmware V2.0.0 or higher |
| data integrity | Yes; firmware V2.0.0 or higher |
| horizontal installation, min. | -30 °C; < 0 °C as of FS04 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS04 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
