Siemens 6ES7134-4JB51-0AB0

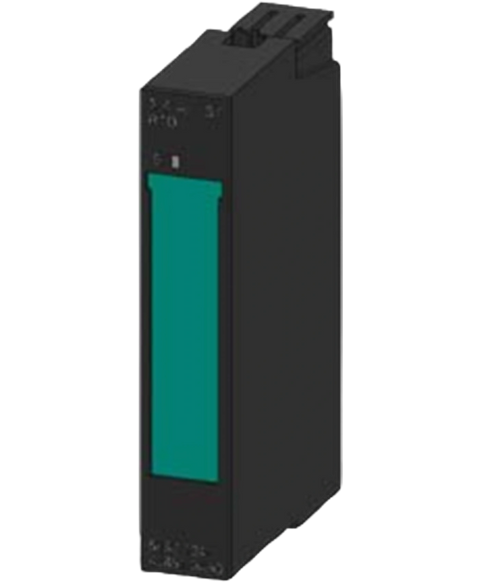

The Siemens 6ES7134-4JB51-0AB0 is an analog input module designed for efficient data acquisition in multiple applications. It operates at a rated voltage of 24 volts and features an input current of 30 mA, ensuring precise readings.
This Siemens 6ES7134-4JB51-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801439313.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Isochronous mode | No |
| Rated value (DC) | 24 V; From power module |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 30 mA |
| from backplane bus 3.3 V DC, max. | 10 mA |
| present | Yes |
| short-circuit proof | Yes |
| Power loss, typ. | 0.6 W |
| Address space per module, max. | 8 byte |
| Number of analog inputs | 4; 2 for 3 or 4-wire connection |
| permissible input voltage for voltage input (destruction limit), max. | 9 V |
| Constant measurement current for resistance-type transmitter, typ. | 1.67 mA |
| Cycle time (all channels) max. | Number of active channels per module x basic conversion time |
| Technical unit for temperature measurement adjustable | No |
| Ni 100 | Yes; Standard/climate |
| — Input resistance (Ni 100) | 2 000 kΩ |
| Pt 100 | Yes; Standard/climate |
| — Input resistance (Pt 100) | 2 000 kΩ |
| 0 to 150 ohms | Yes |
| — Input resistance (0 to 150 ohms) | 2 000 kΩ |
| 0 to 300 ohms | Yes |
| — Input resistance (0 to 300 ohms) | 2 000 kΩ |
| 0 to 600 ohms | Yes |
| — Input resistance (0 to 600 ohms) | 2 000 kΩ |
| parameterizable | Yes; for Pt100, Ni100Yes; In four stages by means of digital filtering |
| — for resistance thermometer | Pt100 (standard, climatic range), Ni100 (standard, climatic range) |
| shielded, max. | 200 m |
| Measurement principle | integrating |
| Resolution with overrange (bit including sign), max. | 16 bit; 150 ohms: 14 bit; 300, 600 ohms: 15 bit, Pt100, Ni100: 16 bit |
| Integration time, parameterizable | Yes |
| Integration time (ms) | 16,7 / 20 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 50 / 60 Hz |
| Conversion time (per channel) | 66 / 80 ms; additional conversion time for diagnostic wire break test |
| Step: None | Yes; 1x cycle time |
| Step: low | Yes; 4x cycle time |
| Step: Medium | Yes; 32x cycle time |
| Step: High | Yes; 64x cycle time |
| for resistance measurement with two-wire connection | Yes |
| for resistance measurement with three-wire connection | Yes |
| for resistance measurement with four-wire connection | Yes |
| Resistance thermometer, relative to input range, (+/-) | 0.6 %0.4 % |
| Wire-break | Yes |
| Group error | Yes |
| Overflow/underflow | YesDisable / enable |
| Group error SF (red) | Yes |
| Diagnostics wire break | Disable / enable |
| Group diagnostics | Disable / enable |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| Isolation tested with | 500 V DC |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 40 g |
