Siemens 6ES7132-6MD00-0BB1

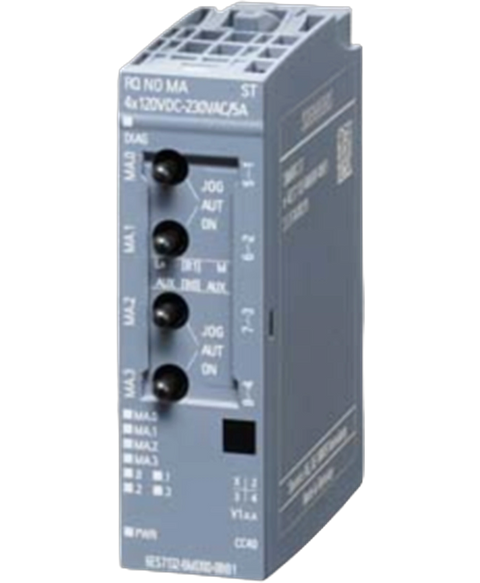

Siemens 6ES7132-6MD00-0BB1 relay module, ET200SP, 4x relay outputs.
This Siemens 6ES7132-6MD00-0BB1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805756587.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,036.59
(inc. GST)
In Stock
| Product type designation | RQ 4x120 V DC ... 230 V AC/5 A NO MA ST |
| HW functional status | From FS03 |
| FW update possible | Yes |
| usable BaseUnits | BU type B0, B1 |
| Color code for module-specific color-coded label | CC40 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| DQ | Yes |
| DQ with energy-saving function | No |
| PWM | No |
| Oversampling | No |
| MSO | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 100 mA; without load |
| Power loss, typ. | 1.5 W |
| Inputs | 1 byte; + 1 byte for QI information |
| Outputs | 1 byte |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | type C |
| 2-wire connection | BU type B1 |
| 3-wire connection | BU type B0 |
| Type of digital output | Relays |
| Number of digital outputs | 4 |
| Current-sinking | Yes |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | No |
| with resistive load, max. | 2 Hz |
| with inductive load (acc. to IEC 60947-5-1, DC13), max. | 0.5 Hz; provide one freewheeling diode for switching frequencies higher than 0.1 Hz |
| with inductive load (acc. to IEC 60947-5-1, AC15), max. | 0.5 Hz |
| on lamp load, max. | 2 Hz |
| Current per channel, max. | 5 A |
| Current per module, max. | 20 A |
| — up to 50 °C, max. | 20 A16 A |
| — up to 60 °C, max. | 16 A |
| — up to 40 °C, max. | 20 A |
| Number of relay outputs | 4 |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| Current consumption of relays (coil current of all relays), max. | 40 mA |
| external protection for relay outputs | Yes, with miniature fuse max. 6 A tripping current and quick-response tripping characteristic |
| Number of operating cycles, max. | 7 000 000; see additional description in the manual |
| — with inductive load, max. | 2 A; see additional description in the manual |
| — with resistive load, max. | 5 A; see additional description in the manual |
| — Thermal continuous current, max. | 5 A |
| — Switching current, min. | 100 mA; 5 V DC |
| — Rated switching voltage (DC) | 24 V DC to 120 V DC |
| — Rated switching voltage (AC) | 24V AC to 230V AC |
| shielded, max. | 1 000 m |
| unshielded, max. | 200 m |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | No |
| Short-circuit | No |
| Group error | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | Yes |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| between channels and backplane bus/supply voltage | 240 V AC2 500 V DC |
| Isolation tested with | 2 500 V DC (type test) |
| between backplane bus and supply voltage | 707 V DC (type test) |
| Suitable for safety functions | No |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 25.5 kg |
| — global warming potential, (during production) [CO2 eq] | 3.54 kg |
| — global warming potential, (during operation) [CO2 eq] | 22.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.137 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 45 g |
