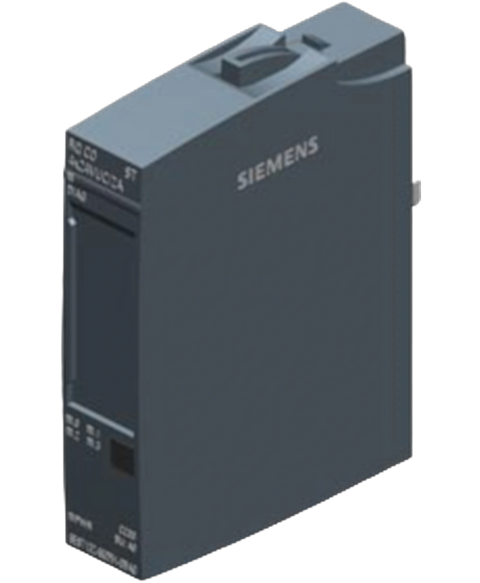

Siemens 6ES7132-6GD51-0BA0
Siemens 6ES71326GD510BA0 ET200SP relay output module, 4x24VDC.
This Siemens 6ES7132-6GD51-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801728956.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | RQ CO 4x24VDC/2A ST |
| HW functional status | From FS02 |
| Firmware version | V0.0 |
| FW update possible | No |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC00 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| STEP 7 TIA Portal configurable/integrated from version | V14 |
| STEP 7 configurable/integrated from version | V5.5 SP3 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| DQ | Yes |
| DQ with energy-saving function | No |
| PWM | No |
| Oversampling | No |
| MSO | No |
| Redundancy capability | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 50 mA |
| Power loss, typ. | 1.2 W |
| Inputs | + 1 byte for QI information |
| Outputs | 1 byte |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | type C |
| Type of digital output | Relays |
| Number of digital outputs | 4 |
| Current-sinking | Yes |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | No |
| for logic links | Yes |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 2 Hz |
| Current per channel, max. | 2 A |
| Current per module, max. | 8 A |
| — up to 40 °C, max. | 8 A6 A |
| — up to 50 °C, max. | 6 A4 A |
| — up to 60 °C, max. | 4 A |
| — up to 30 °C, max. | 8 A |
| Number of relay outputs | 4 |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| Current consumption of relays (coil current of all relays), max. | 40 mA |
| Number of operating cycles, max. | 500 000 |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 2 A |
| — Switching current, min. | 1 mA; 5 V DC |
| — Rated switching voltage (DC) | 24 V |
| — Rated switching voltage (AC) | 24 V |
| shielded, max. | 1 000 m |
| unshielded, max. | 200 m |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | No |
| Short-circuit | No |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | Yes |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 707 V DC (type test) |
| Suitable for safety functions | No |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 25.5 kg |
| — global warming potential, (during production) [CO2 eq] | 3.54 kg |
| — global warming potential, (during operation) [CO2 eq] | 22.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.137 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
