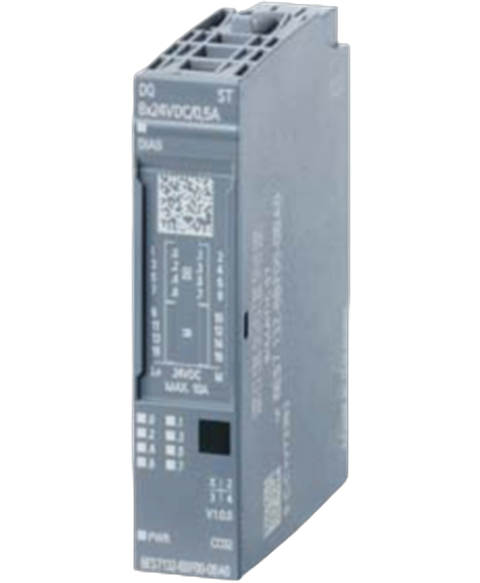

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7132-6BF00-0CA0
Siemens 6ES7132-6BF00-0CA0 digital output module, 8-channel, ET200SP.
This Siemens 6ES7132-6BF00-0CA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805604947.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$214.41
(inc. GST)
In Stock
| Product type designation | DQ 8x24 V DC/0.5 A HF |
| HW functional status | From FS07 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC02 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | Yes; 250 µs |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / - |
| STEP 7 configurable/integrated from version | V5.5 / - |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| DQ | Yes |
| DQ with energy-saving function | No |
| PWM | No |
| Oversampling | No |
| MSO | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 28 mA |
| Current consumption, max. | 28 mA |
| Power loss, typ. | 1 W |
| Address space per module, max. | 8 byte; 2 channels per submodule + QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 1-wire connection | BU type A0 |
| 2-wire connection | BU type A0 |
| 3-wire connection | BU type A0 with AUX terminals or potential distributor module |
| 4-wire connection | BU type A0 + Potential distributor module |
| Type of digital output | Source output (PNP, current-sourcing) |
| Number of digital outputs | 8 |
| Current-sinking | No |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes |
| Response threshold, typ. | 0.7 to 1.3 A |
| Limitation of inductive shutdown voltage to | Typ. L+ (-50 V) |
| Controlling a digital input | Yes |
| with resistive load, max. | 0.5 A100 Hz |
| on lamp load, max. | 5 W10 Hz |
| lower limit | 48 Ω |
| upper limit | 12 kΩ |
| for signal "1" rated value | 0.5 A |
| for signal "0" residual current, max. | 0.1 mA |
| "0" to "1", typ. | 50 µs |
| "1" to "0", typ. | 100 µs |
| for uprating | No |
| for redundant control of a load | Yes |
| with inductive load, max. | 2 Hz |
| Current per channel, max. | 0.5 A |
| Current per module, max. | 4 A |
| — up to 60 °C, max. | 4 A |
| — up to 50 °C, max. | 4 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Execution and activation time (TCO), min. | 48 µs |
| Bus cycle time (TDP), min. | 500 µs |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; channel by channel |
| Short-circuit | Yes; channel by channel |
| Group error | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | No; see FAQ Entry ID: 39198632 |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 20.4 kg |
| — global warming potential, (during production) [CO2 eq] | 3.16 kg |
| — global warming potential, (during operation) [CO2 eq] | 17.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.221 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS07 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS07 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
