Siemens 6ES7132-4BD02-0AA0

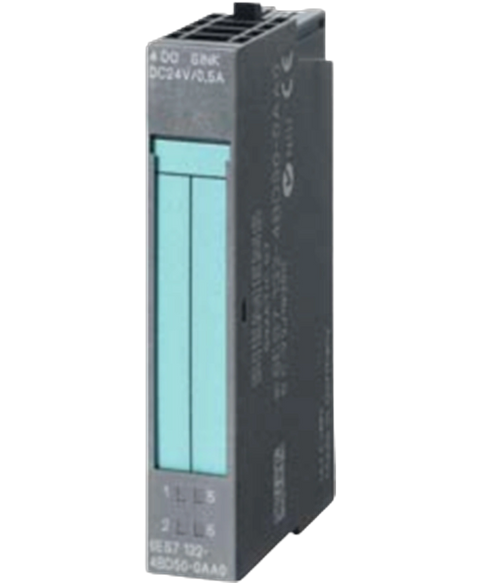

Siemens 6ES71324BD020AA0 ET200S digital output module, 4DO, 24VDC, pack of 5.
This Siemens 6ES7132-4BD02-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27205238478.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Reverse voltage protection | Yes; when using the same load voltage as on the power module |
| Rated value (DC) | 24 V; From power module |
| Reverse polarity protection | Yes; polarity reversal can lead to the digital outputs being connected through |
| from load voltage L+ (without load), max. | 10 mA; Per channel |
| from backplane bus 3.3 V DC, max. | 10 mA |
| Power loss, typ. | 0.8 W |
| Address space per module, max. | 1 byte |
| with packing | 4 bit |
| Type of digital output | Source output (PNP, current-sourcing) |
| Number of digital outputs | 4 |
| Short-circuit protection | Yes |
| Response threshold, typ. | 1 to 1.5 A |
| Limitation of inductive shutdown voltage to | L+ (-55 to -60 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W10 Hz |
| lower limit | 48 Ω |
| upper limit | 3 400 Ω |
| for signal "1", min. | L+ (-1 V) |
| for signal "1" rated value | 0.5 A |
| for signal "1" permissible range, min. | 7 mA |
| for signal "1" permissible range, max. | 600 mA |
| for signal "0" residual current, max. | 0.3 mA |
| "0" to "1", max. | 50 µs |
| "1" to "0", max. | 120 µs |
| for uprating | No |
| for redundant control of a load | Yes; per module |
| with resistive load, max. | 800 Hz |
| with inductive load, max. | 2 Hz |
| Current per module, max. | 2 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Diagnostics function | No |
| Status indicator digital output (green) | Yes |
| Remark | 1 byte |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Isolation tested with | 500 V DC |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 40 g |
