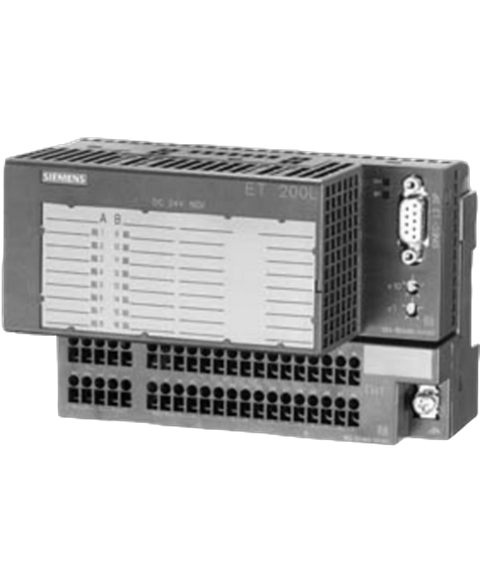

Siemens 6ES71311BL010XB0
SIMATIC DP, electronic module for ET 200L 32 DI, 24 V DC
This Siemens 6ES71311BL010XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095730072.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Usable terminal block | TB 32L |
| Rated value (DC) | 24 V24 V; 1L+, 2L+, 3L+ |
| Reverse polarity protection | Yes |
| Mains/voltage failure stored energy time | 20 ms |
| from supply voltage L+, max. | 70 mA |
| from load voltage L+ (without load), max. | 100 mA |
| Power loss, typ. | 3.2 W |
| Number of digital inputs | 32 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Number of simultaneously controllable inputs | 32 |
| for signal "0" | -30 to +5 V |
| for signal "1" | 13 to 30V |
| for signal "0", max. (permissible quiescent current) | 1.5 mA |
| for signal "1", typ. | 5 mA |
| — at "0" to "1", min. | 2 ms |
| — at "0" to "1", max. | 4.5 ms |
| — at "1" to "0", min. | 2 ms |
| — at "1" to "0", max. | 4.5 ms |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| 2-wire sensor | Yes |
| Transmission rate, max. | 1.5 Mbit/s |
| Bus protocol/transmission protocol | PROFIBUS DP |
| — FREEZE capability | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes; Transmitter (for digital outputs and hybrid modules ET 200L: not for L-SC or IM-SC) |
| Alarms | No |
| Diagnostics function | Yes |
| Bus fault BF (red) | Yes |
| Status indicator digital input (green) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| between PROFIBUS DP and all other circuit components | Yes |
| between the channels | No |
| between the channels and PROFIBUS DP | Yes |
| Isolation tested with | 500 V DC |
| IP degree of protection | IP20 |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C; 40°C for other mountings |
| permissible range, lower limit | 795 hPa |
| permissible range, upper limit | 1 080 hPa |
| Operation, min. | 5 % |
| Operation, max. | 95 %; RH class 2 in accordance with IEC 1131-2 |
| Operation, tested according to IEC 60068-2-6 | Yes; IEC 68, Part 2-6; 10 to 57 Hz; (constant amplitude 0.075 mm); 57 to 150 Hz; (constant acceleration 1 g) |
| tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27; half-sine, 15 g, 11 ms |
| Design of electrical connection for the inputs and outputs | Screw-type and spring-loaded terminals, permanent wiring; standard: 2-wire connection, optional: 3 and 4-wire connection |
| Width | 145 mm |
| Height | 60 mm |
| Depth | 60.5 mm |
| Weight, approx. | 150 g |
