Siemens 6ES7131-6BH01-0BA0

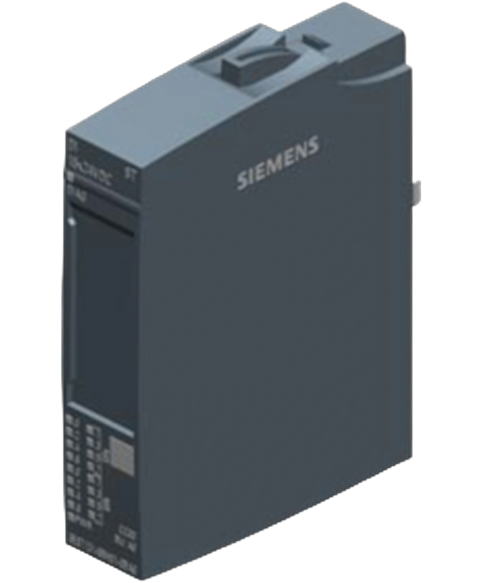

The Siemens 6ES7131-6BH01-0BA0 is a digital input module designed for seamless integration within automation systems. This module operates at an input voltage of 24 V DC, making it suitable for low-voltage applications. It supports 16 inputs, providing extensive connectivity for various sensors and devices.
This Siemens 6ES7131-6BH01-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26842844610.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | DI 16x24VDC ST |
| HW functional status | From FS02 |
| Firmware version | V0.0 |
| FW update possible | No |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC00 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| suitable for operation on PROFINET R1 IMs | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V14 |
| STEP 7 configurable/integrated from version | V5.5 SP3 |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PCS neo can be configured/integrated from version | from V1.0.0 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| DI | Yes |
| Counter | No |
| Oversampling | No |
| MSI | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 90 mA |
| 24 V | No |
| Power loss, typ. | 1.7 W |
| Inputs | 2 byte; + 2 bytes for QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 1-wire connection | BU type A0 |
| 2-wire connection | BU type A0 + Potential distributor module |
| 3-wire connection | BU type A0 + Potential distributor module |
| 4-wire connection | BU type A0 + Potential distributor module |
| Number of digital inputs | 16 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| for signal "0" | -30 to +5 V |
| for signal "1" | +11 to +30V |
| for signal "1", typ. | 2.5 mA |
| — parameterizable | Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)Yes |
| — at "0" to "1", min. | 0.05 ms |
| — at "0" to "1", max. | 20 ms |
| — at "1" to "0", min. | 0.05 ms |
| — at "1" to "0", max. | 20 ms |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Monitoring the supply voltage | Yes |
| Monitoring of encoder power supply | No |
| Wire-break | Yes; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm |
| Short-circuit | No |
| Group error | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| Suitable for safety functions | No |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 21 kg |
| — global warming potential, (during production) [CO2 eq] | 4.25 kg |
| — global warming potential, (during operation) [CO2 eq] | 17.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.743 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS02 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS02 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| dew point, min. | -60 °C; suitable for dry room applications |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 28 g |
