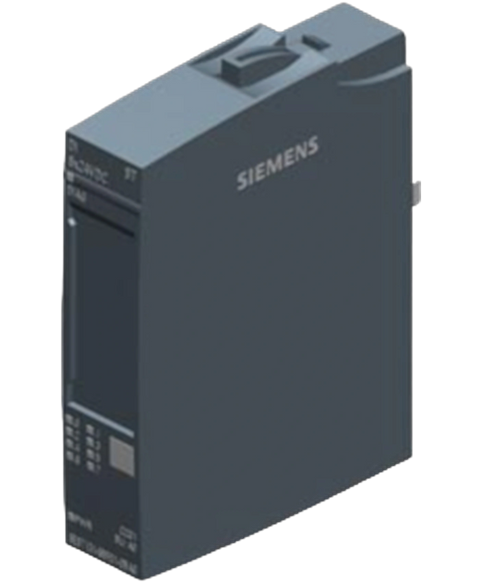

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7131-6BF01-0BA0
Siemens 6ES7131-6BF01-0BA0 digital input module, 8-channel, ET200SP.
This Siemens 6ES7131-6BF01-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801361599.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$127.79
(inc. GST)
In Stock
| Product type designation | DI 8x24 VDC ST |
| HW functional status | From FS02 |
| Firmware version | V0.0 |
| FW update possible | No |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC01 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| suitable for operation on PROFINET R1 IMs | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V14 |
| STEP 7 configurable/integrated from version | V5.5 SP3 or higher |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PCS neo can be configured/integrated from version | V3.1 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| DI | Yes |
| Counter | No |
| Oversampling | No |
| MSI | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 50 mA; All channels are supplied from the encoder supply |
| Number of outputs | 8 |
| Output voltage, min. | 19.2 V |
| Short-circuit protection | Yes; per moduleYes |
| 24 V | Yes |
| Output current, max. | 700 mA |
| Output current per channel, max. | 700 mA |
| Output current per module, max. | 700 mA |
| Power loss, typ. | 1 W; 24 V, 8 inputs supplied via encoder supply |
| Inputs | 1 byte; + 1 byte for QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 1-wire connection | BU type A0 |
| 2-wire connection | BU type A0 |
| 3-wire connection | BU type A0 with AUX terminals or potential distributor module |
| 4-wire connection | BU type A0 + Potential distributor module |
| Number of digital inputs | 8 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| for signal "0" | -30 to +5 V |
| for signal "1" | +11 to +30V |
| for signal "1", typ. | 2.5 mA |
| — parameterizable | Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)Yes |
| — at "0" to "1", min. | 0.05 ms |
| — at "0" to "1", max. | 20 ms |
| — at "1" to "0", min. | 0.05 ms |
| — at "1" to "0", max. | 20 ms |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Monitoring the supply voltage | Yes |
| Monitoring of encoder power supply | Yes; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm |
| Wire-break | Yes; Module-wise |
| Short-circuit | Yes; Module-wise |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| Suitable for safety functions | No |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 15.9 kg |
| — global warming potential, (during production) [CO2 eq] | 3.69 kg |
| — global warming potential, (during operation) [CO2 eq] | 12.7 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.495 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS02 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS02 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 28 g |
