Siemens 6ES7 155-5AA00-0AC0

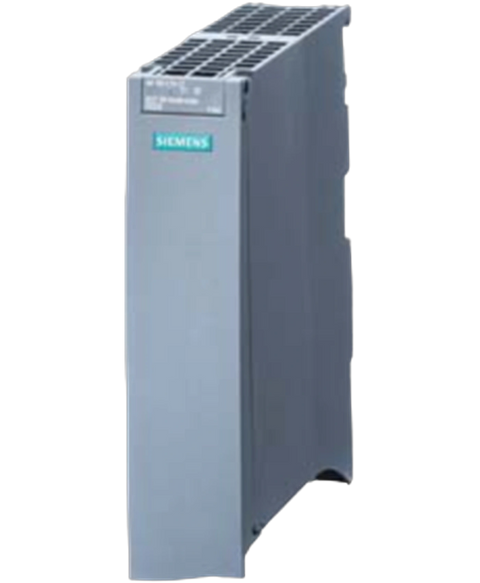

Siemens 6ES7155-5AA00-0AC0 interface module, ET200MP, PROFINET IO.
This Siemens 6ES7 155-5AA00-0AC0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26838263087.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,719.61
(inc. GST)
In Stock
| Product type designation | IM 155-5 PN HF |
| HW functional status | From FS03 |
| Firmware version | V4.4 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0X0312 |
| I&M data | Yes; I&M0 to I&M3 |
| Module swapping during operation (hot swapping) | Yes; In combination with active backplane bus |
| Isochronous mode | Yes |
| IRT | Yes |
| Tool changer | No |
| Local coupling, IO data | No |
| STEP 7 TIA Portal configurable/integrated from version | V16 |
| STEP 7 configurable/integrated from version | use GSD file |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| via dataset | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption (rated value) | 0.2 A; at 24 V DC and without load |
| Current consumption, max. | 1.2 A |
| Inrush current, max. | 9 A |
| I²t | 0.09 A²·s |
| Infeed power to the backplane bus | 14 W |
| Power consumption from the backplane bus | 2.3 W; in case of operation with separate system power supply to the left of IM |
| Power loss, typ. | 4.5 W |
| Address space per module, max. | 256 byte; For input and output data respectively |
| Address space per station, max. | 512 byte; For input and output data respectively |
| Integrated power supply | Yes; 14 W |
| System power supply can be plugged in to left of IM | Yes; only with design with U-connectors |
| Number of permissible power segments | 3; incl. interface module |
| Modules per rack, max. | 30; I/O modules |
| Number of submodules per station, max. | 256; 9 per I/O module |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| RJ 45 (Ethernet) | Yes |
| Number of ports | 2 |
| integrated switch | Yes |
| BusAdapter (PROFINET) | No |
| PROFINET IO Device | Yes |
| Open IE communication | Yes |
| Media redundancy | Yes; PROFINET MRP client / HRP client |
| — IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| — PROFIenergy | No |
| — Prioritized startup | Yes |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 4 |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| PROFINET system redundancy (S2) | Yes; NAP S2 |
| — on S7-1500R/H | Yes |
| — on S7-400H | Yes; use GSD file |
| PROFINET system redundancy (R1) | No |
| H-Sync forwarding | Yes |
| — MRP | Yes |
| — MRPD | Yes |
| TCP/IP | Yes |
| SNMP | Yes |
| LLDP | Yes |
| Equidistance | Yes |
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Bus cycle time (TDP), min. | 250 µs |
| Jitter, max. | 1 µs |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Connection display LINK TX/RX | Yes; 2x green-yellow LEDs |
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | -25 °C; from FS04 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -25 °C; from FS04 |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| via BU/BA Send | No |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 350 g |
