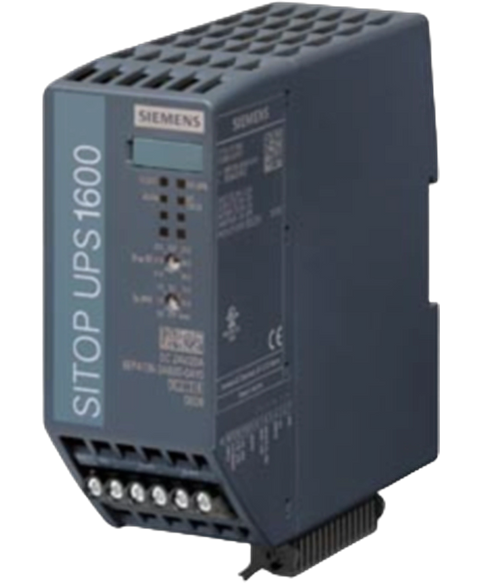

Siemens 6EP41363AB000AY0
SITOP UPS1600 20A UNINTERRUPTIBLE POWER SUPPLY INPUT: 24 V DC OUTPUT: 24 V DC,20 A
This Siemens 6EP41363AB000AY0 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL27093597454.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$458.65
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP4136-3AB00-0AY0 |
| supply voltage at DC rated value | 24 V |
| input voltage at DC | 21 ... 29 V |
| adjustable response value voltage for buffer connection preset | 21.5 V |
| adjustable response value voltage for buffer connection | 21 ... 25 V; Adjustable: 21 V, 21.5 V, 22 V, 22.5 V, 23 V, 24 V, 25 V DC |
| input current at rated input voltage 24 V rated value | 25 A; for max. charging current (4 A) |
| type of energy storage | with batteries |
| design of the mains power cut bridging-connection | Adjustable range using rotary coding switch: 0.5 min, 1 min, 2 min, 5 min, 10 min, 20 min, max. buffering time |
| in normal operation at DC rated value | 24 V |
| in buffering mode at DC rated value | 24 V |
| formula for output voltage | Vin - approx. 0.2 V |
| startup delay time typical | 60 ms |
| voltage increase time of the output voltage typical | 60 ms |
| output voltage in buffering mode at DC | 18.5 ... 27 V |
| rated value | 20 A |
| in normal operation | 0 ... 60 A |
| in buffering mode | 0 ... 60 ABuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20.4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed |
| peak current | 60 A |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Limitation to 3 x I rated for 30 ms/min; through-conductivity for 1.5 x I rated for 5 sec/min |
| charging current | 0.1 A, 4 A |
| at rated output voltage for rated value of the output current typical | 97.7 %10 W |
| in case of operation on rechargeable battery typical | 97.7 %10 W |
| supplied active power typical | 480 W |
| reverse polarity protection against energy storage unit polarity reversal | Yes |
| reverse polarity protection against input voltage polarity reversal | Yes |
| for normal operation | Normal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set at the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with approx. 0.25 Hz, floating changeover contact "Alarm/Bat" switching with approx. 0.25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A or AC 30 V /1 A |
| product component PC interface | No |
| product function communication function | Yes |
| design of the interface | without |
| galvanic isolation between input and output | No |
| operating resource protection class | Class III |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| UKCA marking | Yes |
| EAC approval | Yes |
| type of certification CB-certificate | Yes |
| MTBF at 40 °C | 408 654 h |
| ATEX | No |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Environmental Product Declaration | Yes |
| total | 269.9 kg |
| during manufacturing | 16 kg |
| during operation | 253.5 kg-25 ... +70 °C; with natural convection |
| after end of life | 0.3 kg |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | 24 V DC: 2 screw terminals for 0.2 ... 6 mm²/24 ... 13 AWG |
| at output | 24 V DC: 2 screw terminals for 0.2 ... 6 mm²/24 ... 13 AWG |
| for rechargeable battery module | 24 V DC: 2 screw terminals for 0.2 ... 6 mm²/24 ... 13 AWG |
| for control circuit and status message | 14 screw terminals for 0.2 ... 1.5 mm²/24 ... 16 AWG |
| width × height × depth of the enclosure | 50 × 139 × 125 mm |
| installation width × mounting height | 50 mm × 239 mm |
| top | 50 mm |
| bottom | 50 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.39 kg |
| electrical accessories | Battery module |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
