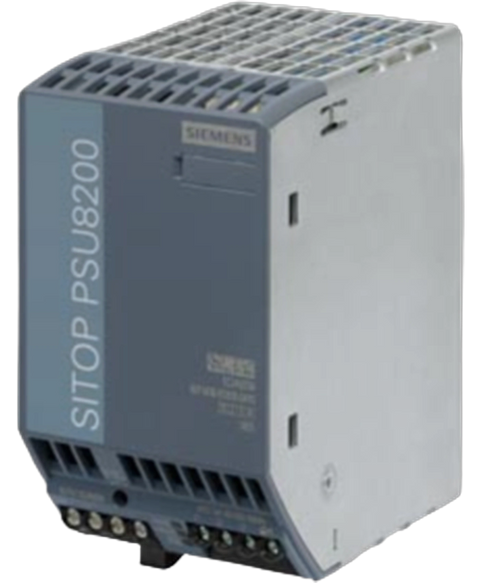

Siemens 6EP3436-8SB00-0AY0
The Siemens 6EP3436-8SB00-0AY0 is a three-phase power supply unit within the SITOP series. It is designed to provide reliable DC output voltage at 24 volts, featuring a maximum supply voltage range of 500 volts and a minimum of 400 volts. This unit has a buffering capability of 15 milliseconds, ensuring stable performance during power fluctuations.
This Siemens 6EP3436-8SB00-0AY0 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26801443851.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$464.33
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP3436-8SB00-0AY0 |
| type of the power supply network | 3-phase AC |
| minimum rated value | 400 V |
| maximum rated value | 500 V |
| initial value | 320 V |
| full-scale value | 575 V |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 15 ms |
| operating condition of the mains buffering | at Vin = 400 V |
| line frequency | 50/60 Hz47 ... 63 Hz |
| at rated input voltage 400 V | 1.2 A |
| at rated input voltage 500 V | 1 A |
| current limitation of inrush current at 25 °C maximum | 16 A |
| I2t value maximum | 0.8 A²·s |
| fuse protection type | none |
| fuse protection type in the feeder | Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28 V; max. 480 W |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.2 % |
| maximum | 100 mV200 mV500 ms10 ms3.5 mA |
| display version for normal operation | Green LED for 24 V OK |
| type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 2.5 s |
| rated value | 20 A |
| rated range | 0 ... 20 A; +60 ... +70 °C: Derating 2%/K |
| supplied active power typical | 480 W |
| at short-circuit during operation typical | 60 A |
| at short-circuit during operation | 25 ms |
| on short-circuiting during the start-up typical | 22 A |
| bridging of equipment | Yes; switchable characteristic |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 94 % |
| at rated output voltage for rated value of the output current typical | 31 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1 % |
| load step 50 to 100% typical | 0.2 ms |
| load step 100 to 50% typical | 0.2 ms |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 2 % |
| load step 10 to 90% typical | 0.2 ms |
| load step 90 to 10% typical | 0.2 ms |
| design of the overvoltage protection | < 32 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Alternatively, constant current characteristic approx. 22 A or latching shutdown |
| typical | 22 A0.9 mA |
| in normal operation | overload capability 150 % Iout rated up to 5 s/min |
| display version for overload and short circuit | LED yellow for "overload", LED red for "latching shutdown" |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | EN 61000-3-2 |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| EAC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| NEC Class 2 | No |
| SEMI F47 | Yes |
| BIS | Yes; R-41188271 |
| CB-certificate | Yes |
| MTBF at 40 °C | 590 573 h |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| FM registration | No |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | No |
| Environmental Product Declaration | Yes |
| total | 814 kg |
| during manufacturing | 28.7 kg |
| during operation | 785 kg-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage |
| after end of life | 0.24 kg |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.2 ... 4 mm² |
| for auxiliary contacts | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15, 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm² |
| width × height × depth of the enclosure | 70 × 125 × 125 mm |
| installation width × mounting height | 70 mm × 225 mm |
| top | 50 mm |
| bottom | 50 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 1.2 kg |
| electrical accessories | Buffer module |
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| identification link | Yes; acc. to IEC 61406-1:2022 |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
