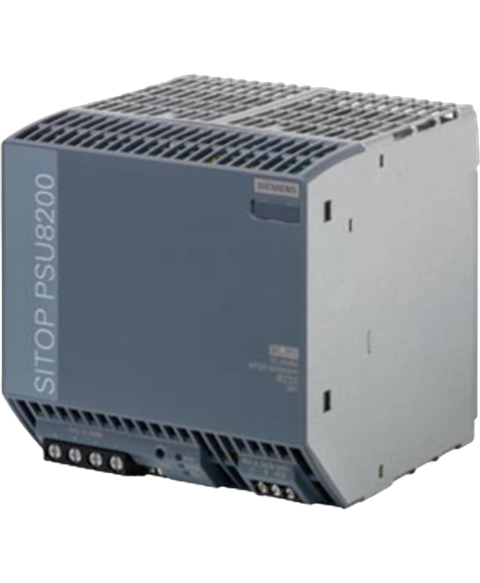

Siemens 6EP3337-8SB00-0AY0
Siemens 6EP33378SB000AY0 power supply, 24VDC, 40A.
This Siemens 6EP3337-8SB00-0AY0 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26805663858.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,005.35
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP3337-8SB00-0AY0 |
| type of the power supply network | 1-phase and 2-phase AC |
| supply voltage at AC | Automatic selection; startup starting from Ue ≥ 90/180 V |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 170 ... 264 V |
| wide range input | No |
| buffering time for rated value of the output current in the event of power failure minimum | 25 ms |
| operating condition of the mains buffering | at Vin = 230 V |
| line frequency | 50/60 Hz45 ... 65 Hz |
| at rated input voltage 120 V | 15 A |
| at rated input voltage 230 V | 9 A |
| current limitation of inrush current at 25 °C maximum | 50 A |
| I2t value maximum | 8 A²·s |
| fuse protection type | Yes |
| fuse protection type in the feeder | Recommended miniature circuit breaker at 1-phase operation: 16 A characteristic C; required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2421-4BA10 (120 V) or 3RV2411-1JA10 (230 V) |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28 V; max. 960 W |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.1 % |
| maximum | 100 mV240 mV1 ms0.1 mA |
| typical | 50 mV220 mV30 ms41 A0.1 mA |
| display version for normal operation | Green LED for 24 V OK; LED yellow for overload; LED red for short-circuit or latching shutdown |
| type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" |
| behavior of the output voltage when switching on | Overshoot of Vout approx. 3 % |
| response delay maximum | 1.5 s |
| rated value | 40 A |
| rated range | 0 ... 40 A; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 960 W |
| on short-circuiting during the start-up typical | 120 A60 A |
| at short-circuit during operation typical | 120 A |
| on short-circuiting during the start-up | 25 ms |
| at short-circuit during operation | 25 ms |
| bridging of equipment | Yes; switchable characteristic |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 92 % |
| at rated output voltage for rated value of the output current typical | 82 W |
| during no-load operation maximum | 6.8 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 1 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1.9 % |
| load step 50 to 100% typical | 2 ms |
| load step 100 to 50% typical | 2 ms |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3.8 % |
| load step 10 to 90% typical | 1 ms |
| load step 90 to 10% typical | 1 ms |
| design of the overvoltage protection | < 32 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Alternatively, constant current characteristic approx. 41 A or latching shutdown |
| in normal operation | 250% Iout rated up to 25 ms, 150% Iout rated up to 5 s/min |
| display version for overload and short circuit | LED yellow for "overload", LED red for "latching shutdown" or "short-circuit" |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | - |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| EAC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| NEC Class 2 | No |
| BIS | Yes; R-41183539 |
| CB-certificate | Yes |
| MTBF at 40 °C | 838 156 h |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| FM registration | No |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | No |
| Environmental Product Declaration | Yes |
| total | 2 152.1 kg |
| during manufacturing | 74.1 kg |
| during operation | 2 076.5 kg-25 ... +70 °C; with natural convection |
| after end of life | 0.62 kg |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | L, N, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.5 ... 10 mm² |
| for auxiliary contacts | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm² |
| width × height × depth of the enclosure | 145 × 145 × 150 mm |
| installation width × mounting height | 150 mm × 225 mm |
| top | 40 mm |
| bottom | 40 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 3.1 kg |
| electrical accessories | Buffer module, redundancy module |
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
