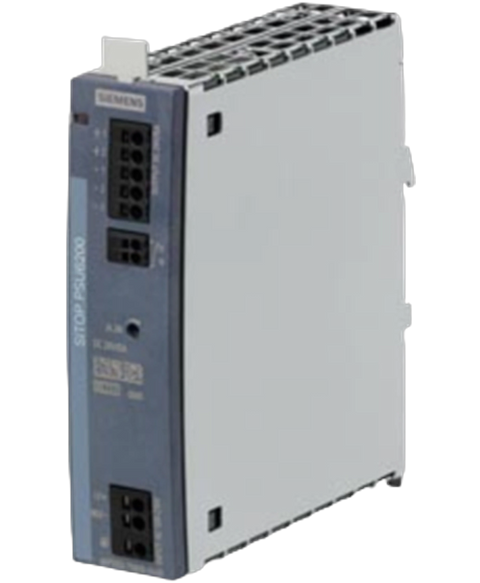

Product image for illustrative purposes only. Actual item may vary.
Siemens 6EP3333-7SB00-0AX0
Siemens 6EP3333-7SB00-0AX0 power supply, 24VDC, 5A.
This Siemens 6EP3333-7SB00-0AX0 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26842539802.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$462.91
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP3333-7SB00-0AX0 |
| type of the power supply network | 1-phase AC or DC |
| minimum rated value | 120 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| supply voltage at DC | 120 ... 240 V |
| input voltage at DC | 99 ... 275 V |
| wide range input | Yes |
| overvoltage overload capability | 300 V AC for 30 s |
| buffering time for rated value of the output current in the event of power failure minimum | 80 ms |
| operating condition of the mains buffering | at Vin = 240 V |
| line frequency | 50/60 Hz47 ... 63 Hz |
| at rated input voltage 120 V | 1.9 A |
| at rated input voltage 240 V | 1.1 A |
| current limitation of inrush current at 25 °C maximum | 29 A |
| fuse protection type | 3.15 A |
| fuse protection type in the feeder | Circuit breaker 4 A characteristic C or 6 A characteristic B/C or circuit breaker 3RV2011-1EA10 (setting 4 A) or 3RV2711-1ED10 (UL 489) |
| voltage curve at output | Controlled, isolated DC voltage |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28 V; max. 120 W (144 W up to 45°C) |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.2 % |
| maximum | 30 mV100 mV2 ms3.5 mA |
| typical | 20 mV60 mV100 ms6 A |
| display version for normal operation | Green LED for 24 V OK |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. |
| behavior of the output voltage when switching on | Overshoot of Vout < 2 % |
| response delay maximum | 0.5 s |
| rated value | 5 A |
| rated range | 0 ... 5 A; 6 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 120 W |
| on short-circuiting during the start-up typical | 6 A |
| at short-circuit during operation typical | 6 A |
| bridging of equipment | No |
| efficiency in percent | 90.2 % |
| at rated output voltage for rated value of the output current typical | 13 W |
| during no-load operation maximum | 2 W |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 2 % |
| load step 10 to 90% typical | 1 ms |
| load step 90 to 10% typical | 1 ms |
| design of the overvoltage protection | < 32 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Shutdown and periodic restart attempts |
| in normal operation | overload capability 150 % Iout rated up to 5 s/min |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | EN 61000-3-2 |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| UKCA marking | Yes |
| EAC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| NEC Class 2 | No |
| SEMI F47 | Yes |
| BIS | Yes; R-41188271 |
| CB-certificate | Yes |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| FM registration | No |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | No |
| Environmental Product Declaration | Yes |
| total | 347.3 kg |
| during manufacturing | 18 kg |
| during operation | 328.8 kg-30 ... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C |
| after end of life | 0.3 kg |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | push-in terminals |
| at input | L1/+, L2/N/-, PE: push-in for 0.5 ... 4 mm² single-core/finely stranded |
| at output | +1, +2, -1, -2, -3: push-in for 0.5 ... 2.5 mm² |
| for auxiliary contacts | 13, 14 (alarm signal): 1 push-in terminal each for 0.2 ... 1.5 mm² |
| width × height × depth of the enclosure | 35 × 135 × 125 mm |
| installation width × mounting height | 35 mm × 225 mm |
| top | 45 mm |
| bottom | 45 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.7 kg |
| electrical accessories | Buffer module, redundancy module |
| mechanical accessories | Identification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0 |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| identification link | Yes; acc. to IEC 61406-1:2022 |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
