Siemens 6EP3332-6SB00-0AY0

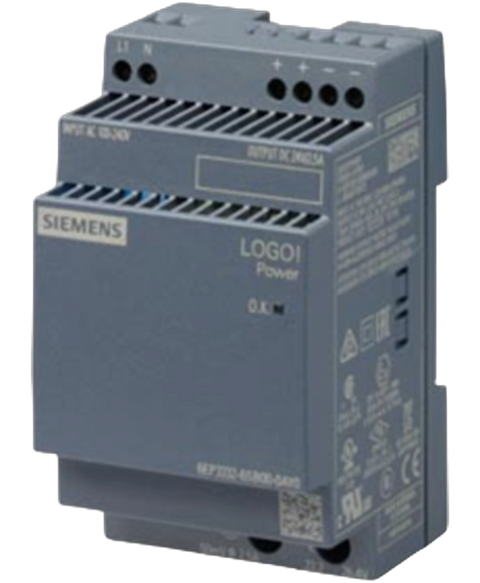

Siemens 6EP3332-6SB00-0AY0 LOGO power supply, 24VDC, 2.5A.
This Siemens 6EP3332-6SB00-0AY0 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26801381143.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$218.67
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP3332-6SB00-0AY0 |
| type of the power supply network | 1-phase AC or DC |
| minimum rated value | 100 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| input voltage at DC | 110 ... 300 V |
| wide range input | Yes |
| overvoltage overload capability | 300 V AC for 1 s |
| buffering time for rated value of the output current in the event of power failure minimum | 40 ms |
| operating condition of the mains buffering | at Vin = 187 V |
| line frequency | 50/60 Hz47 ... 63 Hz |
| at rated input voltage 120 V | 1.22 A |
| at rated input voltage 230 V | 0.66 A |
| current limitation of inrush current at 25 °C maximum | 52 A |
| I2t value maximum | 3 A²·s |
| fuse protection type | internal |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 10 A characteristic B or from 6 A characteristic C |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 22.2 ... 26.4 V |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.1 % |
| maximum | 200 mV300 mV3.2 A |
| typical | 30 mV50 mV100 ms3.2 A |
| display version for normal operation | Green LED for output voltage OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 0.5 s |
| rated value | 2.5 A |
| rated range | 0 ... 2.5 A; +55 ... +70 °C: Derating 2%/K |
| supplied active power typical | 60 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 89.6 % |
| at rated output voltage for rated value of the output current typical | 7 W |
| during no-load operation maximum | 0.3 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.2 % |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 2 % |
| load step 10 to 90% typical | 1 ms |
| load step 90 to 10% typical | 1 ms |
| design of the overvoltage protection | Yes, according to EN 60950-1 |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| when switching on | 150% Iout rated typ. 200 ms |
| in normal operation | overload capability 150% Iout rated typ. 200 ms |
| measuring point for output current | Yes; 50 mV =^ 2.5 A |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class II (without protective conductor) |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | not applicable |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310) |
| EAC approval | Yes |
| NEC Class 2 | Yes; according to UL1310, File E151273 |
| SEMI F47 | Yes |
| BIS | Yes; R-41188271 |
| CB-certificate | Yes |
| MTBF at 40 °C | 2 864 520 h |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| FM registration | No |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Environmental Product Declaration | Yes |
| total | 195.3 kg |
| during manufacturing | 3.8 kg |
| during operation | 191.4 kg-25 ... +70 °C; with natural convection |
| after end of life | 0.14 kg |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +, -: 1 screw terminal each for 0.5 ... 2.5 mm² |
| for auxiliary contacts | - |
| width × height × depth of the enclosure | 54 × 90 × 53 mm |
| installation width × mounting height | 54 mm × 130 mm |
| top | 20 mm |
| bottom | 20 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | Yes |
| housing can be lined up | Yes |
| net weight | 0.2 kg |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
