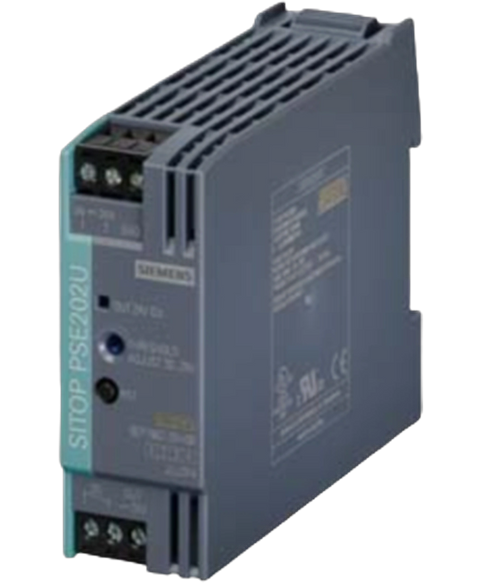

Product image for illustrative purposes only. Actual item may vary.
Siemens 6EP19622BA00
SITOP PSE202U NEC Class 2 Redundancy module Input,output: 24 V DC suitable for decoupling two SITOP power supplies Output power restricted to 100 VA
This Siemens 6EP19622BA00 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL27093578540.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$772.47
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP1962-2BA00 |
| type of the power supply network | DC voltage |
| supply voltage at DC | 24 ... 24 V |
| input voltage at DC | 19 ... 29 V |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| formula for output voltage | Vin - approx. 0.5 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | No |
| display version for normal operation | Green LED for "both input voltages > switching threshold"; red LED for "at least one input voltage < switching threshold" or "output switched off" |
| type of signal at output | Isolated relay contact (contact rating 6 A/42 V AC, 30 V DC, but max. 100 VA): Contact closed if one or both input voltages < switching threshold or output is switched off. Setting range of switching threshold 20 V ±0.5 V to 25 V ±0.5 V |
| rated value | 3.8 A |
| rated range | 3.5 A; 4.3 A at 19 V, 2.8 A at 28.5 V; maximum aggregate current in the event of an error according to NEC class 2 limit 8 A |
| efficiency in percent | 94.8 % |
| at rated output voltage for rated value of the output current typical | 5 W |
| during no-load operation maximum | 2 W |
| galvanic isolation between input and output | No |
| galvanic isolation | relay contact: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class III |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; UL-Recognized (UL 60950-1, NEC class 2), File E151273 |
| EAC approval | Yes |
| NEC Class 2 | Yes; according to UL1310, File E151273 |
| CB-certificate | No |
| MTBF at 40 °C | 678 210 h |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| FM registration | No |
| shipbuilding approval | No |
| American Bureau of Shipping Europe Ltd. (ABS) | No |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | No |
| Lloyds Register of Shipping (LRS) | No |
| during operation | -20 ... +70 °C; with natural convection |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | Input, output and ground: removable screw terminal, each 1 x 0.5 ... 2.5 mm² single-core/finely stranded |
| for auxiliary contacts | Relay contact: 2 screw terminals for 0.5 ... 2.5 mm² single-core/finely stranded |
| width × height × depth of the enclosure | 30 × 80 × 100 mm |
| installation width × mounting height | 30 mm × 180 mm |
| top | 50 mm |
| bottom | 50 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.125 kg |
| electrical accessories | Removable spring-type terminal 6EP1971-5BA00 |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
