Siemens 6EP19312FC42

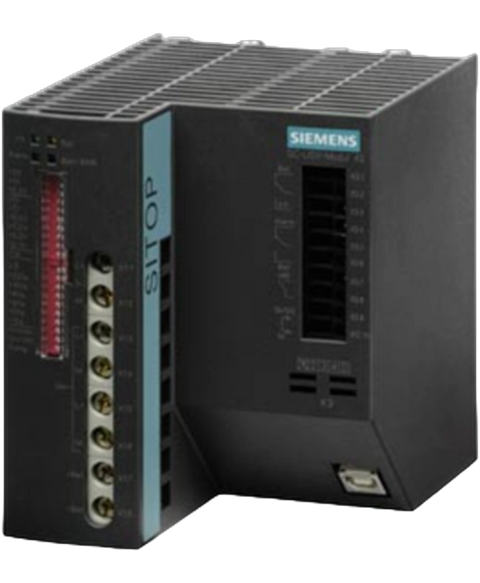

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 6EP19312FC42

SKU: PL27093555450
MPN: 6EP19312FC42

SITOP DC UPS MODULE 24 V,40 A UNINTERRUPTIBLE POWER SUPPLY WITH USB INTERFACE INPUT: 24 V DC,42.6 A OUTPUT: 24 V DC,40 A

This Siemens 6EP19312FC42 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL27093555450.

Brand New - 12 Months Warranty
$494.15 (inc. GST)
In Stock

Datasheet

Technical Product Detail Page https://i.siemens.com/1P6EP1931-2FC42
supply voltage at DC rated value 24 V
input voltage at DC 22 ... 29 V
adjustable response value voltage for buffer connection preset 22.5 V
adjustable response value voltage for buffer connection 22 ... 25.5 V; Adjustable in 0.5 V increments
input current at rated input voltage 24 V rated value 40 A; + approx. 2.6 A with empty battery
type of energy storage with batteries
design of the mains power cut bridging-connection Dependent on connected battery and load current, see selection table battery module and mains buffering times as well as the relevant important information notes!
in normal operation at DC rated value 24 V
in buffering mode at DC rated value 24 V
formula for output voltage Vin - approx. 0.5 V
startup delay time typical 1 s
voltage increase time of the output voltage typical 360 ms
output voltage in buffering mode at DC 19 ... 28.5 V
rated value 40 A
in normal operation 0 ... 40 A
in buffering mode 0 ... 40 ABuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20.4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed
peak current 42 A
charging current 1 A, 2 A
at rated output voltage for rated value of the output current typical 97.2 %28.6 W
in case of operation on rechargeable battery typical 96.9 %33.6 W
supplied active power typical 960 W
reverse polarity protection against energy storage unit polarity reversal Yes
reverse polarity protection against input voltage polarity reversal Yes
for normal operation Normal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set at the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with approx. 0.25 Hz, floating changeover contact "Alarm/Bat" switching with approx. 0.25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A or AC 30 V /1 A
product component PC interface Yes
product function communication function No
design of the interface USB
galvanic isolation between input and output No
operating resource protection class Class III
protection class IP IP20
for emitted interference EN 55022 Class B
for interference immunity EN 61000-6-2
CE marking Yes
UL approval Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
EAC approval Yes
MTBF at 40 °C 493 340 h
shipbuilding approval Yes
American Bureau of Shipping Europe Ltd. (ABS) Yes
Det Norske Veritas (DNV) Yes
Environmental Product Declaration Yes
total 898.2 kg
during manufacturing 45.1 kg
during operation 851.9 kg-25 ... +60 °C; with natural convection
after end of life 0.84 kg
during transport -40 ... +85 °C
during storage -40 ... +85 °C
environmental category according to IEC 60721 Climate class 3K3, 5 ... 95% no condensation
type of electrical connection screw terminal
at input 24 V DC: 2 screw terminals for 0.33 ... 10 mm²/22 ... 7 AWG
at output 24 V DC: 2 screw terminals for 0.33 ... 10 mm²/22 ... 7 AWG
for rechargeable battery module 24 V DC: 2 screw terminals for 0.33 ... 10 mm²/22 ... 7 AWG
for control circuit and status message 10 screw terminals for 0.5 ... 2.5 mm²/20 ... 13 AWG
width × height × depth of the enclosure 102 × 125 × 125 mm
installation width × mounting height 102 mm × 225 mm
top 50 mm
bottom 50 mm
left 0 mm
right 0 mm
fastening method Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting Yes
S7 rail mounting No
wall mounting No
housing can be lined up Yes
net weight 1.1 kg
electrical accessories Battery module
to website: Industry Mall https://mall.industry.siemens.com
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to web page: power supplies https://siemens.com/sitop
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
