Siemens 6EP1334-3BA10
Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 6EP1334-3BA10

SKU: PL26801728900
MPN: 6EP1334-3BA10

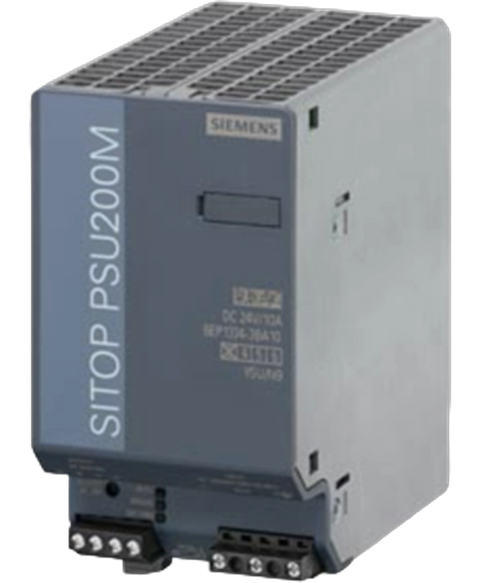

The Siemens 6EP1334-3BA10 is a power supply module that operates efficiently across both single-phase and two-phase configurations. Capable of handling an input voltage range from 120 to 230 V, it converts this AC power into a stable 24 V DC output.

This Siemens 6EP1334-3BA10 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26801728900.

Brand New - 12 Months Warranty
$455.81 (inc. GST)
In Stock

Datasheet

Technical Product Detail Page https://i.siemens.com/1P6EP1334-3BA10
type of the power supply network 1-phase and 2-phase AC
supply voltage at AC Set by means of selector switch on the device
supply voltage 1 at AC 120 ... 230 V
supply voltage 2 at AC 230 ... 500 V
input voltage 1 at AC 85 ... 264 V
input voltage 2 at AC 176 ... 550 V
wide range input Yes
overvoltage overload capability 1300 Vpeak, 1.3 ms
buffering time for rated value of the output current in the event of power failure minimum 25 ms
operating condition of the mains buffering at Vin = 120/230 V, typ. 150 ms at Vin = 400 V
line frequency 50/60 Hz47 ... 63 Hz
at rated input voltage 120 V 4.4 A
at rated input voltage 230 V 2.4 A
at rated input voltage 500 V 1.1 A
current limitation of inrush current at 25 °C maximum 35 A
I2t value maximum 4 A²·s
fuse protection type T 6.3 A (not accessible)
fuse protection type in the feeder Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711-1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V
voltage curve at output Controlled, isolated DC voltage
output voltage at DC rated value 24 V
at output 1 at DC rated value 24 V
output voltage adjustable Yes; via potentiometer
adjustable output voltage 24 ... 28.8 V
relative overall tolerance of the voltage 3 %
on slow fluctuation of input voltage 0.1 %
on slow fluctuation of ohm loading 0.1 %
maximum 50 mV200 mV5 ms3.5 mA
display version for normal operation Green LED for 24 V OK
type of signal at output relay contact (normally open, contact rating (SELV (ES1) must be observed): 30 V DC/0.1 A
behavior of the output voltage when switching on Overshoot of Vout approx. 3 %
response delay maximum 1 s
typical 50 ms12 A0.32 mA
rated value 10 A
rated range 0 ... 10 A; +60 ... +70 °C: Derating 2%/K (at 120 V, 230 V) or 3.5%/K (at 400 V)
supplied active power typical 240 W
at short-circuit during operation typical 30 A
at short-circuit during operation 25 ms
on short-circuiting during the start-up typical 12 A
bridging of equipment Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power 2
efficiency in percent 91 %
at rated output voltage for rated value of the output current typical 24 W
during no-load operation maximum 6 W
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical 0.1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical 3 %
load step 50 to 100% typical 2 ms
load step 100 to 50% typical 2 ms
design of the overvoltage protection < 35 V
property of the output short-circuit proof Yes
design of short-circuit protection Alternatively, constant current characteristic approx. 12 A or latching shutdown
display version for overload and short circuit LED yellow for "overload", LED red for "latching shutdown"
galvanic isolation between input and output Yes
galvanic isolation Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class Class I
protection class IP IP20
for emitted interference EN 55022 Class B
for mains harmonics limitation EN 61000-3-2
for interference immunity EN 61000-6-2
CE marking Yes
UL approval Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
UKCA marking Yes
EAC approval Yes
Regulatory Compliance Mark (RCM) Yes
NEC Class 2 No
SEMI F47 Yes
BIS Yes; R-41183539
CB-certificate Yes
MTBF at 40 °C 1 055 408 h
IECEx No
ATEX No
ULhazloc approval No
FM registration No
shipbuilding approval Yes
American Bureau of Shipping Europe Ltd. (ABS) Yes
French marine classification society (BV) No
Det Norske Veritas (DNV) Yes
Lloyds Register of Shipping (LRS) No
Environmental Product Declaration Yes
total 627.3 kg
during manufacturing 19.1 kg
during operation 607.7 kg-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage
after end of life 0.16 kg
during transport -40 ... +85 °C
during storage -40 ... +85 °C
environmental category according to IEC 60721 Climate class 3K3, 5 ... 95% no condensation
type of electrical connection screw terminal
at input L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded
at output +, -: 2 screw terminals each for 0.2 ... 2.5 mm²
for auxiliary contacts 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²
width × height × depth of the enclosure 70 × 125 × 121 mm
installation width × mounting height 70 mm × 225 mm
top 50 mm
bottom 50 mm
left 0 mm
right 0 mm
fastening method Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting Yes
S7 rail mounting No
wall mounting No
housing can be lined up Yes
net weight 0.8 kg
electrical accessories Buffer module
to website: Industry Mall https://mall.industry.siemens.com
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to web page: power supplies https://siemens.com/sitop
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
identification link Yes; acc. to IEC 61406-1:2022
other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
