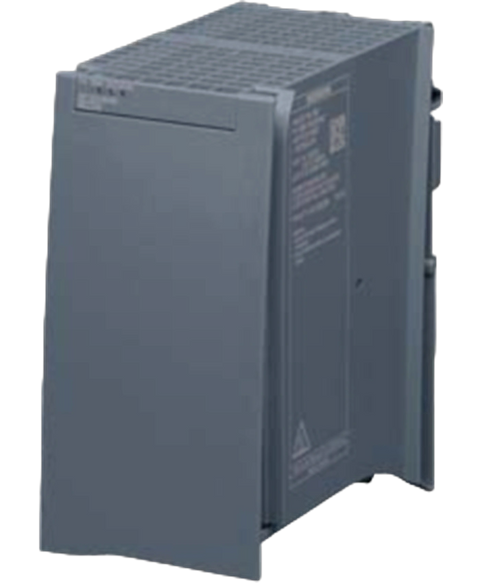

Product image for illustrative purposes only. Actual item may vary.
Siemens 6EP1333-4BA00
Siemens SIMATIC PM-1507 DIN Rail Power Supply, 24V DC 8A (192W)
This Siemens 6EP1333-4BA00 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26805600494.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$435.93
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP1333-4BA00 |
| type of the power supply network | 1-phase AC |
| supply voltage at AC | Automatic range selection |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 170 ... 264 V |
| wide range input | No |
| overvoltage overload capability | 2.3 × Vin rated, 1.3 ms |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| line frequency | 50/60 Hz45 ... 65 Hz |
| at rated input voltage 120 V | 3.7 A |
| at rated input voltage 230 V | 1.7 A |
| current limitation of inrush current at 25 °C maximum | 62 A |
| maximum | 3 ms50 mV150 mV5 ms3.5 mA |
| I2t value maximum | 12 A²·s |
| fuse protection type | T 6.3 A/250 V (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | No |
| relative overall tolerance of the voltage | 1 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.1 % |
| display version for normal operation | LED green for 24 V OK; LED red for error; LED yellow for stand-by |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 1.5 s |
| typical | 10 ms9 A1.3 mA |
| rated value | 8 A |
| rated range | 0 ... 8 A |
| supplied active power typical | 192 W |
| on short-circuiting during the start-up typical | 35 A |
| at short-circuit during operation typical | 35 A |
| on short-circuiting during the start-up | 70 ms |
| at short-circuit during operation | 70 ms |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 90 % |
| at rated output voltage for rated value of the output current typical | 21 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 2 % |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3 % |
| load step 10 to 90% typical | 5 ms |
| load step 90 to 10% typical | 5 ms |
| design of the overvoltage protection | Additional control loop, limitation (closed loop control) at < 28.8 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| response value current limitation | 8.4 ... 9.6 A |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | EN 61000-3-2 |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289 |
| UKCA marking | Yes |
| EAC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| NEC Class 2 | No |
| BIS | Yes; R-41183539 |
| CB-certificate | Yes |
| MTBF at 40 °C | 1 362 918 h |
| IECEx | No |
| ATEX | No |
| ULhazloc approval | No |
| UKEX | No |
| CCC for hazardous zone according to GB standard | No |
| FM registration | No |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | No |
| total | 589.1 kg |
| during manufacturing | 14 kg |
| during operation | 574.4 kg0 ... 60 °C; with natural convection |
| after end of life | 0.51 kg |
| in horizontal mounting position during operation | 0 ... 60 °C |
| in vertical mounting position during operation | 0 ... 40 °C |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | Screw-/spring clamp connection |
| at input | L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² |
| at output | L+, M: 2 spring-loaded terminals each for 0.5 to 2.5 mm² |
| removable terminal at input | Yes |
| removable terminal at output | Yes |
| width × height × depth of the enclosure | 75 × 147 × 129 mm |
| installation width × mounting height | 75 mm × 205 mm |
| top | 40 mm |
| bottom | 40 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Can be mounted onto S7-1500 rail |
| DIN-rail mounting | No |
| S7 rail mounting | Yes |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.74 kg |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| identification link | Yes; acc. to IEC 61406-1:2022 |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
