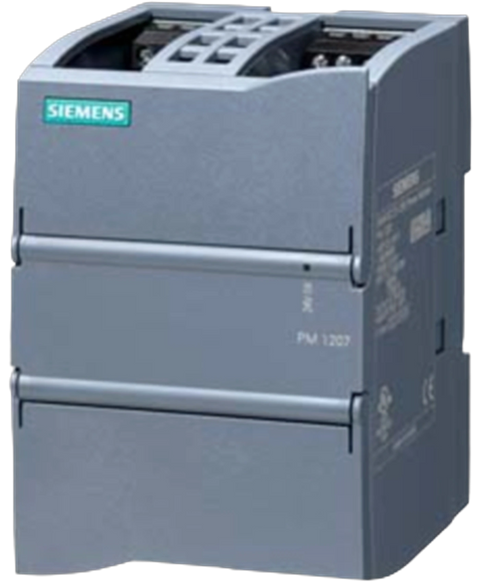

Product image for illustrative purposes only. Actual item may vary.
Siemens 6EP13321SH71
SIMATIC S7-1200 POWER MODULE PM1207 STABILIZED POWER SUPPLY INPUT: 120,230 V AC OUTPUT: 24 V DC,2.5 A
This Siemens 6EP13321SH71 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26805543765.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$147.67
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6EP1332-1SH71 |
| type of the power supply network | 1-phase AC |
| supply voltage at AC | Automatic range selection |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 176 ... 264 V |
| wide range input | No |
| overvoltage overload capability | 2.3 × Vin rated, 1.3 ms |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| line frequency | 50/60 Hz47 ... 63 Hz |
| at rated input voltage 120 V | 1.2 A |
| at rated input voltage 230 V | 0.67 A |
| current limitation of inrush current at 25 °C maximum | 13 A |
| maximum | 3 ms150 mV240 mV5 ms3.5 mA |
| I2t value maximum | 0.5 A²·s |
| fuse protection type | T 3,15 A/250 V (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| output voltage adjustable | No; - |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.2 % |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 6 s; 2 s at 230 V, 6 s at 120 V |
| typical | 10 ms2.65 A2.7 A |
| rated value | 2.5 A |
| rated range | 0 ... 2.5 A |
| supplied active power typical | 60 W |
| on short-circuiting during the start-up typical | 6 A |
| at short-circuit during operation typical | 6 A |
| on short-circuiting during the start-up | 100 ms |
| at short-circuit during operation | 100 ms |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 83 % |
| at rated output voltage for rated value of the output current typical | 12 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 3 % |
| load step 50 to 100% typical | 5 ms |
| load step 100 to 50% typical | 5 ms |
| design of the overvoltage protection | < 33 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | not applicable |
| for interference immunity | EN 61000-6-2 |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950-1, CSA C22.2 No. 60950-1) File E151273 |
| UKCA marking | Yes |
| EAC approval | Yes |
| NEC Class 2 | Yes; according to UL1310, File E151273 |
| CB-certificate | Yes |
| MTBF at 40 °C | 1 492 537 h |
| IECEx | Yes; IECEx Ex nA nC IIC T4 Gc |
| ATEX | Yes; ATEX (EX) II 3G Ex ec nC IIC T4 Gc |
| ULhazloc approval | Yes |
| UKEX | Yes |
| CCC for hazardous zone according to GB standard | Yes |
| FM registration | Yes; Class I, Div. 2, Group ABCD, T4 |
| shipbuilding approval | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (NK) | Yes |
| total | 334.2 kg |
| during manufacturing | 5.7 kg |
| during operation | 328.2 kg0 ... 60 °C; with natural convection |
| after end of life | 0.21 kg |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
| type of electrical connection | screw terminal |
| at input | L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² |
| at output | L+, M: 2 screw terminals each for 0.5 ... 2.5 mm² |
| for auxiliary contacts | - |
| width × height × depth of the enclosure | 70 × 100 × 75 mm |
| installation width × mounting height | 70 mm × 140 mm |
| top | 20 mm |
| bottom | 20 mm |
| left | 0 mm |
| right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15, wall mounting |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | Yes |
| housing can be lined up | Yes |
| net weight | 0.3 kg |
| to website: Industry Mall | https://mall.industry.siemens.com |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: power supplies | https://siemens.com/sitop |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
