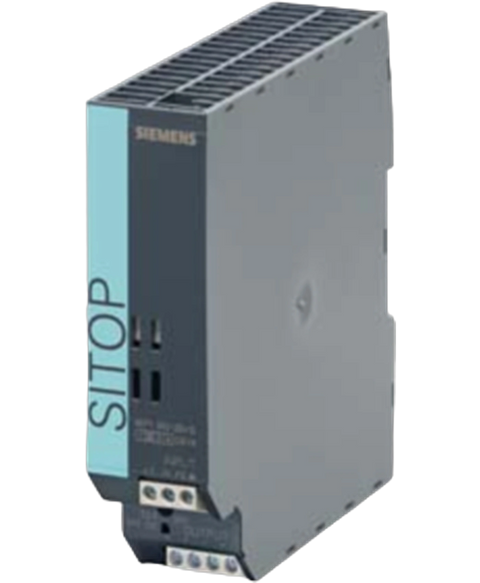

Siemens 6EP1332-2BA10
Siemens SITOP Smart power supply, 24VDC, 2.5A, 60W.
This Siemens 6EP1332-2BA10 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26842578528.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$346.47
(inc. GST)
In Stock
| type of the power supply network | 1-phase AC |
| supply voltage at AC | Set by means of selector switch on the device |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 170 ... 264 V |
| wide range input | No |
| overvoltage overload capability | 2.3 × Vin rated, 1.3 ms |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| Rated line frequency | 50/60 Hz |
| line frequency | 47 ... 63 Hz |
| at rated input voltage 120 V | 1.1 A |
| at rated input voltage 230 V | 0.65 A |
| current limitation of inrush current at 25 °C maximum | 27 A |
| typical | 3 ms10 mV50 mV50 ms5 A0.4 mA |
| I2t value maximum | 0.3 A²·s |
| fuse protection type | T 2 A/250 V (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 3 A characteristic C |
| voltage curve at output | Controlled, isolated DC voltage |
| output voltage at DC rated value | 24 V |
| at output 1 at DC rated value | 24 V |
| at output 1 at DC | 24 ... 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage initial value | 22.8 V |
| adjustable output voltage full-scale value | 28 V |
| relative overall tolerance of the voltage | 3 % |
| on slow fluctuation of input voltage | 0.1 % |
| on slow fluctuation of ohm loading | 0.5 % |
| maximum | 150 mV240 mV3.5 mA |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | Overshoot of Vout approx. 4 % |
| response delay maximum | 0.1 s |
| rated value | 2.5 A |
| rated range | 0 ... 3 A; 3 A up to +45 °C |
| supplied active power typical | 60 W |
| on short-circuiting during the start-up typical | 7 A |
| at short-circuit during operation typical | 7 A |
| on short-circuiting during the start-up | 100 ms |
| at short-circuit during operation | 200 ms |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
| efficiency in percent | 85 % |
| at rated output voltage for rated value of the output current typical | 9 W |
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1 % |
| load step 50 to 100% typical | 0.2 ms |
| load step 100 to 50% typical | 0.2 ms |
| design of the overvoltage protection | < 33 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| response value current limitation | 3.2 ... 3.4 A |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| operating resource protection class | Class I |
| protection class IP | IP20 |
| for emitted interference | EN 55022 Class B |
| for mains harmonics limitation | not applicable |
| for interference immunity | EN 61000-6-2 |
| CE mark | Yes |
| UL/CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1, UL 1604) |
| certificate of suitability EAC approval | Yes |
| certificate of suitability NEC Class 2 | No |
| CB approval | Yes |
| MTBF at 40 °C | 2 154 801 h |
| certificate of suitability IECEx | No |
| certificate of suitability ATEX | No |
| certificate of suitability ULhazloc approval | No |
| certificate of suitability cCSAus, Class 1, Division 2 | No |
| FM approval | No |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | No |
| during operation | 0 ... 60 °C; with natural convection |
| during transport | -40 ... +85 °C |
| during storage | -40 ... +85 °C |
| Humidity class according to EN 60721 | Climate class 3K3, 5 … 95% no condensation |
| Connection technology | screw-type terminals |
| Connections Supply input | L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded |
| Connections Output | L+, M: 2 screw terminals each for 0.5 ... 2.5 mm² |
| Connections Auxiliary | - |
| width × height × depth of the enclosure | 32.5 × 125 × 125 mm |
| installation width × Installation height | 32.5 × 225 mm |
| top | 50 mm |
| bottom | 50 mm |
| left | 0 mm |
| right | 0 mm |
| Installation | Snaps onto DIN rail EN 60715 35x7.5/15 |
| fastening method standard rail mounting | Yes |
| fastening method S7 rail mounting | No |
| fastening method wall mounting | No |
| housing can be lined up | Yes |
| Weight, approx. | 0.32 kg |
| to web page: selection aid TIA Selection Tool | https://siemens.com/tst |
| to website: Industrial communication | http://www.siemens.com/simatic-net |
| to website: CAx-Download-Manager | http://www.siemens.com/cax |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
