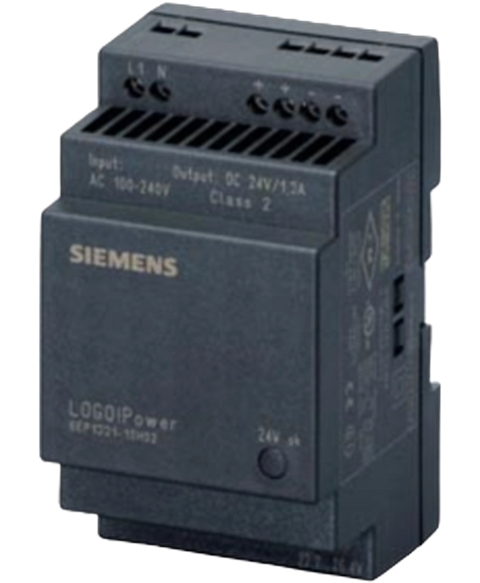

Siemens 6EP1331-1SH02
DIN Rail Power Supply, 24V 1.3A (6EP1331-1SH02)
This Siemens 6EP1331-1SH02 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26805533687.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Efficiency | 75 % |
| Height | 90 mm |
| Length | 55 mm |
| Max Operating Temperature | 55 °C |
| Max Output Current | 1.3 A |
| Max Output Power | 31.2 W |
| Max Supply Voltage | 265 V |
| Min Operating Temperature | -20 °C |
| Min Supply Voltage | 85 V |
| Mount | DIN Rail |
| Nominal Input Voltage | 264 V |
| Nominal Output Voltage | 24 V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 240 V |
| Output Current | 1.3 A |
| Output Voltage | 24 V |
| Power Rating | 31.2 W |
| RoHS | Non-Compliant |
| Tolerance | 3 % |
| Weight | 200 g |
| Width | 54 mm |
