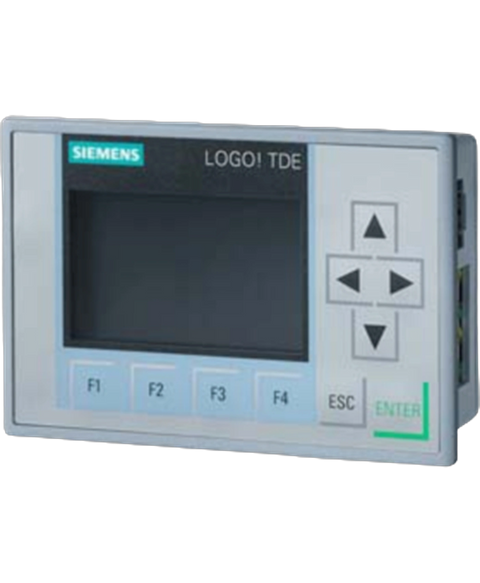

Siemens 6ED10554MH080BA1
LOGO! TD text display, 6-line, 3 background colors, 2 Ethernet ports, installation accessories for LOGO! 8
This Siemens 6ED10554MH080BA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27093511981.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | Text display |
| Suitability for use | Can be used with LOGO! 8 and higher |
| Design of display | FSTN |
| Number of lines | 6 |
| Number of characters per line | 20 |
| Type of backlighting | LED |
| System keys | Yes |
| — Number of configurable system keys | 0 |
| alphanumeric keyboard | No |
| Wall mounting/direct mounting | No |
| Type of supply voltage | AC/DC |
| Rated value (DC) | 12 V; 12/24 V DC, 24 V AC |
| Power loss, typ. | 1.8 W; At 24 V DC |
| Diagnostics function | No |
| IP (at the front) | IP65 |
| CE mark | Yes |
| UL approval | Yes |
| FM approval | Yes |
| KC approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 43 kg |
| — global warming potential, (during production) [CO2 eq] | 8.5 kg |
| — global warming potential, (during operation) [CO2 eq] | 34.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.065 kg |
| American Bureau of Shipping (ABS) | Yes |
| min. | -20 °C; No condensation-40 °C |
| max. | 55 °C70 °C |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Configuration tool | LOGO! Soft Comfort V8 |
| belongs to product | LOGO! |
| Design of housing | plastic |
| Width | 128.2 mm |
| Height | 86 mm |
| Depth | 38.7 mm |
| mounting depth | 38.7 mm |
| Weight, approx. | 220 g |
| Delivery quantity in pieces | 1 |
