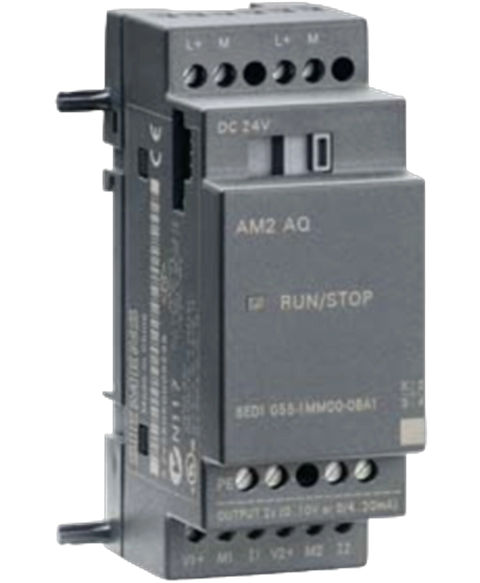

Siemens 6ED10551MM000BA1
LOGO! AM2 AQ expansion module, PS: 24 V DC, 2 AA, 0-10 V, 0,4-20 mA
This Siemens 6ED10551MM000BA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27093493906.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| Rated value (DC) | 24 V |
| Number of analog outputs | 2 |
| 0 to 10 V | Yes |
| 0 to 20 mA | Yes |
| 4 mA to 20 mA | Yes |
| Limit class B, for use in residential areas | Yes; Radio interference suppression according to EN55011, Limit Value Class B |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| certificate of suitability / according to VDE 0631 | Yes |
| Marine approval | Yes |
| min. | 0 °C |
| max. | 55 °C |
| Width | 36 mm |
| Height | 90 mm |
| Depth | 55 mm |
