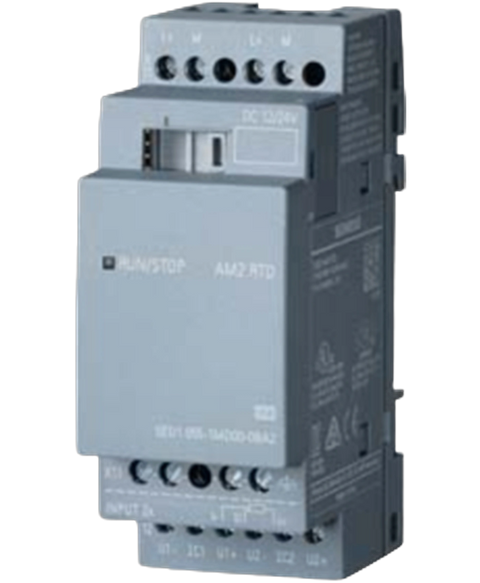

Siemens 6ED10551MD000BA2
LOGO! AM2 RTD EXPAN. MODULE, PU: DC 12,24V, 2AI, -50 ... +200 DEGR,C PT100,1000 FOR LOGO! 8
This Siemens 6ED10551MD000BA2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27093485109.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| 12 V DC | Yes; 10.8 V DC to 28.8 V DC |
| 24 V DC | Yes; 10.8 V DC to 28.8 V DC |
| Current consumption, typ. | 30 mA |
| Number of analog inputs | 2; 2 or 3 wire connection |
| Voltage | No |
| Current | No |
| Resistance thermometer | Yes; For PT100/PT1000 sensors |
| 0 to +10 V | No |
| 0 to 20 mA | No |
| Pt 100 | Yes |
| Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| Marine approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 16.5 kg |
| — global warming potential, (during production) [CO2 eq] | 3.22 kg |
| — global warming potential, (during operation) [CO2 eq] | 13.4 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.124 kg |
| min. | -20 °C; No condensation |
| max. | 55 °C |
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
