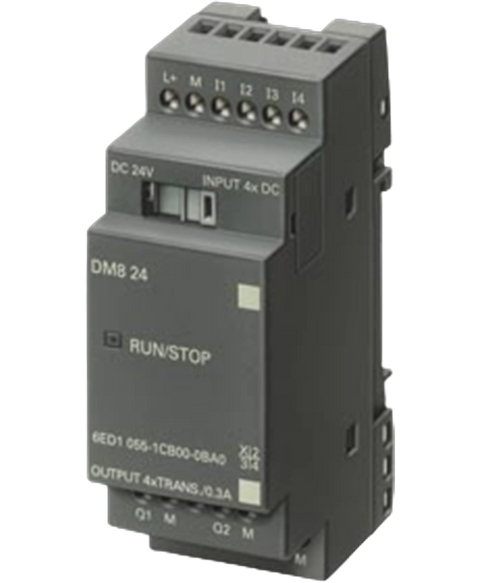

Siemens 6ED10551CB000BA0
LOGO! DM8 24 expansion module, PS,I,O: 24 V,24 V,trans., 4 DI,4 DO
This Siemens 6ED10551CB000BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27093453858.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Number of digital inputs | 4 |
| Type of input voltage | DC |
| for signal "0", max. (permissible quiescent current) | 0.85 mA |
| for signal "1", typ. | 2 mA |
| — at "0" to "1", max. | 1.5 ms |
| — at "1" to "0", max. | 1.5 ms |
| Number of digital outputs | 4 |
| Short-circuit protection | Yes |
| for signal "1" rated value | 0.3 A |
| for uprating | No |
| with resistive load, max. | 10 Hz |
| with inductive load, max. | 0.5 Hz |
| Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| certificate of suitability / according to VDE 0631 | Yes |
| Marine approval | Yes |
| min. | 0 °C |
| max. | 55 °C |
| Width | 36 mm; 2 DU |
| Height | 90 mm |
| Depth | 55 mm |
