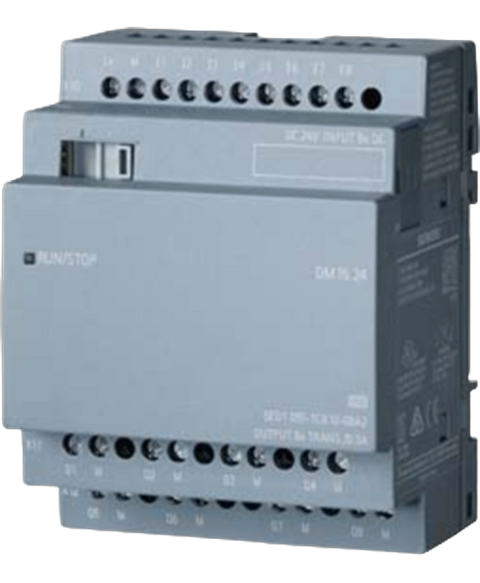

Siemens 6ED1055-1CB10-0BA2
Siemens 6ED1055-1CB10-0BA2 LOGO! DM16 24 expansion module, 8DI,8DO.
This Siemens 6ED1055-1CB10-0BA2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801444240.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
| 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Number of digital inputs | 8 |
| Type of input voltage | DC |
| for signal "0" | < 5 V DC |
| for signal "1" | > 12 V DC |
| for signal "0", max. (permissible quiescent current) | 0.85 mA |
| for signal "1", typ. | 2 mA |
| — at "0" to "1", max. | 1.5 ms |
| — at "1" to "0", max. | 1.5 ms |
| Number of digital outputs | 8 |
| Short-circuit protection | Yes |
| for signal "1" rated value | 0.3 A |
| for uprating | No |
| with resistive load, max. | 10 Hz |
| with inductive load, max. | 0.5 Hz |
| Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 59.1 kg |
| — global warming potential, (during production) [CO2 eq] | 5.82 kg |
| — global warming potential, (during operation) [CO2 eq] | 53.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.373 kg |
| min. | -20 °C; No condensation |
| max. | 55 °C |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
