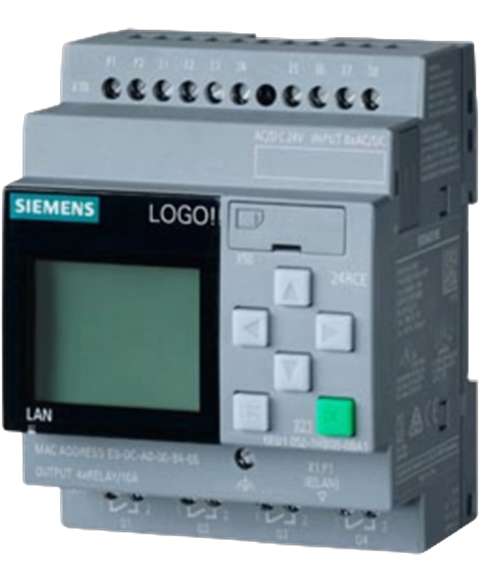

Siemens 6ED10521HB080BA2
LOGO! 24RCE, logic module,display power supply , I,O: 24 V AC,24 V DC,relay, 8 DI,4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units
This Siemens 6ED10521HB080BA2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27093386664.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| with display | Yes |
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
| 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| 24 V AC | Yes |
| permissible range, lower limit | 47 Hz |
| permissible range, upper limit | 63 Hz |
| Number | 400; Max. 400, function-specific |
| Power reserve | 480 h |
| Number of digital inputs | 8 |
| Number of digital outputs | 4; Relays |
| Short-circuit protection | No; external fusing necessary |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 10 A |
| Limit class B, for use in residential areas | Yes; Radio interference suppression according to EN55011, Limit Value Class B |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| CE mark | Yes |
| CSA approval | No; covered by UL cert |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes; in preparation |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 51.5 kg |
| — global warming potential, (during production) [CO2 eq] | 9.64 kg |
| — global warming potential, (during operation) [CO2 eq] | 42.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.364 kg |
| min. | -20 °C; No condensation-40 °C |
| max. | 55 °C70 °C |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 60 mm |
