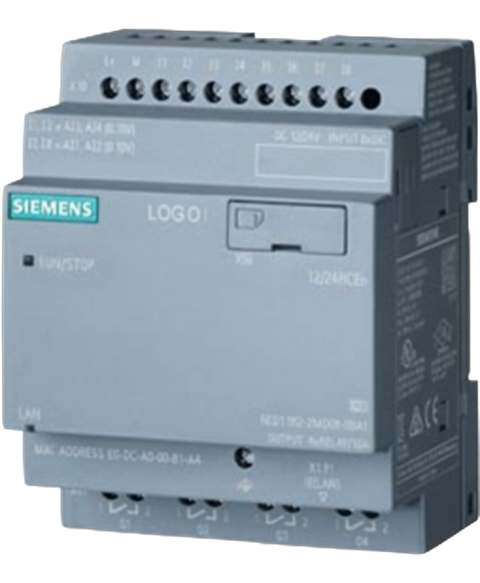

Siemens 6ED1052-2MD08-0BA1
Siemens 6ED1052-2MD08-0BA1 LOGO! logic module, 12,24VDC, 8DI,4DO, Ethernet.
This Siemens 6ED1052-2MD08-0BA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801728844.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
| 12 V DC | Yes |
| 24 V DC | Yes |
| permissible range, lower limit (DC) | 10.8 V |
| permissible range, upper limit (DC) | 28.8 V |
| Number | 400; Max. 400, function-specific |
| Power reserve | 480 h |
| Number of digital inputs | 8; Of which 4 can be used in analog mode (0 to 10 V) |
| Number of digital outputs | 4; Relays |
| Short-circuit protection | No; external fusing necessary |
| for signal "1" permissible range for 0 to 55 °C, max. | 10 A |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 10 A |
| Limit class B, for use in residential areas | Yes; Radio interference suppression according to EN55011, Limit Value Class B |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| min. | -20 °C; No condensation-40 °C |
| max. | 55 °C70 °C |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 60 mm |
