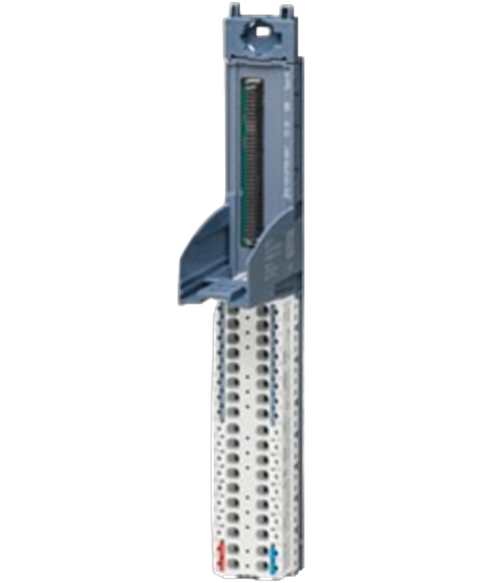

Siemens 6DL11936TP000DH1
SIMATIC ET 200SP HA, Terminal block, Type H1, 32 push-in terminals, internal reference temperature New load group, width: 22.5 mm,
This Siemens 6DL11936TP000DH1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27093320529.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | Type H1 |
| I&M data | Yes; Asset data |
| Rated value (DC) | 24 V |
| external protection for power supply lines | Yes; 24 V DC / 10 A (MCB with tripping characteristic type B or C, quick-response device protection fuse with sufficient breaking capacity, electronic fuse with characteristic according to type B or C) |
| up to 70 °C, max. | 10 A; Permitted load current of the potential group depending on the number of terminal blocks |
| For process terminals, max. | 2 A |
| Temperature sensor | Yes; For internal reference junction with connecting thermocouple |
| support of potential groups | Yes |
| New potential group | Yes |
| Potential group continued from the left | No |
| Number of slots | 1 |
| — internal temperature compensation | Yes |
| between backplane bus and supply voltage | Yes; 3 000 V DC/1 min, type test |
| between potential groups (power bus) | Yes; 1 500 V DC/1 min, type test (SELV / PELV to functional ground FE) |
| between process terminals and supply voltage | Yes; 1 500 V DC/1 min, type test |
| horizontal installation, min. | -40 °C |
| horizontal installation, max. | 70 °C |
| vertical installation, min. | -40 °C |
| vertical installation, max. | 60 °C |
| Width | 22.5 mm |
| Height | 175 mm |
| Depth | 77 mm |
| Weight, approx. | 80 g |
