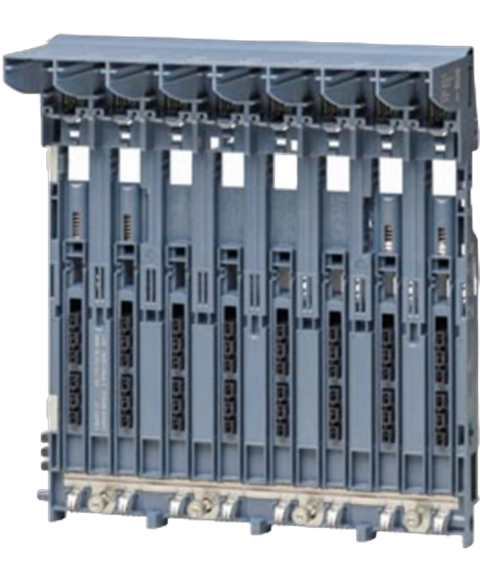

Siemens 6DL11936GC000NN0
SIMATIC ET 200SP HA, carrier module 8-fold carrier for holding 8 I,O modules of the ET 200SP HA
This Siemens 6DL11936GC000NN0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27093296044.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | Carrier module 8 times |
| I&M data | Yes; Asset data |
| support of potential groups | Yes |
| Number of slots | 8 |
| between backplane bus and supply voltage | Yes; 4 200 V DC/1 min, type test |
| between the potential groups | Yes; 3 510 V AC/ 5 s, type test (between the power supply groups; due to isolating distance (increased isolation) for future ÜK-III requirement of F technology) |
| Isolation tested with | 1 500 V DC/1 min, type test (between backplane bus and functional ground) |
| horizontal installation, min. | -40 °C |
| horizontal installation, max. | 70 °C |
| vertical installation, min. | -40 °C |
| vertical installation, max. | 60 °C |
| Width | 187.5 mm; 180 mm when installed |
| Height | 203 mm |
| Depth | 79 mm |
| Weight, approx. | 450 g |
