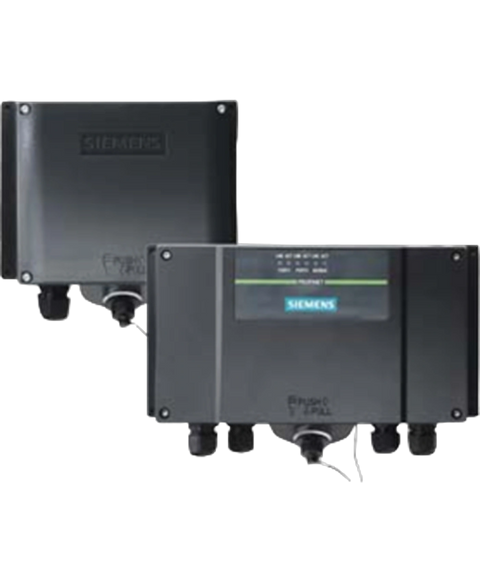

Siemens 6AV66715AE110AX0
Connection box PN plus for Mobile Panels (PROFINET)
This Siemens 6AV66715AE110AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels > Accessories range and is referenced internally as PartLogic SKU PL27093280508.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Location identifier | Yes |
| Reconnection without emergency stop circuit interruption | Yes |
| Monitoring the STOP button | Yes |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.5 A |
| Active power input, typ. | 12 W |
| Interfaces/bus type | 2x Fast Ethernet |
| Number of industrial Ethernet interfaces | 2; RJ45 not for interface boxes of mobile panels |
| Connection point identification | Yes |
| IP degree of protection | IP65 |
| CE mark | Yes |
| CSA approval | No |
| UL approval | No |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| EAC (formerly Gost-R) | No |
| Marine approval | No |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| FM Class I Division 2 | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C |
| min. | -20 °C |
| max. | 70 °C |
| Operation, max. | 85 % |
| Width | 230 mm |
| Height | 120 mm |
| Depth | 80 mm |
| Weight (without packaging) | 0.5 kg |
| free hotline | Yes |
