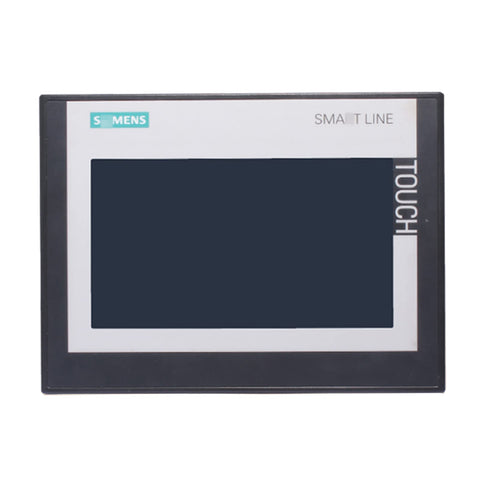

Siemens 6AV66480CC113AX0
SIMATIC HMI SMART 700 IE V3, SMART Panel, Touch operation, 7 widescreen TFT display, 65536 colors, RS422,485 interface, Ethernet (RJ45) interface, host USB type A, RTC support, with CE certificate, configurable from WinCC flexible SMART; contains open-source software, which is provided free of charge see enclosed CD
This Siemens 6AV66480CC113AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL27093275211.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$384.81
(AUD)
In Stock
| Product type designation | 700 IE V3 |
| Design of display | TFT |
| Screen diagonal | 7 in |
| Display width | 154.1 mm |
| Display height | 85.9 mm |
| Number of colors | 65 536 |
| Horizontal image resolution | 800 pixel |
| Vertical image resolution | 480 pixel |
| MTBF backlighting (at 25 °C) | 20 000 h |
| Backlight dimmable | No |
| — Number of function keys | 0 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | No |
| Numeric keyboard | Yes; Onscreen keyboard |
| alphanumeric keyboard | Yes; Onscreen keyboard |
| Design as touch screen | Yes |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 200 mA |
| Current consumption, max. | 340 mA |
| Starting current inrush I²t | 0.1 A²·s |
| Processor type | ARM, 600 MHz |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 8 Mbyte |
| Buzzer | Yes |
| Speaker | No |
| Hardware clock (real-time) | Yes |
| Software clock | Yes |
| retentive | Yes |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 1; together with RS 422 |
| Number of RS 422 interfaces | 1; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 1 |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| Industrial Ethernet status LED | 2 |
| PROFINET | No |
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | No |
| EtherNet/IP | Yes |
| MPI | No |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | No |
| DCP | No |
| LLDP | No |
| HTTP | No |
| HTML | No |
| — MRP | No |
| CAN | No |
| MODBUS | Yes |
| Diagnostic information readable | No |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | No |
| Enclosure Type 4x at the front | No |
| CE mark | Yes |
| cULus | No |
| RCM (formerly C-TICK) | No |
| KC approval | No |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| IECEx Zone 2 | No |
| IECEx Zone 22 | No |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | No |
| FM Class I Division 2 | No |
| Germanischer Lloyd (GL) | No |
| American Bureau of Shipping (ABS) | No |
| Bureau Veritas (BV) | No |
| Det Norske Veritas (DNV) | No |
| Lloyds Register of Shipping (LRS) | No |
| Nippon Kaiji Kyokai (Class NK) | No |
| Polski Rejestr Statkow (PRS) | No |
| EN 50121-4 | No |
| EN 50155 | No |
| Fire protection acc. to EN 45545-2 | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C40 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C35 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; at <40 °C (no condensation) |
| proprietary | Yes |
| Windows CE | No |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | No |
| WinCC flexible Standard | Yes; WinCC flexible Smart V3 |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | No |
| WinCC Advanced (TIA Portal) | No |
| WinCC Professional (TIA Portal) | No |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Number of Visual Basic Scripts | No |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 320 |
| Number of alarm classes | 32 |
| — Number of bit messages | 400 |
| — Number of analog messages | 20 |
| System messages HMI | Yes |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Message buffer | Ring buffer (n x 256 entries), retentive, maintenance-free |
| — Number of entries | 256 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 10 |
| Data records per recipe | 100 |
| Entries per data record | 50 |
| Size of internal recipe memory | 128 kbyte |
| Recipe memory expandable | No |
| Number of variables per device | 800 |
| Number of variables per screen | 100 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Arrays | Yes |
| Number of configurable images | 150 |
| Permanent window/default | Yes; No permanent window can be configured |
| Global image | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Number of complex objects per screen | 5 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | No |
| Sm@rtClient view | No |
| Recipe view | Yes |
| f(x) trend view | No |
| System diagnostics view | No |
| Media Player | No |
| Bar graphs | Yes |
| Sliders | No |
| Pointer instruments | No |
| Analog/digital clock | No |
| Number of text lists per project | 200 |
| Number of entries per text list | 50 |
| Number of graphics lists per project | 100 |
| Number of entries per graphics list | 50 |
| Number of archives per device | 2 |
| Number of entries per archive | 10 000 |
| Message archive | Yes |
| Process value archive | Yes |
| Archiving methods | Sequential log, circular log, alarm log, process value archive |
| — Sequential archive | Yes |
| — Memory card | No |
| — USB memory | Yes |
| — Ethernet | No |
| Data storage format | CSV file, readable, e.g. with MS Excel, MS Access |
| — CSV | No |
| — TXT | Yes |
| — RDB | No |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | No |
| Keyboard fonts | US American (English) |
| — US English | Yes |
| MPI/PROFIBUS DP | No |
| USB | No |
| Ethernet | Yes |
| using external storage medium | No |
| S7-1200 | No |
| S7-1500 | No |
| S7-200 | Yes |
| S7-300/400 | No |
| LOGO! | Yes |
| WinAC | No |
| SINUMERIK | No |
| SIMOTION | No |
| Allen Bradley (EtherNet/IP) | No |
| Allen Bradley (DF1) | No |
| Mitsubishi (MC TCP/IP) | No |
| Mitsubishi (FX) | Yes |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus TCP/IP) | No |
| Modicon (Modbus) | Yes |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | No |
| Simulation | Yes |
| Device switchover | Yes |
| Peripherals | none |
| Printer | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| USB memory | Yes |
| Plastic | Yes |
| Aluminum | No |
| Stainless steel | No |
| Width of the housing front | 209 mm |
| Height of housing front | 155 mm |
| Mounting cutout, width | 192 mm |
| Mounting cutout, height | 138 mm |
| mounting depth | 39 mm |
| Weight (without packaging) | 765 g |
