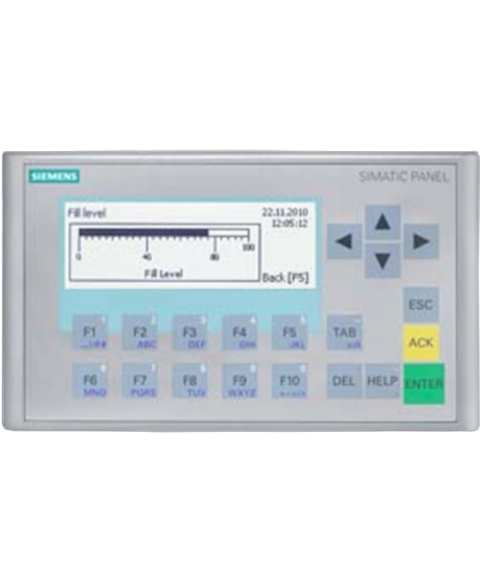

Siemens 6AV66470AH113AX0
SIMATIC HMI KP300 BASIC MONO PN, BASIC PANEL, KEY OPERATION, 3 FSTN LCD DISPLAY, MONOCHROME BLACK,WHITE, PROFINET INTERFACE, CONFIGURATION FROM WINCC BASIC V11, STEP7 BASIC V11, CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD
This Siemens 6AV66470AH113AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL27093259687.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$592.13
(AUD)
In Stock
| Product type designation | KP300 Basic mono PN |
| Design of display | FSTN |
| Screen diagonal | 3.6 in |
| Display width | 87 mm |
| Display height | 31 mm |
| Number of colors | 4; backlit display only (white, red, green, yellow) |
| Horizontal image resolution | 240 pixel |
| Vertical image resolution | 80 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Backlight dimmable | No |
| — Number of function keys | 10 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | Yes |
| Numeric keyboard | Yes; Keyboard |
| alphanumeric keyboard | Yes; Keyboard |
| Design as touch screen | No; without |
| Mounting position | vertical |
| Rack mounting | No |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | No |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.1 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 3 W |
| Processor type | RISC 32 bit |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 1 Mbyte |
| Buzzer | No |
| Speaker | No |
| Hardware clock (real-time) | No |
| Software clock | Yes |
| retentive | No |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 0 |
| Number of RS 422 interfaces | 0 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 0 |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| Industrial Ethernet status LED | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | No |
| EtherNet/IP | Yes |
| MPI | No |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | No |
| HTML | No |
| CAN | No |
| MODBUS | Yes; Modicon (MODBUS TCP/IP) |
| Diagnostic information readable | No |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | Yes |
| FM Class I Division 2 | No |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; no condensation |
| proprietary | Yes |
| Windows CE | No |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| WinCC flexible Compact | No |
| WinCC flexible Standard | No |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | Yes |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Applications/options | none |
| Web browser | No |
| SIMATIC WinCC Sm@rtServer | No |
| time-controlled | No |
| task-controlled | Yes |
| Help system | Yes |
| Number of characters per info text | 320 |
| Number of alarm classes | 32 |
| Bit messages | Yes |
| — Number of bit messages | 200 |
| Analog messages | Yes |
| — Number of analog messages | 15 |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| — Number of entries | 256 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 5 |
| Data records per recipe | 20 |
| Entries per data record | 20 |
| Size of internal recipe memory | 40 kbyte |
| Recipe memory expandable | No |
| Number of variables per device | 250 |
| Number of variables per screen | 30 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Arrays | Yes |
| Number of configurable images | 50 |
| Permanent window/default | Yes |
| Global image | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Number of objects per image | 30 |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 5 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | No |
| Sm@rtClient view | No |
| Recipe view | Yes |
| f(x) trend view | No |
| System diagnostics view | No |
| Media Player | No |
| Bar graphs | Yes |
| Sliders | No |
| Pointer instruments | No |
| Analog/digital clock | No |
| Number of text lists per project | 150 |
| Number of entries per text list | 30 |
| Number of graphics lists per project | 100 |
| Number of entries per graphics list | 30 |
| Number of archives per device | 0 |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | No |
| SIMATIC Logon | No |
| — US English | Yes |
| MPI/PROFIBUS DP | No |
| USB | No |
| Ethernet | Yes |
| using external storage medium | No |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| S7-300/400 | Yes |
| LOGO! | Yes |
| WinAC | Yes |
| SINUMERIK | No |
| SIMOTION | No |
| Allen Bradley (EtherNet/IP) | Yes |
| Allen Bradley (DF1) | No |
| Mitsubishi (MC TCP/IP) | Yes |
| Mitsubishi (FX) | No |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | No |
| Modicon (Modbus TCP/IP) | Yes |
| Modicon (Modbus) | No |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | No |
| Simulation | Yes |
| Device switchover | Yes |
| Printer | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| USB memory | No |
| Plastic | Yes |
| Aluminum | No |
| Stainless steel | No |
| Width of the housing front | 165 mm |
| Height of housing front | 97 mm |
| Mounting cutout, width | 149 mm |
| Mounting cutout, height | 82 mm |
| mounting depth | 30 mm |
| Weight (without packaging) | 0.25 kg |
| Weight (with packaging) | 0.38 kg |
