Siemens 6AV6645-0AB01-0AX0

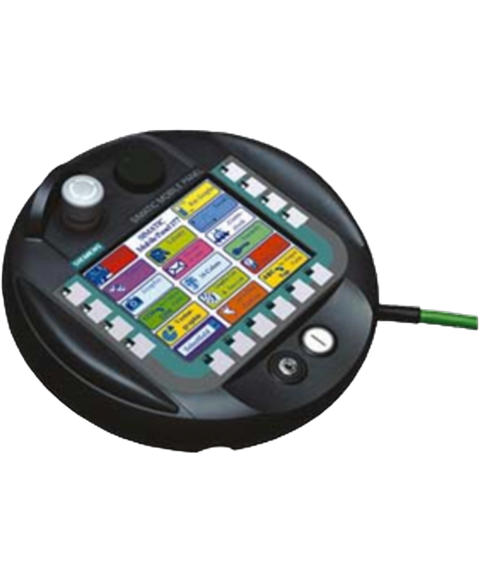

The Siemens 6AV6645-0AB01-0AX0 is a SIMATIC mobile panel 177 DP optimized for efficient interfacing in automation environments. This panel features connectivity through Profibus DP with options for panel mounting.
This Siemens 6AV6645-0AB01-0AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805672830.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$4,761.25
(AUD)
In Stock
| Product type designation | Mobile Panel 177 DP |
| Design of display | STN |
| Screen diagonal | 5.7 in |
| Color display | Yes |
| Number of colors | 256 |
| Horizontal image resolution | 320 pixel |
| Vertical image resolution | 240 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Backlight dimmable | No |
| Control elements | Keys and touch |
| — user-definable label membrane keys | Yes |
| — Number of function keys | 14 |
| — Number of function keys with LEDs | 8 |
| Keys with LED | Yes; 8 with LED |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| hexadecimal keyboard | Yes |
| Multi-key operation | Yes |
| — Number of multi-key operations | 2 |
| Design as touch screen | Yes; analog, resistive |
| Stop button | Yes |
| Acknowledgement button | Yes |
| Key-operated switch | No |
| Illuminated pushbutton | No |
| Handwheel | No |
| Design of the power supply | via connection box |
| Type of supply voltage | DC |
| Processor type | RISC 32 bit, 200 MHz |
| Type of memory | Flash / RAM |
| Memory available for user data | 2 048 kbyte |
| Buffer battery | Yes; maximum buffer time 10 min |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Interfaces/bus type | 1x RS 422,1x RS 485 (max. 12 Mbit/s) |
| Number of industrial Ethernet interfaces | 0 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1 |
| Number of USB interfaces | 0 |
| Number of wireless interfaces | 0 |
| PC card slot | No |
| CF card slot | No |
| Multimedia card/SD card slot | combined |
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| AS-Interface | No |
| TCP/IP | No |
| MODBUS | Yes |
| other bus systems | Yes |
| — Radio standard WLAN 802.11 | No |
| Certificate of suitability | CE, cULus, C-TICK, SIBE |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| Suitable for safety functions | Yes |
| Performance level according to ISO 13849-1 | d |
| cULus Class I Zone 2, Division 2 | No |
| FM Class I Division 2 | No |
| Fall height, max. | 1.5 m |
| min. | 0 °C-20 °C |
| max. | 40 °C60 °C |
| Operation, max. | 80 % |
| pre-installed operating system | Windows CE |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration tool | WinCC flexible Compact Version 2005 or higher (to be ordered separately) |
| WinCC flexible Compact | Yes |
| WinCC flexible Standard | Yes |
| WinCC flexible Advanced | Yes |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Applications/options | none |
| Web browser | No |
| Pocket Word | No |
| Pocket Excel | No |
| PDF Viewer | No |
| Media Player | No |
| SIMATIC WinCC Sm@rtServer | Yes |
| SIMATIC WinCC Audit | No |
| Connection point identification | Yes |
| Number of Visual Basic Scripts | No |
| Debugging in the simulator | No |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 70 |
| Number of alarm classes | 32 |
| Bit messages | Yes |
| — Number of bit messages | 2 000 |
| Analog messages | Yes |
| — Number of analog messages | 50 |
| Telegram message procedure Alarm S | No |
| System messages HMI | Yes |
| System messages PLC | No |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Lines | 1 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| acoustic feedback | No |
| First/last value | Yes |
| Number of recipes | 100 |
| Data records per recipe | 200 |
| Entries per data record | 200 |
| Recipe memory | 32 KB integrated Flash, expandable |
| Number of variables per device | 1 024 |
| Number of variables per screen | 50 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | Yes |
| Number of configurable images | 500 |
| Permanent window/default | Yes |
| Start screen configurable | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Text objects | 2 500 text elements |
| Number of I/O fields per image | 50 |
| Index of screen context | No |
| Return | Yes |
| Graphics object | Bit maps, vector graphics |
| Status/control | Yes; With SIMATIC S7 |
| dynamic objects | Diagrams, bar graphs, sliders, invisible buttons |
| Methods | Trend / profile |
| — Number of bars per chart | 5 |
| Limit value lines | Yes |
| Number of visible switches per project | 1 000 |
| Color change | Yes |
| X/Y movement | Yes |
| Hide | Yes |
| Angle of rotation | No |
| Number of text lists per project | 300 |
| Number of entries per text list | 30 |
| Number of graphics lists per project | 100 |
| Number of archives per device | 0 |
| Message archive | No |
| Process value archive | No |
| — Sequential archive | No |
| — Short-term archive | No |
| — USB memory | No |
| — Ethernet | No |
| — CSV | No |
| — TXT | No |
| — using trend curves | No |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Password export/import | Yes |
| Transfer of configuration | MPI/PROFIBUS DP, serial, automatic transfer recognition |
| Connection to controller | S5, S7-200, S7-300/400, TI 505, Win AC, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus), further non-Siemens drivers, see chapter "System interfaces" |
| S7-1200 | Yes; with restrictions |
| S7-1500 | Yes; with restrictions |
| S7-200 | Yes |
| — PPI (point-to-point) | Yes |
| — PPI network | Yes |
| — MPI | Yes |
| — PROFIBUS DP | Yes |
| S7-300/400 | Yes |
| — PROFINET | No |
| LOGO! | No |
| WinAC | Yes |
| SINUMERIK | Yes |
| SIMOTION | Yes |
| S5 | Yes |
| — serial | No |
| TI 505 | Yes |
| Allen Bradley (EtherNet/IP) | No |
| Allen Bradley (DF1) | Yes |
| Allen Bradley (DF485) | Yes |
| Mitsubishi (MC TCP/IP) | No |
| Mitsubishi (FX) | Yes |
| Mitsubishi (MP4) | Yes |
| Telemecanique (ADJUST) | No |
| Telemecanique (Uni-Telway) | Yes |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus TCP/IP) | No |
| Modicon (Modbus) | Yes |
| GE-Fanuc (SNP) | Yes |
| Key repeat | No |
| TAB sequence | Yes |
| Calculating functions | Yes |
| Animate | Yes |
| Menu tree editor | No |
| Unit switchover | No |
| Clean screen | No |
| Touch calibration | Yes |
| Backup/Restore manually | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Delta transfer | Yes |
| Monitoring function for battery and memory | Yes |
| Trace (operation archive) | No |
| Open Platform Program | Yes |
| Printer | Yes |
| SIMATIC HMI MM memory card: Multi Media Card | Yes |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| USB memory | No |
| Enclosure material (front) | plastic |
| Enclosure diameter | 245 mm |
| Depth of housing | 58 mm |
| Weight (without packaging) | 1.3 kg |
