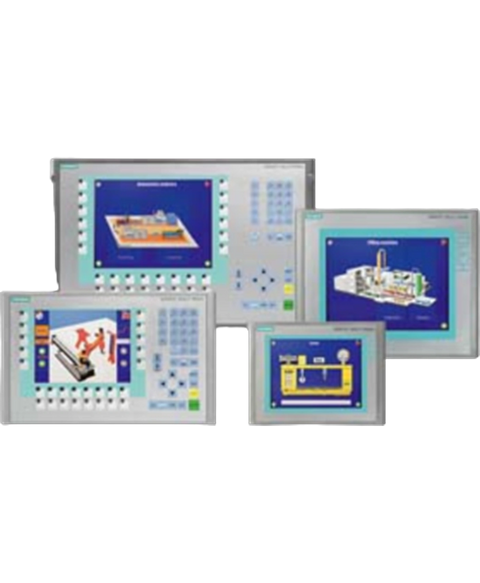

Product image for illustrative purposes only. Actual item may vary.
Siemens 6AV66430DB011AX1
SIMATIC MP 277 8 Key Multi Panel with retentive memory 7.5 TFT display, 6 MB configuration memory, configurable with WinCC flexible 2005 Standard SP1
This Siemens 6AV66430DB011AX1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL27093170327.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,247.85
(AUD)
In Stock
| Product type designation | MP277 |
| Customer-specific configuration | Yes |
| Design of display | TFT |
| Screen diagonal | 7.5 in |
| Color display | Yes |
| Number of colors | 65 536 |
| Horizontal image resolution | 640 pixel |
| Vertical image resolution | 480 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Control elements | Membrane keyboard |
| — user-definable label membrane keys | Yes |
| — Number of function keys | 26 |
| — Number of function keys with LEDs | 18 |
| System keys | Yes |
| — Number of system keys | 36 |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| Multi-key operation | Yes |
| — Number of multi-key operations | 2 |
| Design as touch screen | No; without |
| Type of connection for mouse/keyboard/barcode reader | USB / USB / USB |
| Mounting position | vertical |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Processor type | ARM |
| Type of memory | Flash / RAM |
| Memory available for user data | 6 Mbyte |
| Capacity of main memory, max. | 128 Mbyte |
| Type | Hardware clock, battery backup, synchronizable |
| retentive | Yes |
| synchronizable | Yes |
| Interfaces/bus type | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1 |
| Number of USB interfaces | 2; Up to 1 GB respectively |
| Multimedia card/SD card slot | 1x Multimedia Card slot, up to 128 MB |
| With software interfaces | No |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| TCP/IP | Yes |
| MODBUS | Yes |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | NEMA 4x (when installed) |
| Certificate of suitability | CE, UL, cULus, NEMA 4x (Enclosure Type 4X, Type 12) |
| cULus | Yes |
| Suitable for safety functions | No |
| min. | 0 °C-20 °C |
| max. | 50 °C60 °C |
| Operation, max. | 90 % |
| pre-installed operating system | Windows CE |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration tool | WinCC flexible Standard Version 2005 SP1 or higher (to be ordered separately) |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | No |
| WinCC flexible Standard | Yes |
| WinCC flexible Advanced | Yes |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 16 |
| Languages per project | 32 |
| Libraries | Yes |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 70 |
| Number of alarm classes | 32 |
| Number of messages | 4 000 |
| Bit messages | Yes |
| — Number of bit messages | 4 000 |
| Analog messages | Yes |
| — Number of analog messages | 200 |
| System messages HMI | Yes |
| System messages PLC | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Lines | 1 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| First/last value | Yes |
| Number of recipes | 300 |
| Data records per recipe | 500 |
| Entries per data record | 1 000 |
| Recipe memory | 64 KB integrated Flash, expandable |
| Number of variables per device | 2 048 |
| Number of variables per screen | 200 |
| Number of variables | 1 000 |
| Initial values | 2 048 |
| Type Date & Time | 2 048 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | Yes |
| Number of configurable images | 500 |
| Permanent window/default | Yes |
| Start screen configurable | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Text objects | 10 000 text elements |
| Number of I/O fields per image | 200 |
| Number of date/time fields | 200 |
| Return | Yes |
| Graphics object | Bit maps, icons, vector graphics |
| — Icons | 1 000 |
| Status/control | With SIMATIC S7 |
| dynamic objects | Diagrams, bar graphs, sliders, analog display, invisible buttons |
| — Number of objects per project | 1 000 |
| — Number of curve diagrams per image | 10 |
| Methods | Trend / profile |
| — Number of bars per chart | 10 |
| — Number of slides per image | 10 |
| — Number of analog indicators per image | 10 |
| Limit value lines | Yes |
| Number of alphanumerical fields | 300 |
| — alphanumeric fields per image | 200 |
| Number of numerical fields | 2 048 |
| — numerical fields per image | 200 |
| Number of password fields | 2 048 |
| Number of visible switches per project | 200 |
| — visible switches per image | 200 |
| — hidden switches per image | 200 |
| Number of status switches per project | 200 |
| — Number of status switches per image | 200 |
| Number of selector switches per project | 200 |
| — Selector switches per image | 200 |
| Number of decade switches per project | 200 |
| — Decade switches per image | 200 |
| Number of signal lamps per project | 200 |
| — Signal lamps per image | 200 |
| Color change | Yes |
| X/Y movement | Yes |
| Hide | Yes |
| Number of text lists per project | 500 |
| Number of text lists per image | 200 |
| Number of entries per text list | 256 |
| Number of graphics lists per project | 400 |
| Number of graphic lists per image | 200 |
| Number of entries per graphics list | 256 |
| Number of archives per device | 20 |
| Number of measuring points per project | 20 |
| Number of entries per archive | 10 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| Memory location | SD and MultiMediaCard |
| — Ethernet | Yes |
| — CSV | Yes |
| — using trend curves | Yes |
| cyclic | Yes |
| Tolerance | Yes |
| Change | Yes |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Password export/import | Yes |
| Recording/Printing | Alarms, report (shift report), color print, hardcopy |
| Transfer of configuration | MPI/PROFIBUS DP, USB, Ethernet, automatic transfer recognition |
| Connection to controller | S5, S7-200, S7-300/400, TI 505, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus) see chapter "System interfaces" |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| — PPI (point-to-point) | Yes |
| — PPI network | Yes |
| — MPI | Yes |
| — PROFIBUS DP | Yes |
| S7-300/400 | Yes |
| — PROFINET | Yes |
| S5 | Yes |
| TI 505 | Yes |
| Allen Bradley (DF1) | Yes |
| Allen Bradley (DF485) | Yes |
| Mitsubishi (FX) | Yes |
| Mitsubishi (MP4) | Yes |
| Telemecanique (Uni-Telway) | Yes |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus) | Yes |
| GE-Fanuc (SNP) | Yes |
| TAB sequence | Yes |
| Calculating functions | Yes |
| Animate | Yes |
| Backup/Restore manually | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Delta transfer | Yes |
| Open Platform Program | Yes |
| Peripherals | Printer, barcode reader |
| SIMATIC HMI MM memory card: Multi Media Card | Yes |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes |
| USB memory | Yes |
| Additional software components loadable | Yes |
| Width of the housing front | 362 mm |
| Height of housing front | 231 mm |
| Mounting cutout, width | 338 mm |
| Mounting cutout, height | 206 mm |
| mounting depth | 61 mm |
| Weight (without packaging) | 2.25 kg |
| free hotline | Yes |
