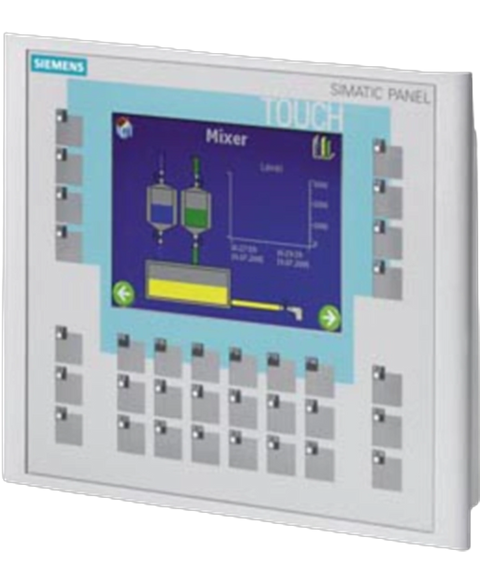

Product image for illustrative purposes only. Actual item may vary.
Siemens 6AV66420DA011AX1
SIMATIC OP 177B 6 PN,DP STN 256 color display Touch and Key MPI,PROFIBUS DP protocol RS 485,RS 422,USB interface Ethernet 10,100 interface Printer interface Slot for MMC configurable with WinCC flexible 2005
This Siemens 6AV66420DA011AX1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL27092902006.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,662.81
(AUD)
In Stock
| Product type designation | OP177B 6" PN/DP Color |
| Customer-specific configuration | Yes |
| Design of display | STN |
| Screen diagonal | 5.7 in |
| Color display | Yes |
| Number of colors | 256 |
| Horizontal image resolution | 320 pixel |
| Vertical image resolution | 240 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Control elements | Touch screen and membrane keyboard |
| — user-definable label membrane keys | Yes |
| — Number of function keys | 32 |
| — Number of function keys with LEDs | 26 |
| System keys | No |
| — Number of system keys | 0 |
| — Number of configurable system keys | 32 |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| hexadecimal keyboard | Yes |
| Multi-key operation | Yes |
| Design as touch screen | Yes; analog, resistive |
| Type of connection for mouse/keyboard/barcode reader | USB / USB / USB |
| Mounting position | vertical |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Current consumption (rated value) | 0.24 A |
| Starting current inrush I²t | 0.5 A²·s |
| Processor type | ARM, 200 MHz |
| Type of memory | Flash / RAM |
| Memory available for user data | 2 048 kbyte |
| Type | Hardware clock, synchronizable, no battery backup |
| retentive | No |
| synchronizable | Yes |
| Interfaces/bus type | RS 232 optional, 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) (max. 12 Mbit/s) |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1 |
| Number of USB interfaces | 1; Up to 1 GB |
| PC card slot | No |
| CF card slot | No |
| Multimedia card/SD card slot | combined, as of E version 016 in conjunction with WinCC flexible 2008 SP1 |
| With software interfaces | No |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| TCP/IP | Yes |
| Sm@rtServer | Yes |
| MODBUS | Yes |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | NEMA 4x, NEMA 12 (when installed) |
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| EAC (formerly Gost-R) | No |
| Suitable for safety functions | No |
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 |
| ATEX Zone 22 | No; certificate no longer available as of 1 October 2020 |
| FM Class I Division 2 | Yes |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| min. | 0 °C-20 °C |
| max. | 50 °C60 °C |
| Operation, max. | 90 % |
| pre-installed operating system | Windows CE |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration tool | WinCC flexible Compact Version 2005 or higher (to be ordered separately) |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | Yes |
| WinCC flexible Standard | Yes |
| WinCC flexible Advanced | Yes |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 70 |
| Number of alarm classes | 32 |
| Number of messages | 2 000 |
| Bit messages | Yes |
| — Number of bit messages | 2 000 |
| Analog messages | Yes |
| — Number of analog messages | 50 |
| Telegram message procedure Alarm S | No |
| System messages HMI | Yes |
| System messages PLC | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Lines | 1 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| — Number of acknowledgement groups | 99 |
| acoustic feedback | No |
| First/last value | Yes |
| Number of recipes | 100 |
| Data records per recipe | 200 |
| Entries per data record | 200 |
| Recipe memory | 32 KB integrated Flash, expandable |
| Number of variables per device | 1 000 |
| Number of variables per screen | 50 |
| Number of variables | 1 000 |
| Initial values | 1 000 |
| Type Date & Time | 1 000 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Number of configurable images | 500 |
| Permanent window/default | Yes |
| Start screen configurable | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Text objects | 2 500 text elements |
| Number of I/O fields per image | 50 |
| Number of date/time fields | 30 |
| Index of screen context | No |
| Return | Yes |
| Graphics object | Bit maps, icons, icon (full-screen), vector graphics |
| — Icons | 500 |
| — Icon (full screen) | 50 |
| Status/control | Yes; With SIMATIC S7 |
| dynamic objects | Diagrams, bar graphs, sliders, analog display, invisible buttons |
| — Number of objects per project | 500 |
| — Number of curve diagrams per image | 5 |
| Methods | Trend |
| — Number of bars per chart | 5 |
| — Number of slides per image | 0 |
| — Number of analog indicators per image | 0 |
| Limit value lines | Yes |
| Number of alphanumerical fields | 1 000 |
| — alphanumeric fields per image | 100 |
| Number of numerical fields | 1 000 |
| — numerical fields per image | 100 |
| Number of password fields | 1 000 |
| Number of visible switches per project | 1 000 |
| — visible switches per image | 100 |
| — hidden switches per image | 100 |
| Number of status switches per project | 1 000 |
| — Number of status switches per image | 100 |
| Number of selector switches per project | 1 000 |
| — Selector switches per image | 100 |
| Number of decade switches per project | 0 |
| — Decade switches per image | 0 |
| Number of signal lamps per project | 1 000 |
| — Signal lamps per image | 100 |
| Color change | Yes |
| X/Y movement | Yes |
| Hide | Yes |
| Angle of rotation | No |
| Number of text lists per project | 300 |
| Number of text lists per image | 10 |
| Number of entries per text list | 30 |
| Number of graphics lists per project | 100 |
| Number of graphic lists per image | 10 |
| Number of entries per graphics list | 30 |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Password export/import | Yes |
| PC card | No |
| CF card | No |
| Recording/Printing | Alarms, report (shift report), color print, hardcopy |
| Transfer of configuration | MPI/PROFIBUS DP, serial, USB, Ethernet, by means of external storage medium, automatic transfer recognition |
| Connection to controller | S5, S7-200, S7-300/400, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen Bradley (DF1), Mitsubishi (FX), Telemecanique (ADJUST), Modicon (Modbus), further non-Siemens drivers, see chapter "System interfaces" |
| S7-1200 | Yes |
| S7-1500 | No |
| S7-200 | Yes |
| — PPI (point-to-point) | Yes |
| — PPI network | No |
| — MPI | Yes |
| — PROFIBUS DP | Yes |
| — Ethernet | Yes |
| S7-300/400 | Yes |
| — PROFINET | Yes |
| S5 | Yes; only PROFIBUS DP |
| — serial | No |
| TI 505 | No |
| Allen Bradley (DF1) | Yes |
| Allen Bradley (DF485) | Yes |
| Mitsubishi (FX) | Yes |
| Telemecanique (ADJUST) | No |
| Telemecanique (Uni-Telway) | Yes; Only in combination with WinCC flexible |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus) | Yes |
| Key repeat | No |
| TAB sequence | Yes |
| Calculating functions | Yes |
| Animate | Yes |
| Menu tree editor | Yes |
| Unit switchover | No |
| Clean screen | Yes |
| Touch calibration | Yes |
| Backup/Restore manually | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Delta transfer | Yes |
| Monitoring function for battery and memory | No |
| Trace (operation archive) | No |
| Open Platform Program | Yes |
| Peripherals | Printer |
| SIMATIC HMI MM memory card: Multi Media Card | Yes |
| Additional software components loadable | Yes |
| Width of the housing front | 243 mm |
| Height of housing front | 212 mm |
| Mounting cutout, width | 229 mm |
| Mounting cutout, height | 196 mm |
| mounting depth | 45 mm |
| Weight (without packaging) | 1 kg |
| free hotline | Yes |
