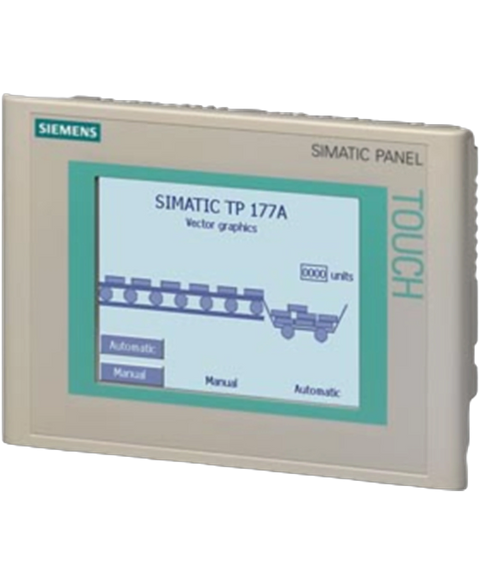

Product image for illustrative purposes only. Actual item may vary.
Siemens 6AV6642-0AA11-0AX1
The Siemens 6AV6642-0AA11-0AX1 is a Human-Machine Interface (HMI) panel from the SIMATIC series. This device operates on a rated supply voltage of 24 VDC and consumes 240 mA of current. Designed for user interaction through touch, it features a 5.7-inch display size.
This Siemens 6AV6642-0AA11-0AX1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26801397970.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$587.87
(AUD)
In Stock
| Product type designation | TP 177A |
| Design of display | STN |
| Screen diagonal | 5.7 in |
| Color display | No |
| Number of colors | 2; Blue levels |
| Horizontal image resolution | 320 pixel |
| Vertical image resolution | 240 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Control elements | Touch screen |
| Function keys | No |
| — Number of function keys | 0 |
| System keys | No |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| hexadecimal keyboard | Yes |
| Multi-key operation | No |
| Design as touch screen | Yes; analog, resistive |
| Type of connection for mouse/keyboard/barcode reader | - / - / - |
| Mounting position | vertical |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Current consumption (rated value) | 0.24 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 6 W |
| Processor type | ARM |
| Type of memory | Flash / RAM |
| Memory available for user data | 512 kbyte |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Type | Software clock, no battery backup |
| retentive | No |
| synchronizable | No |
| Interfaces/bus type | 1x RS 422, 1x RS 485 (max. 1.5 Mbit/s) |
| Number of industrial Ethernet interfaces | 0 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1 |
| Number of USB interfaces | 0 |
| PC card slot | No |
| CF card slot | No |
| Multimedia card/SD card slot | No |
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| TCP/IP | No |
| MODBUS | No |
| other bus systems | Yes |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | NEMA 4x (when installed) |
| Certificate of suitability | CE, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, UL, CSA, cULus, EX-Zone 2 (in Vorbereitung), EX-Zone 22 (in Vorbereitung), C-TICK, NEMA 4x |
| cULus | Yes |
| EAC (formerly Gost-R) | No |
| Suitable for safety functions | No |
| ATEX Zone 2 | Yes |
| ATEX Zone 22 | Yes |
| FM Class I Division 2 | Yes |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| min. | 0 °C-20 °C |
| max. | 50 °C60 °C |
| Operation, max. | 90 % |
| pre-installed operating system | LINUX |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration tool | WinCC flexible Compact Version 2004 SP1 or higher (to be ordered separately) |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | Yes |
| WinCC flexible Standard | Yes |
| WinCC flexible Advanced | Yes |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Debugging in the simulator | No |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 70 |
| Number of tooltips | 0 |
| Number of alarm classes | 32 |
| Number of messages | 1 000 |
| Bit messages | Yes |
| — Number of bit messages | 1 000 |
| Analog messages | Yes |
| — Number of analog messages | 20 |
| Telegram message procedure Alarm S | No |
| System messages HMI | Yes |
| System messages PLC | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Lines | 1 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| acoustic feedback | No |
| First/last value | Yes |
| Number of recipes | 5 |
| Data records per recipe | 20 |
| Entries per data record | 20 |
| Recipe memory | 32 KB integrated Flash |
| Number of variables per device | 500 |
| Number of variables per screen | 30 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Number of configurable images | 250 |
| Permanent window/default | Yes |
| Start screen configurable | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Text objects | 1 000 text elements |
| Number of I/O fields per image | 30 |
| Index of screen context | No |
| Return | No |
| Graphics object | Bit maps, icons, icon (full-screen), vector graphics |
| — Icons | 1 |
| — Icon (full screen) | 1 |
| Status/control | Not possible |
| dynamic objects | Diagrams, bar graphs |
| — Number of bars per chart | 5 |
| Limit value lines | Yes |
| Color change | No |
| X/Y movement | No |
| Hide | Yes |
| Angle of rotation | No |
| Number of text lists per project | 300 |
| Number of graphics lists per project | 100 |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Password export/import | Yes |
| PC card | No |
| CF card | No |
| Transfer of configuration | MPI/PROFIBUS DP, serial, automatic transfer recognition |
| Connection to controller | S7-200, S7- 300/400, Win AC see section on "System interfaces" |
| S7-200 | Yes |
| — PPI (point-to-point) | Yes |
| — PPI network | Yes |
| — MPI | Yes |
| — PROFIBUS DP | YesNo |
| — Ethernet | No |
| S7-300/400 | Yes |
| — PROFINET | No |
| S5 | No |
| — serial | No |
| TI 505 | No |
| Allen Bradley (DF1) | No |
| Allen Bradley (DF485) | No |
| Mitsubishi (FX) | No |
| Mitsubishi (MP4) | No |
| Telemecanique (ADJUST) | No |
| Telemecanique (Uni-Telway) | No |
| OMRON (LINK/Multilink) | No |
| Modicon (Modbus) | No |
| GE-Fanuc (SNP) | No |
| Key repeat | No |
| TAB sequence | Yes |
| Calculating functions | Yes |
| Animate | No |
| Menu tree editor | No |
| Unit switchover | No |
| Clean screen | Yes |
| Touch calibration | Yes |
| Backup/Restore manually | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Delta transfer | No |
| Monitoring function for battery and memory | No |
| Trace (operation archive) | No |
| Open Platform Program | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| Additional software components loadable | Yes |
| Width of the housing front | 212 mm |
| Height of housing front | 156 mm |
| Mounting cutout, width | 198 mm |
| Mounting cutout, height | 142 mm |
| Overall depth | 44 mm |
| Weight (without packaging) | 0.75 kg |
| free hotline | Yes |
