Siemens 6AV6640-0CA11-0AX1

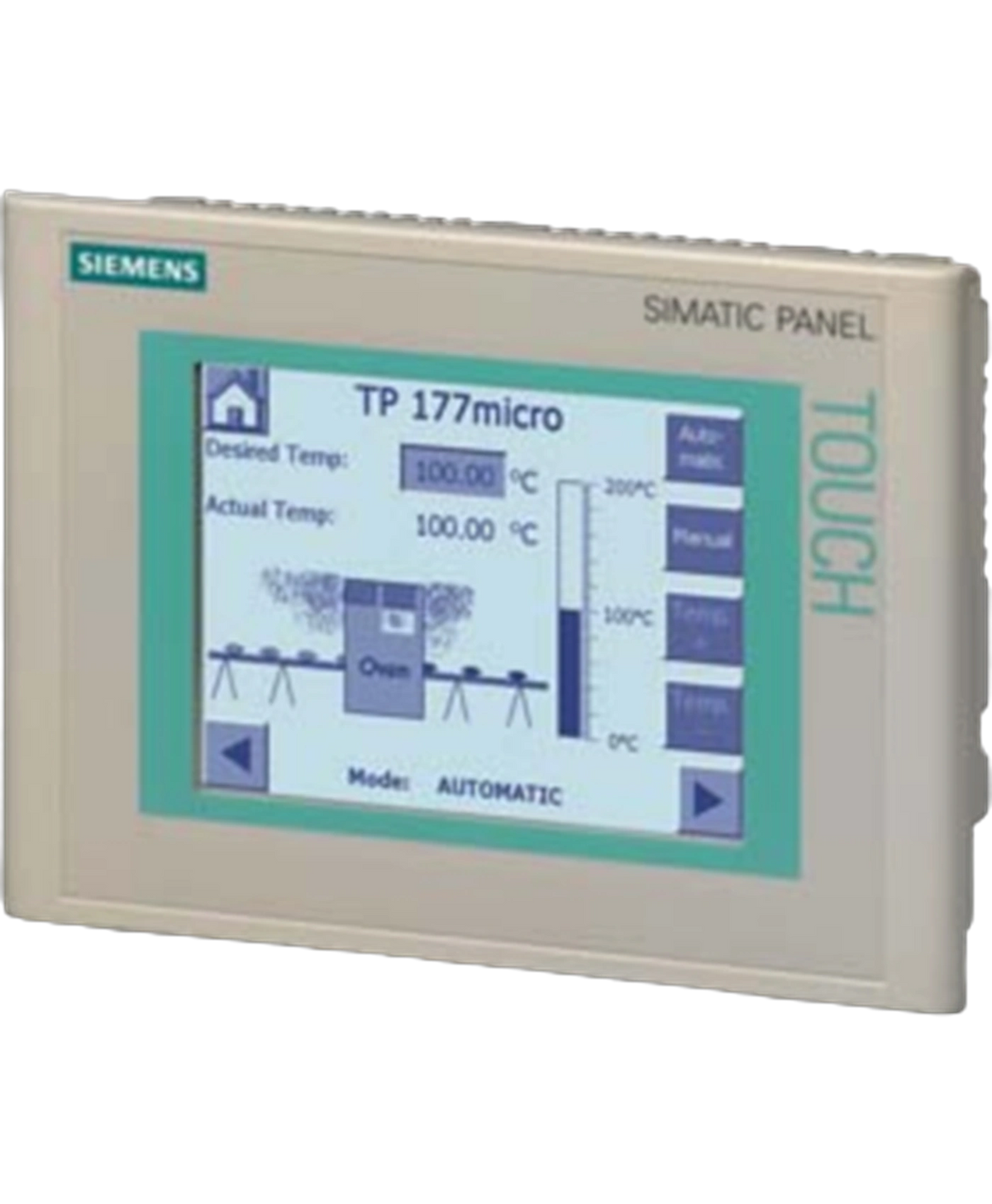

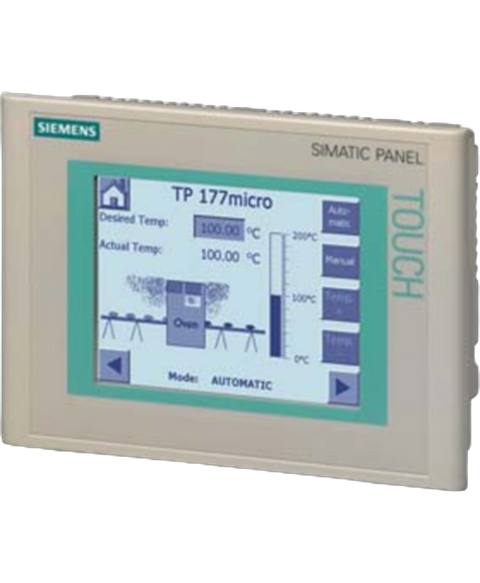

The Siemens 6AV6640-0CA11-0AX1 is a 5.7-inch SIMATIC HMI panel that enables intuitive touch operation. With a resolution of 320 x 240 pixels and a display type of STN featuring four blue levels, this device allows for clear visualization of data and controls.
This Siemens 6AV6640-0CA11-0AX1 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26801819544.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$989.73
(AUD)
In Stock
| Product type designation | TP 177micro |
| Design of display | STN |
| Screen diagonal | 5.7 in |
| Color display | No |
| Number of colors | 4; Blue levels |
| Horizontal image resolution | 320 pixel |
| Vertical image resolution | 240 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h |
| Control elements | Touch screen |
| — user-definable label membrane keys | No |
| Function keys | No |
| — Number of function keys | 0 |
| System keys | No |
| — Number of system keys | 0 |
| Numeric keyboard | Yes |
| alphanumeric keyboard | Yes |
| hexadecimal keyboard | Yes |
| Multi-key operation | No |
| Design as touch screen | Yes; analog, resistive |
| Mounting position | vertical |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Current consumption (rated value) | 0.24 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 6 W |
| Processor type | ARM |
| Type of memory | Flash |
| Memory available for user data | 256 kbyte |
| Type | Software clock, no battery backup |
| retentive | No |
| synchronizable | No |
| Interfaces/bus type | 1x RS 485 (max. 187.5 kbit/s) |
| Number of industrial Ethernet interfaces | 0 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 0 |
| Number of USB interfaces | 0 |
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| TCP/IP | No |
| MODBUS | No |
| other bus systems | Yes |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | NEMA 4x (when installed) |
| Certificate of suitability | CE, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, UL, CSA, cULus, EX-Zone 2 (in Vorbereitung), EX-Zone 22 (in Vorbereitung), C-TICK, NEMA 4x |
| cULus | Yes |
| EAC (formerly Gost-R) | No |
| Suitable for safety functions | No |
| ATEX Zone 2 | Yes |
| ATEX Zone 22 | Yes |
| FM Class I Division 2 | Yes |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| min. | 0 °C-20 °C |
| max. | 50 °C60 °C |
| Operation, max. | 90 % |
| pre-installed operating system | LINUX |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | No |
| Configuration tool | WinCC flexible Micro Version 2004 SP1, HSP or higher (to be ordered separately) |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | Yes |
| WinCC flexible Standard | Yes |
| WinCC flexible Advanced | Yes |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | No |
| WinCC Advanced (TIA Portal) | No |
| WinCC Professional (TIA Portal) | No |
| Number of online/runtime languages | 5 |
| Languages per project | 32 |
| Libraries | Yes |
| Task planner | Yes |
| Help system | Yes |
| Number of characters per info text | 320 |
| Number of tooltips | 0 |
| Number of alarm classes | 32 |
| Number of messages | 500 |
| Bit messages | Yes |
| — Number of bit messages | 500 |
| Analog messages | Yes |
| — Number of analog messages | 20 |
| Telegram message procedure Alarm S | No |
| System messages HMI | Yes |
| System messages PLC | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Lines | 1 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| acoustic feedback | No |
| First/last value | Yes |
| Number of variables per device | 250 |
| Number of variables per screen | 20 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Number of configurable images | 250 |
| Permanent window/default | Yes |
| Start screen configurable | Yes |
| Image selection by PLC | No |
| Image number in the PLC | No |
| Text objects | 500 text elements |
| Number of I/O fields per image | 20 |
| Number of date/time fields | 0 |
| Index of screen context | No |
| Return | No |
| Graphics object | Bit maps, icons, icon (full-screen), vector graphics |
| — Icons | 1 |
| — Icon (full screen) | 1 |
| Status/control | Not possible |
| dynamic objects | Diagrams, bar graphs |
| — Number of curves per diagram | 1 |
| — Number of bars per chart | 5 |
| — Number of slides per image | 0 |
| — Number of analog indicators per image | 0 |
| Limit value lines | Yes |
| Number of alphanumerical fields | 0 |
| — alphanumeric fields per image | 0 |
| Number of numerical fields | 0 |
| — numerical fields per image | 0 |
| Number of password fields | 0 |
| Number of visible switches per project | 0 |
| — visible switches per image | 0 |
| — hidden switches per image | 0 |
| Number of status switches per project | 0 |
| — Number of status switches per image | 0 |
| Number of selector switches per project | 0 |
| — Selector switches per image | 0 |
| Number of decade switches per project | 0 |
| — Decade switches per image | 0 |
| Number of signal lamps per project | 0 |
| — Signal lamps per image | 0 |
| Color change | No |
| X/Y movement | No |
| Hide | Yes |
| Angle of rotation | No |
| Number of text lists per project | 150 |
| Number of graphics lists per project | 100 |
| Number of user groups | 1 |
| number of users / for WinCC in the TIA Portal | 1 |
| Password export/import | Yes |
| Transfer of configuration | serial |
| Connection to controller | for S7-200, see section on "System interfaces" |
| S7-200 | Yes |
| — PPI (point-to-point) | Yes |
| — PPI network | Yes |
| — MPI | YesNo |
| — PROFIBUS DP | No |
| S7-300/400 | No |
| — PROFINET | No |
| S5 | No |
| — serial | No |
| TI 505 | No |
| Allen Bradley (DF1) | No |
| Allen Bradley (DF485) | No |
| Mitsubishi (FX) | No |
| Mitsubishi (MP4) | No |
| Telemecanique (ADJUST) | No |
| Telemecanique (Uni-Telway) | No |
| OMRON (LINK/Multilink) | No |
| Modicon (Modbus) | No |
| GE-Fanuc (SNP) | No |
| Key repeat | No |
| TAB sequence | Yes |
| Calculating functions | Yes |
| Animate | No |
| Menu tree editor | No |
| Unit switchover | No |
| Clean screen | Yes |
| Touch calibration | Yes |
| Backup/Restore manually | Yes |
| Simulation | No |
| Device switchover | Yes |
| Delta transfer | No |
| Monitoring function for battery and memory | No |
| Trace (operation archive) | No |
| Open Platform Program | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| Additional software components loadable | Yes |
| Width of the housing front | 212 mm |
| Height of housing front | 156 mm |
| Mounting cutout, width | 198 mm |
| Mounting cutout, height | 142 mm |
| Overall depth | 45 mm |
| Weight (without packaging) | 0.75 kg |
| free hotline | Yes |
