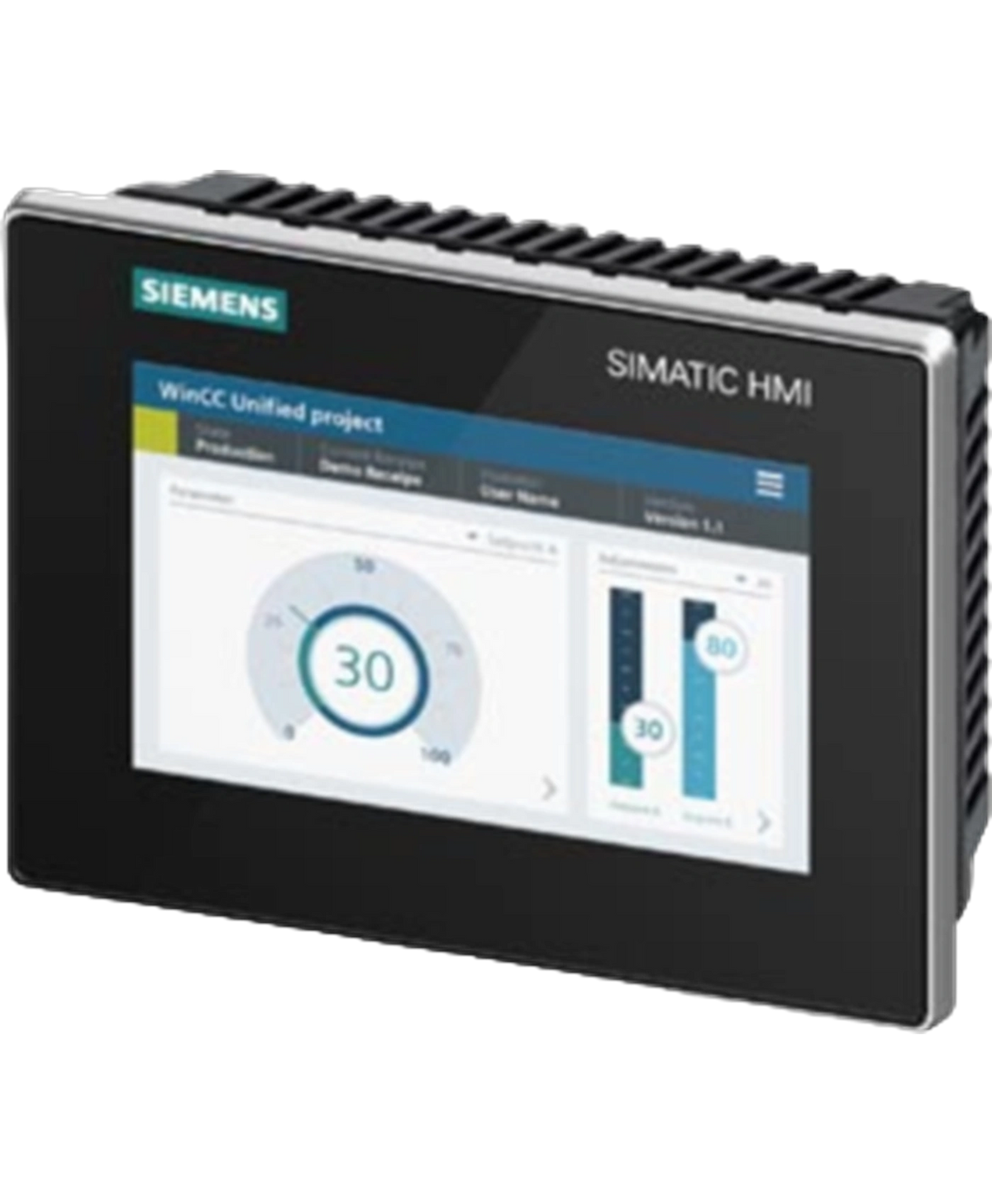

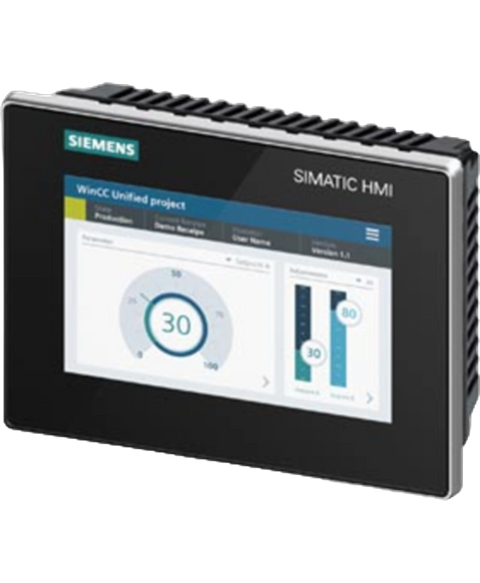

Siemens 6AV2128-3GB06-0AX0
Mean Well GST25B05-P1J power supply, 5V, 4A, 20W.
This Siemens 6AV2128-3GB06-0AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL27023103930.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,027.75
(AUD)
In Stock
| Product type designation | MTP700 Unified Comfort |
| Design of display | TFT |
| Screen diagonal | 7 in |
| Display width | 152.4 mm |
| Display height | 91.4 mm |
| Number of colors | 16 777 216 |
| Horizontal image resolution | 800 pixel |
| Vertical image resolution | 480 pixel |
| MTBF backlighting (at 25 °C) | 50 000 h; At 25°C |
| Backlight dimmable | Yes; 5-100 % |
| Numeric keyboard | Yes; Onscreen keyboard |
| alphanumeric keyboard | Yes; Onscreen keyboard |
| Design as touch screen | Yes |
| Design as multi-touch screen | Yes |
| Mounting position | vertical |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.45 A |
| Current consumption, max. | 1 A |
| Starting current inrush I²t | 0.5 A²·s |
| Flash | Yes |
| RAM | Yes |
| Buzzer | Yes |
| Speaker | No |
| Hardware clock (real-time) | Yes |
| Software clock | Yes |
| retentive | Yes; Back-up duration typically 6 weeks |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Number of SD card slots | 2 |
| Industrial Ethernet status LED | 2 |
| Number of ports of the integrated switch | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | No |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| — MRP | Yes |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4x at the front | Yes |
| Enclosure Type 12 at the front | No |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| CCC | No |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 196 kg |
| — global warming potential, (during production) [CO2 eq] | 41.6 kg |
| — global warming potential, (during operation) [CO2 eq] | 159 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -4.38 kg |
| ATEX Zone 2 | No; in preparation |
| ATEX Zone 22 | No; in preparation |
| IECEx Zone 2 | No; in preparation |
| IECEx Zone 22 | No; in preparation |
| cULus Class I Zone 2, Division 2 | No; in preparation |
| cULus Class II Division 2 | No |
| FM Class I Division 2 | No; in preparation |
| FM Class II Division 2 | No |
| Germanischer Lloyd (GL) | No; in preparation |
| American Bureau of Shipping (ABS) | No; in preparation |
| Bureau Veritas (BV) | No; in preparation |
| Det Norske Veritas (DNV) | No; in preparation |
| Lloyds Register of Shipping (LRS) | No; in preparation |
| Nippon Kaiji Kyokai (Class NK) | No; in preparation |
| Chinese Classification Society (CCS) | No; in preparation |
| Suited for indoor use | Yes |
| Suited for outdoor use | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C40 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C35 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; no condensation |
| proprietary | Yes |
| Message indicator | YesNo |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| WinCC Unified Comfort Engineering (TIA Portal) | Yes |
| WinCC Unified PC Engineering (TIA Portal) | Yes |
| Number of online/runtime languages | 32 |
| Languages per project | 32 |
| Libraries | Yes |
| Writer | Yes |
| Calc | Yes |
| Web browser | Yes |
| PDF Viewer | Yes |
| Media Player | Yes |
| SIMATIC WinCC Sm@rtServer | Yes |
| SIMATIC WinCC Audit | No |
| Unified Collaboration | Yes |
| Number of Visual Basic Scripts | No |
| JavaScript | Yes |
| time-controlled | Yes |
| task-controlled | Yes |
| Number of characters per info text | 70 |
| Number of message texts per message | 10 |
| Number of alarm classes | 32 |
| — Number of bit messages | 9 000 |
| — Number of analog messages | 300 |
| S7 alarm number procedure | Yes |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Number of characters per message | 512 |
| Number of process values per message | 10 |
| Acknowledgment groups | Yes |
| Message buffer | Yes; Configured as alarm archive |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of parameter set types | 750 |
| Parameter sets per parameter set type | 2 000 |
| Entries per parameter set | 1 000 |
| Size of internal parameter set memory | 12 Mbyte |
| Parameter set memory expandable | Yes |
| Number of variables per device | 8 000 |
| Number of variables per screen | 600 |
| Limit values | Yes |
| Structures | Yes |
| Arrays | Yes |
| Number of configurable images | 1 200 |
| Faceplate | Yes |
| Number of objects per image | 800 |
| Picture window | Yes |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Scalable Vector Graphics (SVG) | Yes |
| Date/time fields | Yes |
| Checkbox | Yes |
| Option button | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Custom web display | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 40 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | No |
| Parameter set display | Yes |
| HTML browser | Yes |
| Bar graphs | Yes |
| Sliders | Yes |
| Pointer instruments | Yes |
| Analog/digital clock | Yes |
| Number of text lists per project | 750 |
| Number of entries per text list | 750 |
| Number of graphics lists per project | 750 |
| Number of entries per graphics list | 750 |
| Number of archives per device | 50 |
| Number of entries per archive | 500 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| — Memory card | Yes |
| — USB memory | Yes |
| — Ethernet | No |
| Number of roles | 50 |
| Number of function rights | 0; V16 |
| Number of users | 200 |
| Password export/import | Yes |
| Central user administration | Yes; as of WinCC V17 |
| USB | No |
| Ethernet | Yes |
| using external storage medium | Yes; as of WinCC Unified V17 |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | No |
| S7-300/400 | Yes |
| Number of S7 connections | 16 |
| LOGO! | No |
| SIMOTION | No |
| OPC UA Client | Yes |
| OPC UA Server | Yes |
| Software Controller/Open Controller | Yes |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Peripherals | Printer, barcode reader |
| Printer | Yes |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
| Network camera | No |
| Aluminum | Yes |
| Width of the housing front | 214 mm |
| Height of housing front | 158 mm |
| Mounting cutout, width | 197 mm |
| Mounting cutout, height | 141 mm |
| mounting depth | 64 mm |
| Weight (without packaging) | 1.4 kg |
