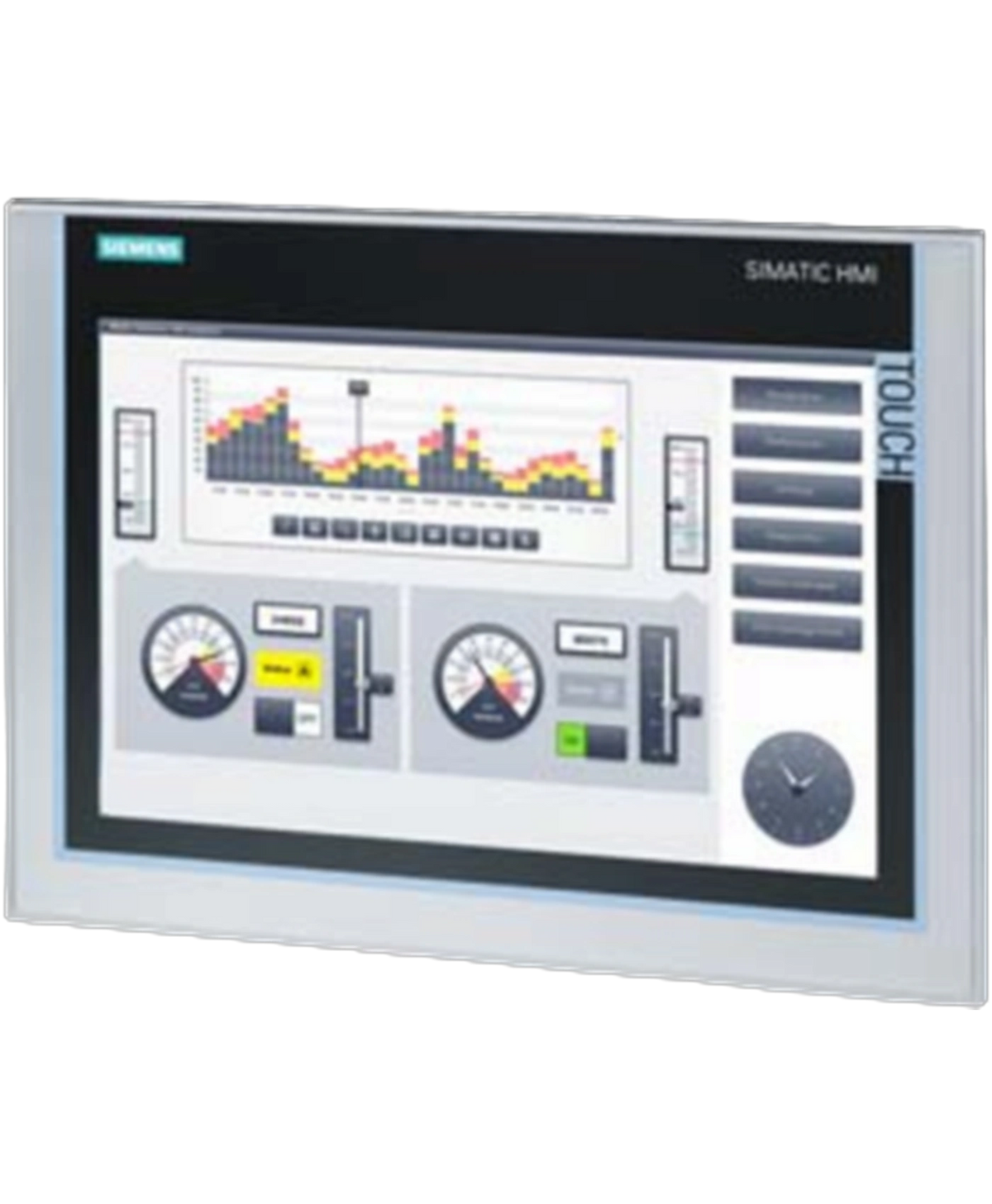

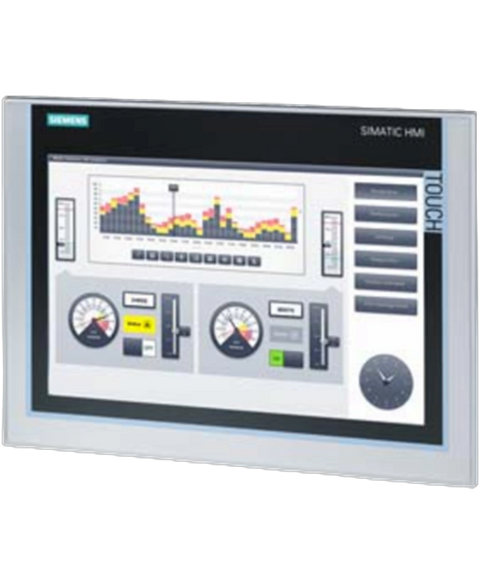

Product image for illustrative purposes only. Actual item may vary.
Siemens 6AV2124-0MC01-0AX0
Siemens TP1200 Comfort HMI, 12-inch TFT display, 1280x800, multi-interface.
This Siemens 6AV2124-0MC01-0AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26801438989.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,497.77
(AUD)
In Stock
| Product type designation | TP1200 Comfort |
| Design of display | TFT |
| Screen diagonal | 12.1 in |
| Display width | 261.1 mm |
| Display height | 163.2 mm |
| Number of colors | 16 777 216 |
| Horizontal image resolution | 1 280 pixel |
| Vertical image resolution | 800 pixel |
| MTBF backlighting (at 25 °C) | 80 000 h |
| Backlight dimmable | Yes; 0-100 % |
| — Number of function keys | 0 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | No |
| Numeric keyboard | Yes; Onscreen keyboard |
| alphanumeric keyboard | Yes; Onscreen keyboard |
| Design as touch screen | Yes; Analog-resistive |
| — F1...Fx | 0 |
| Direct keys (touch buttons as S7 input I/O) | 40 |
| Mounting position | vertical |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.85 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 20 W |
| Processor type | X86 |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 12 Mbyte |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Buzzer | No |
| Speaker | Yes |
| Hardware clock (real-time) | Yes |
| Software clock | Yes |
| retentive | Yes; Back-up duration typically 6 weeks |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1; 2 ports (switch) |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet status LED | 2 |
| Number of ports of the integrated switch | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | Yes |
| IRT | Yes; As of WinCC V12 |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| HTML | Yes |
| XML | Yes |
| CSS | Yes |
| Active X | Yes |
| JavaScript | Yes |
| Java VM | No |
| — MRP | Yes; As of WinCC V12 |
| CAN | No |
| MODBUS | Yes |
| Diagnostic information readable | Yes; S7 controller |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 301 kg |
| — global warming potential, (during production) [CO2 eq] | 81.2 kg |
| — global warming potential, (during operation) [CO2 eq] | 221 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -2.25 kg |
| ATEX Zone 2 | Yes |
| ATEX Zone 22 | Yes |
| IECEx Zone 2 | Yes |
| IECEx Zone 22 | Yes |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | Yes |
| FM Class I Division 2 | Yes |
| Germanischer Lloyd (GL) | Yes; As of product version: 10 |
| American Bureau of Shipping (ABS) | Yes; As of product version: 10 |
| Bureau Veritas (BV) | Yes; As of product version: 10 |
| Det Norske Veritas (DNV) | Yes; As of product version: 10 |
| Lloyds Register of Shipping (LRS) | Yes; As of product version: 10 |
| Nippon Kaiji Kyokai (Class NK) | Yes; As of product version: 10 |
| Polski Rejestr Statkow (PRS) | No |
| Suited for indoor use | Yes |
| Suited for outdoor use | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C; (55 °C, see entry ID: 64847814)40 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C35 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; no condensation |
| proprietary | No |
| Windows CE | Yes |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | No |
| STEP 7 Professional (TIA Portal) | No |
| WinCC flexible Compact | No |
| WinCC flexible Standard | No |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes; from V11 |
| WinCC Advanced (TIA Portal) | Yes; from V11 |
| WinCC Professional (TIA Portal) | Yes; from V11 |
| Number of online/runtime languages | 32 |
| Languages per project | 32 |
| Libraries | Yes |
| Web browser | Yes |
| Pocket Word | Yes |
| Pocket Excel | Yes |
| PDF Viewer | Yes |
| Media Player | Yes |
| SIMATIC WinCC Sm@rtServer | Yes |
| SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| time-controlled | Yes |
| task-controlled | Yes |
| Number of characters per info text | 70 |
| Number of alarm classes | 32 |
| Bit messages | Yes |
| — Number of bit messages | 4 000 |
| Analog messages | Yes |
| — Number of analog messages | 200 |
| S7 alarm number procedure | Yes |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| — Number of entries | 1 024 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 300 |
| Data records per recipe | 500 |
| Entries per data record | 1 000 |
| Size of internal recipe memory | 2 Mbyte |
| Recipe memory expandable | Yes |
| Number of variables per device | 2 048 |
| Number of variables per screen | 400 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | Yes |
| Arrays | Yes |
| Number of configurable images | 500 |
| Permanent window/default | Yes |
| Global image | Yes |
| Pop-up images | Yes |
| Slide-in images | Yes |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Number of objects per image | 400 |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 20 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | Yes |
| Sm@rtClient view | Yes |
| Recipe view | Yes |
| f(x) trend view | Yes |
| System diagnostics view | Yes |
| HTML browser | Yes |
| PDF display | Yes |
| IP camera display | Yes |
| Bar graphs | Yes |
| Sliders | Yes |
| Pointer instruments | Yes |
| Analog/digital clock | Yes |
| Number of text lists per project | 500 |
| Number of entries per text list | 500 |
| Number of graphics lists per project | 500 |
| Number of entries per graphics list | 500 |
| Number of archives per device | 50 |
| Number of entries per archive | 20 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| — Memory card | Yes |
| — USB memory | Yes |
| — Ethernet | Yes |
| — CSV | Yes |
| — TXT | Yes |
| — RDB | Yes |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | Yes |
| SIMATIC Logon | Yes |
| Alarms | Yes |
| Report (shift log) | Yes |
| Hardcopy | Yes |
| Electronic print to file | Yes; PDF, HTML |
| — US English | Yes |
| MPI/PROFIBUS DP | Yes |
| USB | Yes |
| Ethernet | Yes |
| using external storage medium | Yes |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| S7-300/400 | Yes |
| LOGO! | Yes |
| WinAC | Yes |
| SINUMERIK | Yes; with SINUMERIK option package |
| SIMOTION | Yes |
| Allen Bradley (EtherNet/IP) | Yes |
| Allen Bradley (DF1) | Yes |
| Mitsubishi (MC TCP/IP) | Yes |
| Mitsubishi (FX) | Yes |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus TCP/IP) | Yes |
| Modicon (Modbus) | Yes |
| OPC UA Client | Yes |
| OPC UA Server | Yes |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | Yes |
| Simulation | Yes |
| Device switchover | Yes |
| Printer | Yes |
| SIMATIC HMI MM memory card: Multi Media Card | Yes; Up to 128 MB |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes; Up to 2 GB |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes; Up to 16 GB |
| SIMATIC HMI USB stick | Yes; Up to 8 GB |
| Network camera | Yes |
| Plastic | No |
| Aluminum | Yes |
| Stainless steel | No |
| Width of the housing front | 330 mm |
| Height of housing front | 241 mm |
| Mounting cutout, width | 310 mm |
| Mounting cutout, height | 221 mm |
| mounting depth | 64 mm |
| Weight (without packaging) | 2.8 kg |
| Weight (with packaging) | 3.5 kg |
