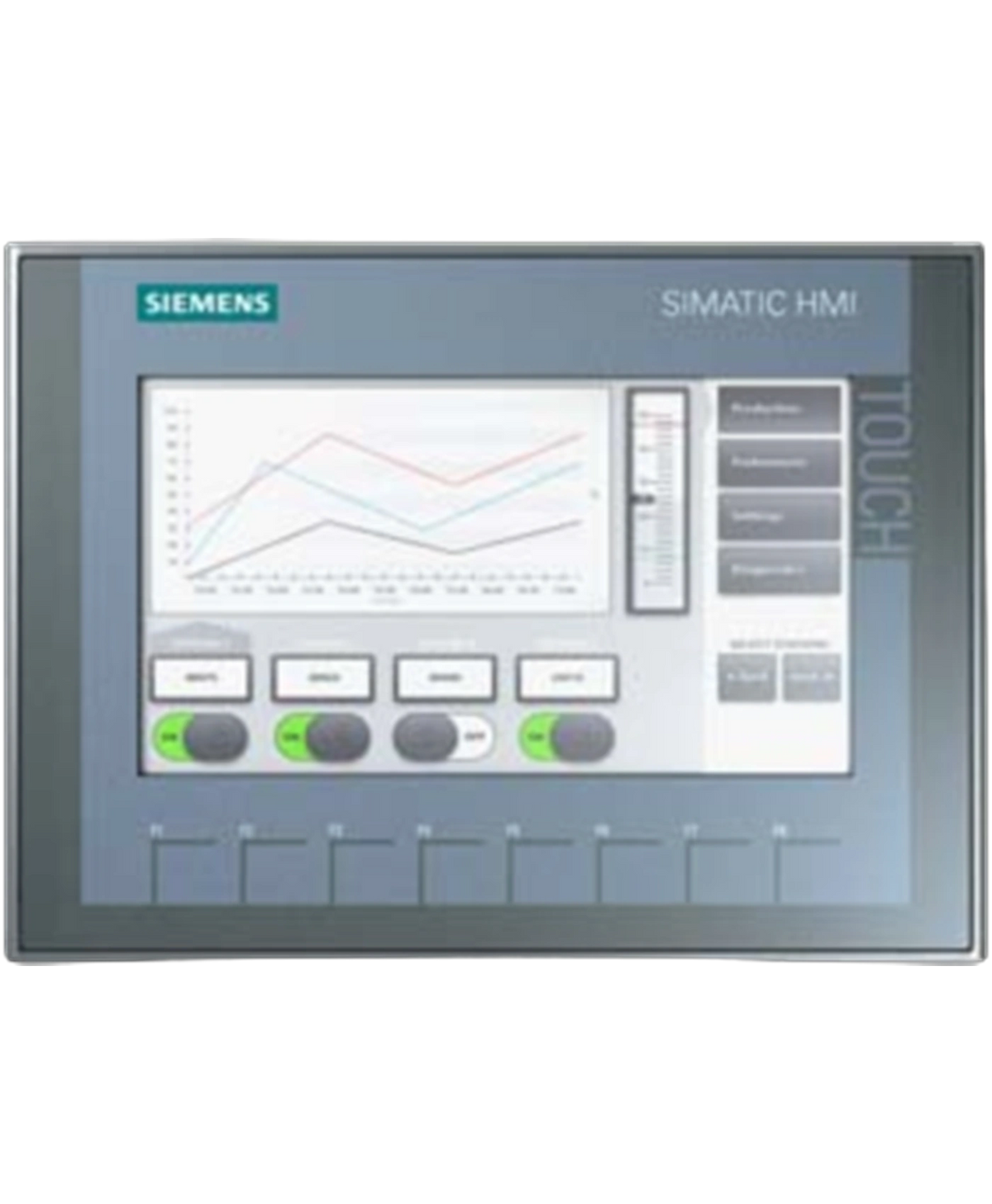

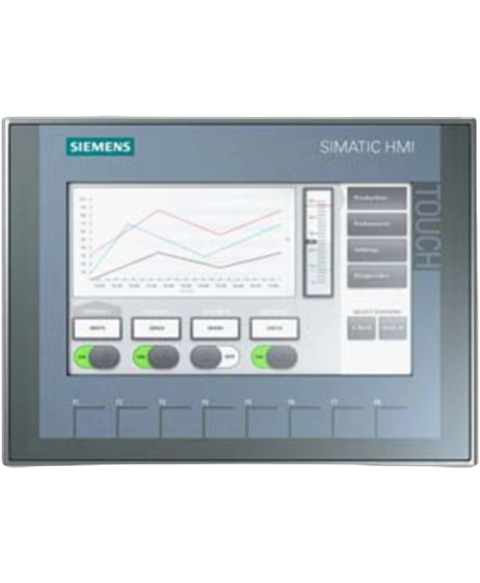

Siemens 6AV21232GA030AX0
SIMATIC HMI, KTP700 Basic DP, Basic Panel, Key,touch operation, 7 TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13, STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
This Siemens 6AV21232GA030AX0 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL27092700615.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$914.47
(AUD)
In Stock
| Product type designation | KTP700 Basic color DP |
| Design of display | TFT widescreen display, LED backlighting |
| Screen diagonal | 7 in |
| Display width | 154.1 mm |
| Display height | 85.9 mm |
| Number of colors | 65 536 |
| Horizontal image resolution | 800 pixel |
| Vertical image resolution | 480 pixel |
| MTBF backlighting (at 25 °C) | 20 000 h |
| Backlight dimmable | Yes |
| — Number of function keys | 8 |
| — Number of function keys with LEDs | 0 |
| Keys with LED | No |
| System keys | No |
| Numeric keyboard | Yes; Onscreen keyboard |
| alphanumeric keyboard | Yes; Onscreen keyboard |
| Design as touch screen | Yes; Analog-resistive |
| Mounting position | vertical |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 230 mA |
| Starting current inrush I²t | 0.2 A²·s |
| Active power input, typ. | 5.5 W |
| Processor type | ARM |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 10 Mbyte |
| Buzzer | Yes |
| Speaker | No |
| Hardware clock (real-time) | Yes |
| Software clock | Yes |
| retentive | Yes; Back-up duration typically 6 weeks |
| synchronizable | Yes |
| Number of industrial Ethernet interfaces | 0 |
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1; together with RS 485 |
| Number of RS 232 interfaces | 0; with optional adapter |
| Number of USB interfaces | 1; Up to 16 GB |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| Industrial Ethernet status LED | 0 |
| PROFINET | No |
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| MPI | Yes |
| TCP/IP | No |
| DHCP | No |
| SNMP | No |
| DCP | No |
| LLDP | No |
| HTTP | No |
| HTML | No |
| — MRP | No |
| CAN | No |
| MODBUS | Yes; Modicon (MODBUS RTU) |
| Diagnostic information readable | No |
| Limit class A, for use in industrial areas | Yes |
| Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 85 kg |
| — global warming potential, (during production) [CO2 eq] | 26.2 kg |
| — global warming potential, (during operation) [CO2 eq] | 59.2 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.682 kg |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| IECEx Zone 2 | No |
| IECEx Zone 22 | No |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | No |
| FM Class I Division 2 | No |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| Chinese Classification Society (CCS) | No |
| Suited for indoor use | Yes |
| Suited for outdoor use | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 50 °C40 °C |
| — At maximum tilt angle, min. | 0 °C |
| — At maximum tilt angle, max. | 40 °C35 °C |
| min. | -20 °C |
| max. | 60 °C |
| Operation, max. | 90 %; no condensation |
| proprietary | Yes |
| Windows CE | No |
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| WinCC flexible Compact | No |
| WinCC flexible Standard | No |
| WinCC flexible Advanced | No |
| WinCC Basic (TIA Portal) | Yes |
| WinCC Comfort (TIA Portal) | Yes |
| WinCC Advanced (TIA Portal) | Yes |
| WinCC Professional (TIA Portal) | Yes |
| Number of online/runtime languages | 10 |
| Languages per project | 32 |
| Libraries | Yes |
| Web browser | No |
| SIMATIC WinCC Sm@rtServer | No |
| Number of Visual Basic Scripts | No |
| Task planner | Yes |
| time-controlled | No |
| task-controlled | Yes |
| Help system | Yes |
| Number of characters per info text | 500 |
| Number of alarm classes | 32 |
| — Number of bit messages | 1 000 |
| — Number of analog messages | 25 |
| S7 alarm number procedure | No |
| System messages HMI | Yes |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| Number of characters per message | 80 |
| Number of process values per message | 8 |
| Acknowledgment groups | Yes |
| — Number of entries | 256 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| Number of recipes | 50 |
| Data records per recipe | 100 |
| Entries per data record | 100 |
| Size of internal recipe memory | 256 kbyte |
| Recipe memory expandable | No |
| Number of variables per device | 800 |
| Number of variables per screen | 100 |
| Limit values | Yes |
| Multiplexing | Yes |
| Structures | No |
| Arrays | Yes |
| Number of configurable images | 250 |
| Permanent window/default | Yes |
| Global image | Yes |
| Pop-up images | No |
| Slide-in images | No |
| Image selection by PLC | Yes |
| Image number in the PLC | Yes |
| Number of objects per image | 100 |
| Text fields | Yes |
| I/O fields | Yes |
| Graphic I/O fields (graphics list) | Yes |
| Symbolic I/O fields (text list) | Yes |
| Date/time fields | Yes |
| Switches | Yes |
| Buttons | Yes |
| Graphic display | Yes |
| Icons | Yes |
| Geometric objects | Yes |
| Number of complex objects per screen | 10 |
| Alarm view | Yes |
| Trend view | Yes |
| User view | Yes |
| Status/control | No |
| Sm@rtClient view | No |
| Recipe view | Yes |
| f(x) trend view | No |
| System diagnostics view | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| Media Player | No |
| HTML browser | No |
| PDF display | No |
| IP camera display | No |
| Bar graphs | Yes |
| Sliders | No |
| Pointer instruments | No |
| Analog/digital clock | No |
| Number of text lists per project | 300 |
| Number of entries per text list | 100 |
| Number of graphics lists per project | 100 |
| Number of entries per graphics list | 100 |
| Number of archives per device | 2; One message and one process value archive |
| Number of entries per archive | 10 000 |
| Message archive | Yes |
| Process value archive | Yes |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| — Memory card | No |
| — USB memory | Yes |
| — Ethernet | No |
| — CSV | No |
| — TXT | Yes |
| — RDB | No |
| Number of user groups | 50 |
| Number of user rights | 32 |
| Number of users | 50 |
| Password export/import | Yes |
| SIMATIC Logon | No |
| — US English | Yes |
| MPI/PROFIBUS DP | Yes |
| USB | No |
| Ethernet | No |
| using external storage medium | Yes |
| S7-1200 | Yes |
| S7-1500 | Yes |
| S7-200 | Yes |
| S7-300/400 | Yes |
| LOGO! | Yes |
| WinAC | Yes |
| SINUMERIK | Yes; No access to NCK data |
| SIMOTION | Yes |
| Allen Bradley (EtherNet/IP) | No |
| Allen Bradley (DF1) | Yes |
| Mitsubishi (MC TCP/IP) | No |
| Mitsubishi (FX) | Yes |
| OMRON (FINS TCP) | No |
| OMRON (LINK/Multilink) | Yes |
| Modicon (Modbus TCP/IP) | No |
| Modicon (Modbus) | Yes |
| Backup/Restore manually | Yes |
| Backup/Restore automatically | No |
| Simulation | Yes |
| Device switchover | Yes |
| Printer | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
| Plastic | Yes |
| Aluminum | No |
| Stainless steel | No |
| Width of the housing front | 214 mm |
| Height of housing front | 158 mm |
| Mounting cutout, width | 198 mm |
| Mounting cutout, height | 142 mm |
| mounting depth | 39 mm |
| Weight (without packaging) | 800 g |
| Weight (with packaging) | 1 kg |
