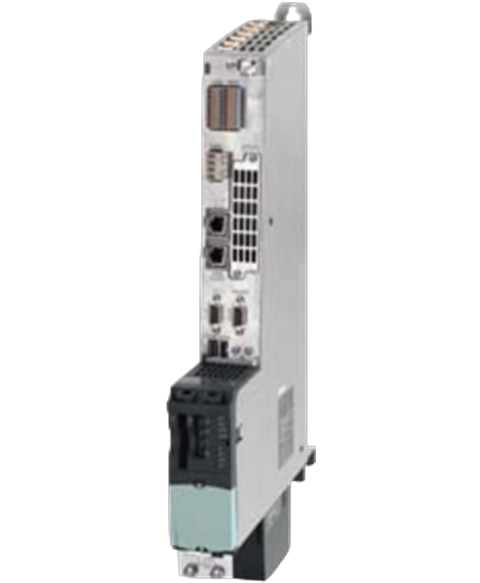

Siemens 6AU14450AA000AA0
SIMOTION DRIVE-BASED CONTROL UNIT D445; PROGRAMMABLE MOTION CONTROLLER; HIGH PERFORMANCE; INTERFACES: 8 DI, 8 DI,DO, 6 DRIVE-CLIQ, 2 PROFIBUS, 2 ETHERNET, 2 USB, 1 OPTION SLOT; INCL. FAN , BATTERY MODULE AND BATTERY
This Siemens 6AU14450AA000AA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Motion control range and is referenced internally as PartLogic SKU PL27091087966.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIMOTION |
| product type designation | D445 |
| Performance class for motion control system | HIGH Performance |
| Version of the motion control system | Multiple-axis system |
| number of axes / maximum | 64 |
| Minimum PROFIBUS cycle clock | 1 ms |
| Minimum PROFINET send cycle clock | 0.5 ms |
| Minimum interpolator cycle clock | 0.5 ms |
| Minimum servo cycle clock | 0.5 ms |
| servo | 6 |
| vector | 4 |
| V/f | 8 |
| note | Alternative control modes; drive control based on SINAMICS S120 CU320, firmware version V2.xwith no load on inputs/outputs, no 24 V supply via DRIVE-CLiQ and PROFIBUS interfaceYes, in groups of 4longer buffer duration of the retentive data and the real-time clock using a battery inserted in the fan/battery module |
| RAM (work memory) | 96 Mbyte |
| Additional RAM work memory for Java applications | 20 Mbyte |
| RAM disk (load memory) | 47 Mbyte |
| Retentive memory | 364 kbyte |
| Persistent memory (user data on CF) | 300 Mbyte |
| DRIVE-CLiQ | 6 |
| USB | 2 |
| Industrial Ethernet | 2 |
| PROFIBUS | 2 |
| — note | Equidistant and isochronous; Can be configured as master or slaveOptional via CBE30; 1 interface with 4 ports; supports PROFINET IO with IRT and RT; configurable as a PROFINET IO controller and/or deviceMaximum 5000 m (16405 ft) above sea level. Above an altitude of 2000 m (6562 ft), the max. ambient temperature decreases by 7 °C (12.6 °F) every 1000 m (3281 ft).Data for Vcc = 24 V; load 48 Ohm; "1" = 90 % VOut, "0" = 10 % VOut |
| PROFINET | 0 |
| Fan | Fan/battery module (single fan) included in scope of delivery |
| rated value | 24 V |
| minimum | 20.4 V |
| maximum | 28.8 V |
| consumed current / typical | 2 000 mA |
| Making current, typ. | 6 A |
| Power loss, typ. | 48 W |
| storage | -40 ... +70 °C |
| transport | -40 ... +70 °C |
| operation | 0 ... 55 °C |
| during operation | 5 ... 95 % |
| without condensation, tested acc. to IEC 60068-2-38 | Wert fehlt |
| Air pressure | 700 ... 1 060 hPa |
| Degree of protection | IP20 / UL open type |
| height | 380 mm |
| width | 50 mm |
| depth | 270 mm |
| net weight | 4 300 g |
| number of digital inputs | 8 |
| for signal "1" | 15 ... 30 V |
| for signal "0" | -3 ... +5 V |
| Electrical isolation | YesNo |
| Current consumption for "1" signal level, typ. | 10 mA |
| signal "0" → "1", typ. | 50 µs5 µs150 µs |
| signal "1" → "0", typ. | 150 µs50 µs75 µs |
| Number of digital I/Os | 8 |
| Parameterization possibility of the digital I/Os | parameterizable as DI, as DO, as measuring input input (max. 6), as output of output cam (max. 8) |
| Measuring input / reproducibility | 5 µs |
| Current carrying capacity for each output, max. | 500 mA |
| Leakage current, max. | 2 mA |
| signal "0" → "1", max. | 400 µs |
| signal "1" → "0", max. | 100 µs |
| reproducibility | 125 µs |
| resistive load, max. | 100 Hz |
| inductive load, max. | 2 Hz |
| lamp load, max. | 11 Hz |
| Short-circuit protection | Yes |
| of retentive data | at least 5 days |
| of real-time clock, min. | 5 d |
| USA | cULus |
| Canada | cULus |
| Australia | RCM (formerly C-Tick) |
