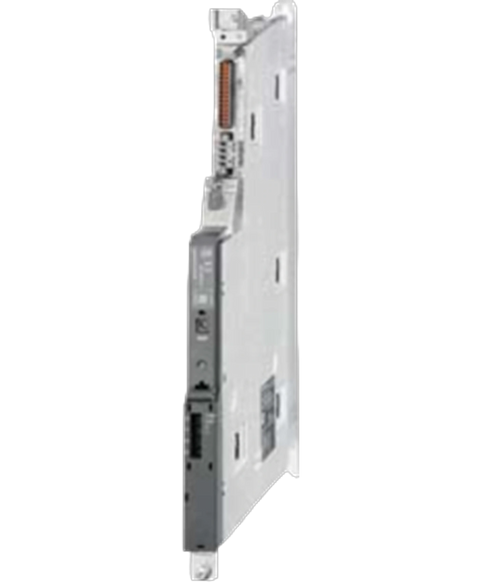

Siemens 6AU1432-2AA00-0AA0
The Siemens 6AU1432-2AA00-0AA0 is an inverter control module designed for use within the SIMOTION series. It features multiple interfaces and supports real-time data exchange, enhancing control in automation applications.
This Siemens 6AU1432-2AA00-0AA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Motion control range and is referenced internally as PartLogic SKU PL26805413711.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIMOTION |
| product type designation | CX32-2 |
| Version of the motion control system | Controller Extension |
| servo | 6 |
| vector | 6 |
| V/f | 12 |
| note | Alternative control modes; drive control based on SINAMICS S120 CU320-2, firmware version V4.x/V5.xwith no load on inputs/outputs, no 24 V supply via DRIVE-CLiQ interfaceYes, in groups of 6 |
| DRIVE-CLiQ | 4 |
| Fan | No fan |
| rated value | 24 V |
| minimum | 20.4 V |
| maximum | 28.8 V |
| consumed current / typical | 300 mA |
| Making current, typ. | 1.6 A |
| Power loss, typ. | 7 W |
| long-term storage | -25 ... +55 °C |
| transport | -40 ... +70 °C |
| operation | 0 ... 55 °C |
| — note | Maximum installation altitude 4000 m (13124 ft) above sea level. Above an altitude of 2000 m (6562 ft), the maximum ambient temperature decreases by 7 °C (12.6 °F) per 1000 m (3281 ft).Data for Vcc = 24 V; load 48 Ohm; "1" = 90 % VOut, "0" = 10 % VOut |
| during operation | 5 ... 95 % |
| without condensation, tested acc. to IEC 60068-2-38 | Wert fehlt |
| Air pressure | 620 ... 1 060 hPa |
| Degree of protection | IP20 / UL open type |
| height | 380 mm |
| width | 25 mm |
| depth | 270 mm |
| Depth / Note | When the spacer is removed 230 mm (9.05 in) deep |
| net weight | 2 600 g |
| number of digital inputs | 6 |
| for signal "1" | 15 ... 30 V |
| for signal "0" | -3 ... +5 V |
| Electrical isolation | YesNo |
| Current consumption for "1" signal level, typ. | 3.5 mA |
| signal "0" → "1", typ. | 50 µs5 µs150 µs |
| signal "1" → "0", typ. | 150 µs50 µs75 µs |
| Number of digital I/Os | 4 |
| Parameterization possibility of the digital I/Os | parameterizable as DI, as DO, as probe input (max. 4) |
| Measuring input / reproducibility | 5 µs |
| Measuring input / resolution | 1 µs |
| Current carrying capacity for each output, max. | 500 mA |
| Leakage current, max. | 2 mA |
| signal "0" → "1", max. | 400 µs |
| signal "1" → "0", max. | 100 µs |
| resistive load, max. | 4 kHz |
| inductive load, max. | 2 Hz |
| lamp load, max. | 11 Hz |
| Short-circuit protection | Yes |
| of retentive data | unlimited buffer duration |
| USA | cULus |
| Canada | cULus |
| Australia | RCM (formerly C-Tick) |
| Korea | KCC |
| Russia, Belarus and Kazakhstan | EAC |
