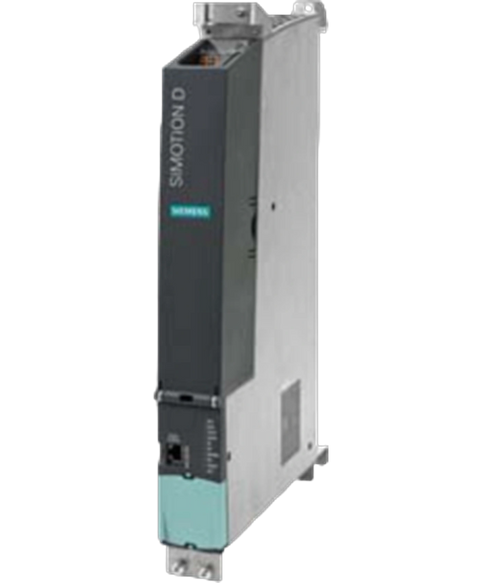

Siemens 6AU1425-2AD00-0AA0
Siemens offers the 6AU1425-2AD00-0AA0, a versatile motion control module designed to cater to various automation needs. With its programmable capabilities and extensive interface options, this module ensures smooth operation in industrial settings.
This Siemens 6AU1425-2AD00-0AA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Motion control range and is referenced internally as PartLogic SKU PL26805430498.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIMOTION |
| product type designation | D425-2 DP/PN |
| Performance class for motion control system | BASIC Performance |
| Version of the motion control system | Multiple-axis system |
| number of axes / maximum | 16 |
| Minimum PROFIBUS cycle clock | 1 ms |
| Minimum PROFINET send cycle clock | 0.25 ms |
| Minimum interpolator cycle clock | 0.5 ms |
| Minimum servo cycle clock | 0.5 ms |
| servo | 6 |
| vector | 6 |
| V/f | 12 |
| note | Alternative control modes; drive control based on SINAMICS S120 CU320-2, firmware version V4.x/V5.xwith no load on inputs/outputs, no 24 V supply via DRIVE-CLiQ and PROFIBUS interfaceYes, in groups of 6longer buffer duration of the real-time clock using a battery inserted in the double fan/battery module |
| RAM (work memory) | 78 Mbyte |
| Additional RAM work memory for Java applications | 20 Mbyte |
| RAM disk (load memory) | 38 Mbyte |
| Retentive memory | 364 kbyte |
| Persistent memory (user data on CF) | 1.5 Gbyte |
| DRIVE-CLiQ | 4 |
| USB | 2 |
| Industrial Ethernet | 2 |
| PROFIBUS | 2 |
| — note | Equidistant and isochronous; Can be configured as master or slave1 interface with 3 ports onboard; 1 interface with 4 ports optional via CBE30-2; functionality: supports PROFINET IO with IRT and RT; configurable as PROFINET IO Controller and/or Device; supports media redundancy (MRP and MRPD)Maximum installation altitude 4000 m (13124 ft) above sea level. Above an altitude of 2000 m (6562 ft), the maximum ambient temperature decreases by 7 °C (12.6 °F) per 1000 m (3281 ft).Data for Vcc = 24 V; load 48 Ohm; "1" = 90 % VOut, "0" = 10 % VOut |
| PROFINET | 1 |
| Fan | Double fan/battery module included in scope of delivery |
| rated value | 24 V |
| minimum | 20.4 V |
| maximum | 28.8 V |
| consumed current / typical | 1 000 mA |
| Making current, typ. | 5 A |
| Power loss, typ. | 24 W |
| long-term storage | -25 ... +55 °C |
| transport | -40 ... +70 °C |
| operation | 0 ... 55 °C |
| during operation | 5 ... 95 % |
| without condensation, tested acc. to IEC 60068-2-38 | Wert fehlt |
| Product property / Conformal coating | No |
| to biologically active substances, / conformity acc. to EN 60721-3-3 | No |
| to chemically active substances, / conformity acc. to EN 60721-3-3 | No |
| Air pressure | 620 ... 1 060 hPa |
| Degree of protection | IP20 / UL open type |
| height | 380 mm |
| width | 50 mm |
| depth | 270 mm |
| Depth / Note | When the spacer is removed 230 mm (9.05 in) deep |
| net weight | 3 700 g |
| number of digital inputs | 12 |
| for signal "1" | 15 ... 30 V |
| for signal "0" | -3 ... +5 V |
| Electrical isolation | YesNo |
| Current consumption for "1" signal level, typ. | 9 mA |
| signal "0" → "1", typ. | 50 µs5 µs150 µs |
| signal "1" → "0", typ. | 150 µs50 µs75 µs |
| Number of digital I/Os | 16 |
| Parameterization possibility of the digital I/Os | can be parameterized - as DI - as DO - as probe input (max. 16) - as cam output (max. 8) |
| Measuring input / reproducibility | 5 µs |
| Measuring input / resolution | 1 µs |
| Current carrying capacity for each output, max. | 500 mA |
| Leakage current, max. | 2 mA |
| signal "0" → "1", max. | 400 µs |
| signal "1" → "0", max. | 150 µs |
| reproducibility | 10 µs |
| resolution | 1 µs |
| resistive load, max. | 4 kHz |
| inductive load, max. | 2 Hz |
| lamp load, max. | 11 Hz |
| Short-circuit protection | Yes |
| of retentive data | unlimited buffer duration |
| of real-time clock, min. | 4 d |
| USA | cULus |
| Canada | cULus |
| Australia | RCM (formerly C-Tick) |
| Korea | KCC |
| Russia, Belarus and Kazakhstan | EAC |
