Siemens 6AG1332-5HF00-2AB0

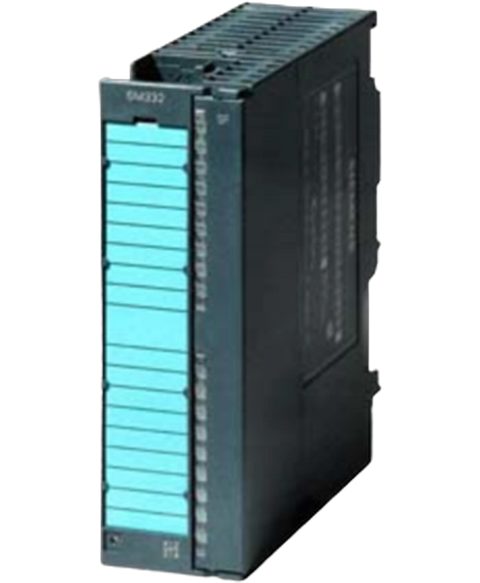

Siemens 6AG13325HF002AB0 SIPLUS S7-300 analogue output module, 8AO.
This Siemens 6AG1332-5HF00-2AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26846479468.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,241.07
(inc. GST)
In Stock
| based on | 6ES7332-5HF00-0AB0 |
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 340 mA |
| from backplane bus 5 V DC, max. | 100 mA |
| Power loss, typ. | 6 W |
| Number of analog outputs | 8; 4 @ +70 °C |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 25 mA |
| Current output, no-load voltage, max. | 18 V |
| 0 to 10 V | Yes |
| 1 V to 5 V | Yes |
| -10 V to +10 V | Yes |
| 0 to 20 mA | Yes |
| -20 mA to +20 mA | Yes |
| 4 mA to 20 mA | Yes |
| with voltage outputs, min. | 1 kΩ |
| with voltage outputs, capacitive load, max. | 1 µF |
| with current outputs, max. | 500 Ω |
| with current outputs, inductive load, max. | 10 mH |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit |
| Conversion time (per channel) | 0.8 ms |
| for resistive load | 0.2 ms |
| for capacitive load | 3.3 ms |
| for inductive load | 0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH) |
| Voltage, relative to output range, (+/-) | 0.5 %; ±0.6 % @ < 0 °C or > 60 °C0.4 % |
| Current, relative to output range, (+/-) | 0.6 %; ±0.7 % @ < 0 °C or > 60 °C0.5 % |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 500 V DC |
| CE mark | Yes |
| UL approval | Yes; File E239877 |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| EN 50121-4 | No |
| EN 50155 | No |
| min. | -25 °C-40 °C |
| max. | 70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use70 °C |
| Installation altitude above sea level, max. | 5 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| required front connector | 40-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 272 g |
