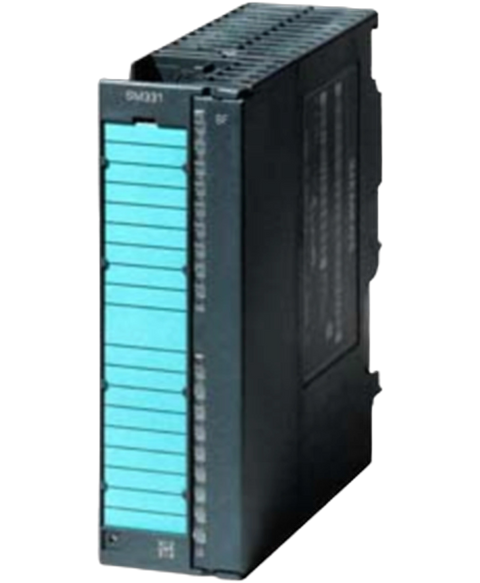

Siemens 6AG13317NF002AB0 SIPLUS S7-300 analogue input module, 8AI.

This Siemens 6AG1331-7NF00-2AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26846471884.

Brand New - 12 Months Warranty
$1,283.67 (inc. GST)
In Stock

Datasheet

based on 6ES7331-7NF00-0AB0
from backplane bus 5 V DC, max. 130 mA
Power loss, typ. 0.6 W
Number of analog inputs 8
permissible input voltage for voltage input (destruction limit), max. 50 V; Permanent
permissible input current for current input (destruction limit), max. 32 mA
Voltage Yes
Current Yes
Thermocouple No
Resistance thermometer No
Resistance No
0 to +10 V No
1 V to 5 V Yes
— Input resistance (1 V to 5 V) 2 MΩ
1 V to 10 V No
-1 V to +1 V No
-10 V to +10 V Yes
— Input resistance (-10 V to +10 V) 2 MΩ
-2.5 V to +2.5 V No
-250 mV to +250 mV No
-5 V to +5 V Yes
— Input resistance (-5 V to +5 V) 2 MΩ
-50 mV to +50 mV No
-500 mV to +500 mV No
-80 mV to +80 mV No
0 to 20 mA Yes
— Input resistance (0 to 20 mA) 250 Ω
-20 mA to +20 mA Yes
— Input resistance (-20 mA to +20 mA) 250 Ω
-3.2 mA to +3.2 mA No
4 mA to 20 mA Yes
— Input resistance (4 mA to 20 mA) 250 Ω
Type B No
Type C No
Type E No
Type J No
Type K No
Type L No
Type N No
Type R No
Type S No
Type T No
Type U No
Type TXK/TXK(L) to GOST No
Cu 10 No
Ni 100 No
Ni 1000 No
LG-Ni 1000 No
Ni 120 No
Ni 200 No
Ni 500 No
Pt 100 No
Pt 1000 No
Pt 200 No
Pt 500 No
0 to 150 ohms No
0 to 300 ohms No
0 to 600 ohms No
0 to 6000 ohms No
shielded, max. 200 m
Resolution with overrange (bit including sign), max. 16 bit; Unipolar: 15/15/15/15 bit; bipolar: 15 bit + sign/15 bit + sign/15 bit + sign/15 bit + sign
Integration time, parameterizable Yes; 10/ 16.67/ 20/ 100 ms
Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 / 10 Hz
for voltage measurement Yes
for current measurement as 2-wire transducer Yes; with external transmitter; possible with separate supply for transmitter
for current measurement as 4-wire transducer Yes
Voltage, relative to input range, (+/-) 0.1 %; @ Ucm = 0 V; @ Ucm = ±50 V: ±0.7 % - @ 0 ... +60 °C; ±0.5 % @ Ucm = 0 V; @ Ucm = ±50 V: ±0.9 % - @ -25 ... +70 °C;0.05 %
Current, relative to input range, (+/-) 0.3 %; @ Ucm = 0 V; @ Ucm = ±50 V: ±0.4 % @ 0 ... +60 °C; ±0.5% @ Ucm = 0 V; @ Ucm = ±50 V: ±0.6% @ -25 ... +70 °C0.05 %
Diagnostics function Yes; Parameterizable
Diagnostic alarm Yes; Parameterizable
Limit value alarm Yes; Parameterizable, channels 0 and 2
Diagnostic information readable Yes
Group error SF (red) Yes
between the channels No
between the channels, in groups of 2
between the channels and backplane bus Yes
Isolation tested with 500 V DC
CE mark Yes
UL approval Yes; File E239877
RCM (formerly C-TICK) Yes
KC approval Yes
EAC (formerly Gost-R) Yes
EN 50155 Yes; Sections 4, 5 and 12; no further agreements apply; T1, Category 1, Class A/B, EN 50155:2007 (see SIOS entry 109755985)
min. -25 °C; = Tmin-40 °C
max. 70 °C; = Tmax; for use on railway vehicles according to EN 50155, the rated temperature range -25 ... +55 °C (T1) or 60 °C @ UL/UL hazardous use applies70 °C
Installation altitude above sea level, max. 5 000 m
Ambient air temperature-barometric pressure-altitude Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
With condensation, tested in accordance with IEC 60068-2-38, max. 100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
— to biologically active substances according to EN 60721-3-3 Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to chemically active substances according to EN 60721-3-3 Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3 Yes; Class 3S4 incl. sand, dust, *
— to biologically active substances according to EN 60721-3-5 Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request
— to chemically active substances according to EN 60721-3-5 Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 50155 (ST2); *
— to mechanically active substances according to EN 60721-3-5 Yes; Class 5S3 incl. sand, dust; *
— to biologically active substances according to EN 60721-3-6 Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
— to chemically active substances according to EN 60721-3-6 Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6 Yes; Class 6S3 incl. sand, dust; *
— Against chemically active substances acc. to EN 60654-4 Yes; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 * The supplied plug covers must remain in place over the unused interfaces during operation!
required front connector 40-pin
Width 40 mm
Height 125 mm
Depth 117 mm
Weight, approx. 272 g
