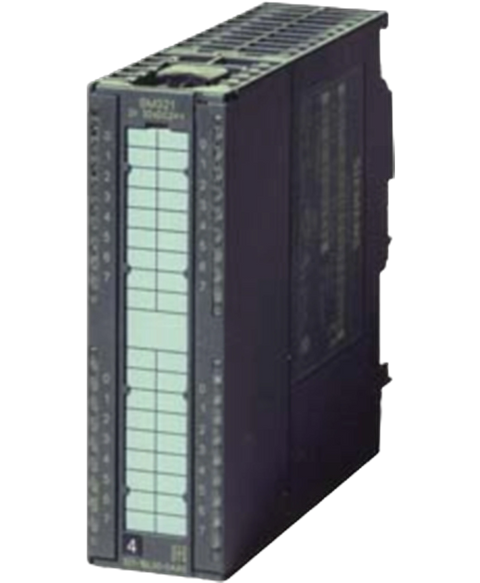

Siemens 6AG1321-7BH01-2AB0
Siemens 6AG13217BH012AB0 SIPLUS S7-300 digital input module, 16DI, 24VDC.
This Siemens 6AG1321-7BH01-2AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26846486703.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,055.05
(inc. GST)
In Stock
| based on | 6ES7321-7BH01-0AB0 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 90 mA |
| from backplane bus 5 V DC, max. | 130 mA |
| Number of outputs | 2 |
| Type of output voltage | L+ (-2.5 V) |
| Short-circuit protection | Yes; Electronic |
| additional (redundant) feed | Yes |
| Rated value | 120 mA |
| permissible range, lower limit | 0 mA |
| permissible range, upper limit | 150 mA |
| Power loss, typ. | 4 W |
| Number of digital inputs | 16 |
| Input characteristic curve in accordance with IEC 61131, type 2 | Yes |
| — up to 60 °C, max. | 16 |
| — up to 40 °C, max. | 16 |
| Type of input voltage | DC |
| for signal "0" | -30 to +5 V |
| for signal "1" | 13 to 30V |
| for signal "1", typ. | 7 mA |
| — parameterizable | Yes; 0.1 / 0.5 / 3 / 15 / 20 ms |
| Fixed current limitation for wire-break monitoring, min. | 10 kΩ |
| Fixed current limitation for wire-break monitoring, max. | 18 kΩ |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 2 mA |
| Alarms | Yes |
| Diagnostics function | Yes; Parameterizable |
| Diagnostic alarm | Yes; Parameterizable |
| Hardware interrupt | Yes; Parameterizable |
| Diagnostic information readable | Yes |
| Wire-break | Yes; to I< 1 mA |
| Group error SF (red) | Yes |
| Status indicator digital input (green) | Yes |
| Encoder supply Vs (green) | Yes |
| between the channels | No |
| between the channels, in groups of | 16 |
| between the channels and backplane bus | Yes; Optocoupler |
| Isolation tested with | 500 V DC |
| CE mark | Yes |
| UL approval | Yes; File E239877 |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| EN 50155 | Yes; Sections 4, 5 and 12; no further agreements apply; T1, Category 1, Class A/B, EN 50155:2007 (see SIOS entry 109755985) |
| min. | -25 °C; = Tmin-40 °C |
| max. | 70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use70 °C |
| Installation altitude above sea level, max. | 5 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| — to biologically active substances according to EN 60721-3-5 | Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request |
| — to chemically active substances according to EN 60721-3-5 | Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 50155 (ST2); * |
| — to mechanically active substances according to EN 60721-3-5 | Yes; Class 5S3 incl. sand, dust; * |
| — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| required front connector | 20-pin |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight, approx. | 200 g |
