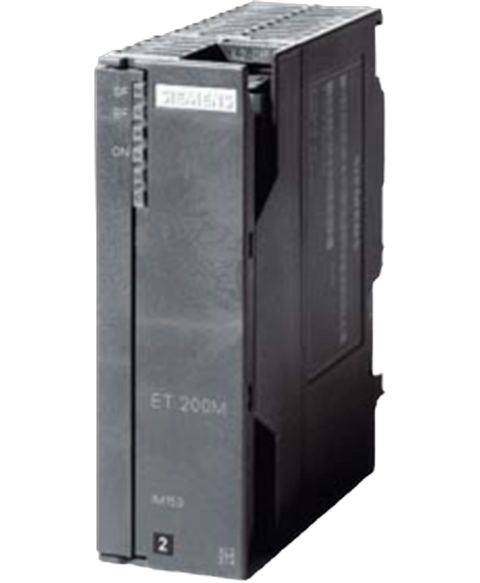

Siemens 6AG11531AA032XB0
SIPLUS DP ET200M IM153-1 -40+70 DGR C START UP TEMP -25 DGR C WITH CONFORMAL COATING BASED ON 6ES7153-1AA03-0XB0 . INTERFACE FOR ET 200M, FOR MAX. 8 S7-300 MODULES
This Siemens 6AG11531AA032XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27091068016.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 153-1 DP ST |
| Vendor identification (VendorID) | 801Dh |
| based on | 6ES7153-1AA03-0XB0 |
| STEP 7 configurable/integrated from version | see entry ID: 109746275 |
| Rated value (DC) | 24 V5 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | not necessary |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption, max. | 350 mA; At 24 V DC |
| Inrush current, typ. | 2.5 A |
| I²t | 0.1 A²·s |
| for backplane bus (5 V DC), max. | 1 A |
| Power loss, typ. | 3 W |
| Inputs | 128 byte |
| Outputs | 128 byte |
| number of modules per DP device interface, max. | 8 |
| Transmission procedure | RS 485 |
| Transmission rate, max. | 12 Mbit/s |
| automatic detection of transmission rate | Yes |
| Output current of the interface, max. | 90 mA |
| Design of the connection | 9-pin sub D socket |
| GSD file | (for DPV1) SIEM801D.GSD; SI01801D.GSG |
| automatic baud rate search | Yes |
| Bus protocol/transmission protocol | PROFIBUS DP to EN 50170 |
| TCP/IP | No |
| Number of node addresses, max. | 1 to 125 permitted |
| — SYNC capability | Yes |
| — FREEZE capability | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes; Sender |
| Potential separation exists | Yes |
| Isolation tested with | Isolation voltage 500 V |
| IP degree of protection | IP20 |
| min. | -40 °C; = Tmin-40 °C |
| max. | 70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use70 °C |
| At cold restart, min. | -25 °C |
| Installation altitude above sea level, max. | 5 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| STEP 7 | STEP 7 / COM PROFIBUS / non-Siemens tools via GSD file |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 360 g |
