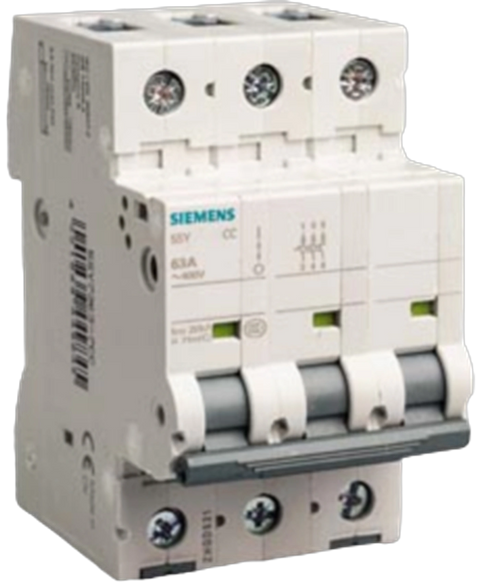

Siemens 5SY63068CC
This Siemens 5SY63068CC is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL27091056797.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 3 |
| design of pole | 3P |
| tripping characteristic class | D |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| with multi-phase operation at AC rated value | 440 V |
| — at 40 °C rated value | 5.51 A |
| — at 50 °C rated value | 4.97 A |
| — at 55 °C rated value | 4.69 A |
| operational current at AC rated value | 6 A |
| at AC | 400 V |
| at DC rated value | 60 V |
| value range of the supply voltage frequency | 50/60 Hz |
| operating voltage at DC rated value maximum | 72 V |
| supply voltage frequency rated value | 50/60 Hz |
| protection class IP | IP20, with connected conductors |
| according to EN 60898 rated value | 6 kA |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 1.2 W |
| suitability for operation | Infrastructure / Industry |
| product feature touch protection | Yes |
| combined terminal top | Yes |
| combined terminal bottom | Yes |
| neutral conductor switching | No |
| product feature properties for main switches in accordance with EN 60204-1 | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
| minimum | 0.75 mm²22 lbf·in2.5 N·m-25 °C-40 °C |
| maximum | 35 mm²25 mm²31 lbf·in3.5 N·m55 °C75 °C |
| position of power supply cord | Any |
| height | 90 mm |
| width | 54 mm |
| depth | 76 mm |
| installation depth | 70 mm |
| number of modular width units | 3 |
| fastening method | DIN rail |
| mounting position | any |
| Net Weight | 0.48 kg |
| influence of the surrounding temperature | max. 95% RH up to 55°C |
| standard | IEC / EN 60898-1 |
| vibration resistance according to IEC 60068-2-6 | ±1mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz and 60 m/s² at 35 Hz (4 sec) |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
| global warming potential [CO2 eq] / during manufacturing | 1.51 kg |
| global warming potential [CO2 eq] / during operation | 16.1 kg |
| global warming potential [CO2 eq] / after end of life | 0.00221 kg |
| global warming potential [CO2 eq] / total | 17.7 kg |
